VR
| Model | Jaw stroke (mm) | Max.Chucking Dia (mm) | Max. clamping force kN (kgf) Pneumatic | Max. clamping force kN (kgf) Hydraulic | Max. pressure MPa(kgf/cm2) Pneumatic | Max. pressure MPa(kgf/cm2) Hydraulic | Weight (kg) |
|---|---|---|---|---|---|---|---|
| VR-808 | 8 | 100 | 2.0(200) | 20.0(2040) | 0.9(9) | 7(70) | 3.55 |
| VR-1012 | 12 | 120 | 4.4(448) | 30.7(3130) | 0.9(9) | 4(40) | 7 |
| VR-1214 | 14 | 160 | 8.6(876) | 60.6(6180) | 0.9(9) | 4(40) | 12 |
* Subject to technical changes.

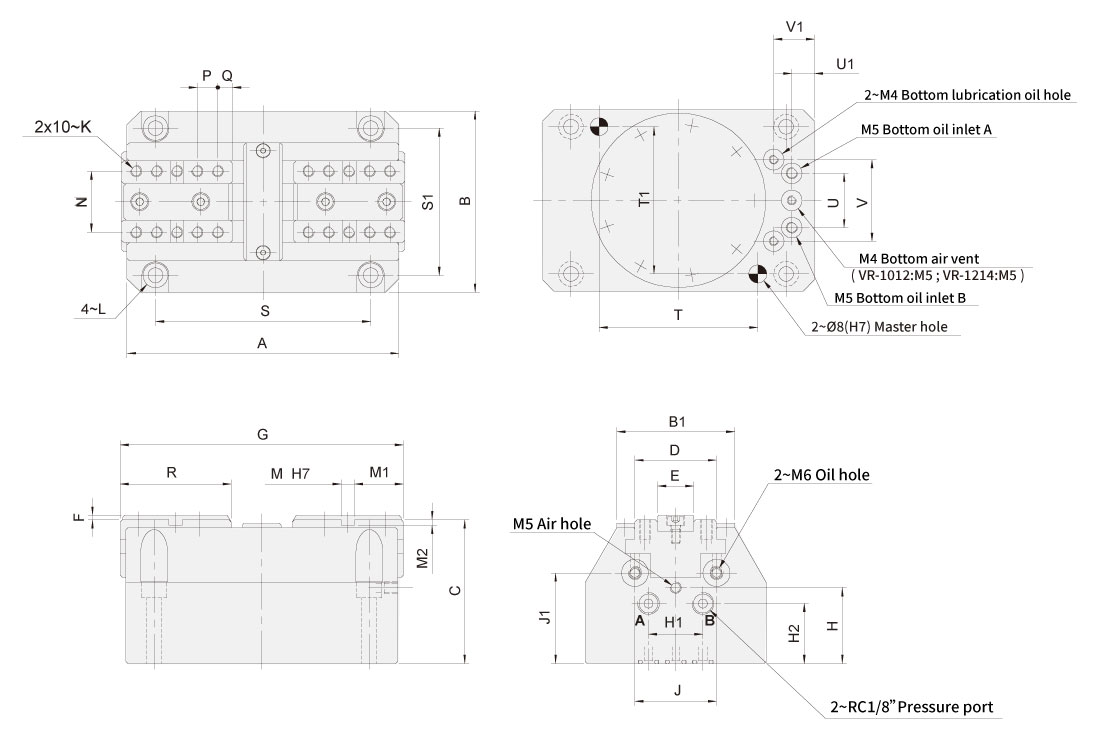

| Model | A | B | B1 | C | D | E(h6) | F | Gmax | Gmin | H | H1 | H2 | J | J1 | K | L | M(H7) | M1 | M2 | N | P | Q | R | S | S1 | T | T1 | U | U1 | V | V1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VR-808 | 120 | 80 | 52 | 63.5 | 36 | 16 | 2 | 125 | 117 | 33.5 | 24 | 26.5 | 36 | 40 | M5x0.8 | M6 | 6 | 21.5 | 2.5 | 27 | 9 | 6.5 | 49 | 95 | 65 | 70 | 65 | 24 | 10 | 36 | 18 |
| VR-1012 | 150 | 100 | 64 | 76 | 45 | 20 | 2 | 158 | 146 | 39 | 30 | 32 | 46 | 48 | M6x1 | M8 | 8 | 27 | 2.5 | 32 | 12 | 8 | 63 | 120 | 80 | 90 | 80 | 30 | 12 | 46 | 20 |
| VR-1214 | 188 | 125 | 82 | 82.5 | 60 | 24 | 2.5 | 196 | 182 | 41.5 | 44 | 34.5 | 57 | 51 | M8x1.25 | M8 | 8 | 30 | 3 | 43 | 12 | 10 | 80 | 158 | 100 | 128 | 100 | 44 | 16 | 57 | 25 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| VR-808 |  |  |  |
| VR-1012 |  |  |  |
| VR-1214 | | | |
