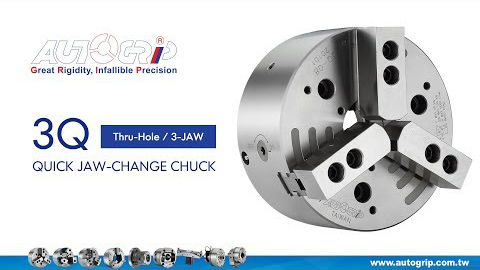

3Q
| Model | - | Plunger stroke (mm) | Jaw stroke (Dia.) (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. D.B. pull kN (kgf) | Max. clamping force kN (kgf) | Max. speed min-1 (r.p.m.) | I kg‧m 2 | Weight (kg) | Weight (kg) | Matching cyl. | Max. pressure MPa (kgf/cm2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3Q-08 | A6 | 16 | 7.5 | 210 | 23 | 45.0 (4590) |
82.0 (8360) |
5000 | 0.15 | 24.5 | 26.0 | TK-1068 | 3.1(31) |
| 3Q-10 | A8 | 19 | 8.8 | 254 | 41 | 60.0 (6118) |
115.0 (11270) |
4500 | 0.41 | 44.0 | 46.0 | TK-A1287 | 2.8(28) |
| 3Q-12 | A8 | 23 | 10.6 | 315 | 47 | 81.0 (8259) |
165.0 (16825) |
3500 | 0.96 | 73.0 | 75.0 | TK-1511 | 2.4(25) |
* The dimensions and the specifications of 3Q-A are in the red data.
* Subject to technical changes.
| Model | - | A | B | B | C | D | D1 | D2 | E | E1 | F | G max. | G max. | G min. | G min. | H | J | J1 | K max. | L | L1 | L1 | M | N | P | Q | R max. | R min. | S | T | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3Q-08 | A6 | 215 | 98 | 110 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 66 | 14.5 | 32 | -1.5 | 15.5 | 20 | 30 | 98 | M75x2 | M12 | 17 | 20 | 37 | 95 | 25 | 36 | 20.8~44.8 | 17.1~41.1 | 35 | 14 | M6 | 264 | 80 |
| 3Q-10 | A8 | 254 | 119 | 132 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 81 | 8.5 | 26.5 | -10.5 | 7.5 | 39 | 45 | 115 | M90x2 | M16 | 23 | 25 | 42 | 110 | 30 | 40.5 | 21.1~52.8 | 16.7~48.2 | 40 | 16 | M8 | 312 | 100 |
| 3Q-12 | A8 | 315 | 133 | 145 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 106 | 8.5 | 26.5 | -14.5 | 3.5 | 42 | 50 | 140 | M115x2 | M16 | 22 | 24 | 50 | 110 | 30 | 57 | 34.1~70.1 | 28.8~64.8 | 50 | 21 | M8 | 360 | 130 |
* The dimensions and the specifications of 3Q-A are in the red data.
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| 3Q-08 |  |  |  |
| 3Q-08A6 | | | |
| 3Q-10 | | | |
| 3Q-10A8 | | | |
| 3Q-12 | | | |
| 3Q-12A8 | | | |
