CME

End stop

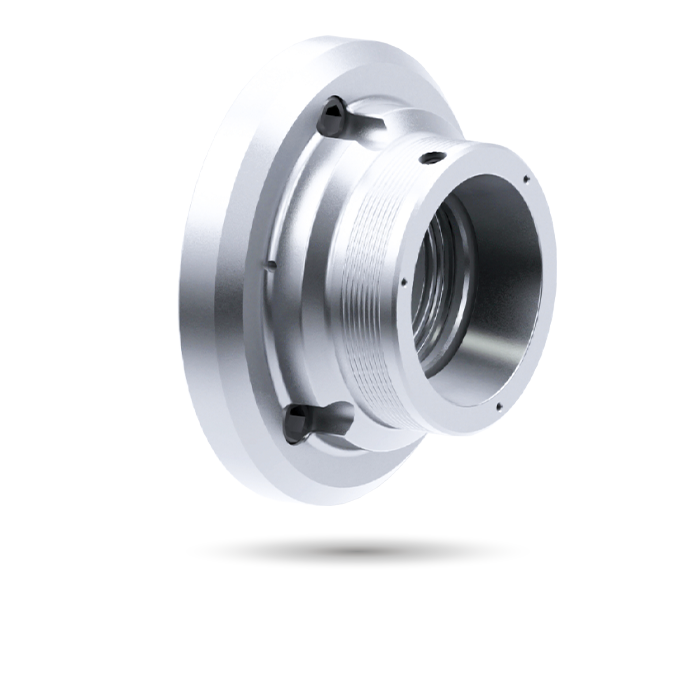

END STOP collet CHUCK

End stop type

Simple, concise, and lightweight design.

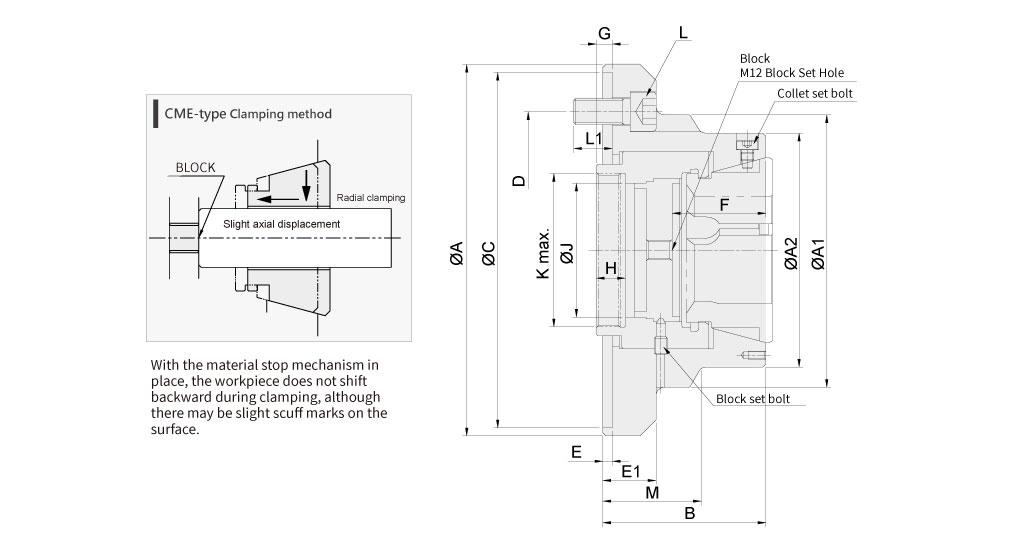

Rear pull positioning clamping, with a stopper block mechanism. Equipped with radial clamping and axial fine-tuning torque, it can precisely position the workpiece's material entry length, ensuring more accurate length control.
The stopper block and dust cover can be interchanged, allowing for through-hole applications and dustproof functionality.

J is the hole diameter of blank draw nut.

K is the maximum thread specification and it could be customize.

Catalog Download

Specifications

Model	-	Plunger stroke (mm)	Max. Chucking Capacity Round (mm)	Max. Chucking Capacity Hexagom (mm)	Max. Chucking Capacity Square (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN(kgf)	Max. speed min^-1(r.p.m.)	Weight (kg)	Matching Stell Collet	Matching cyl.	Max. pressure (kgf/cm²)
CME-80	-	4.5	5~80	8~68	8~56	50.0(5100)	115(11730)	6500	13.6	RG-80	TK-A1287	2.3(23)

Dimensions

Model	-	A	A1	A2	B	C(H6)	D	E	E1	F	G max.	G min.	H	J	K max.	L	L1	M
CME-80	-	230	170	150	101	220	171.4	6	33	58	12.5	8	18	85	M95x2	3~M16x35	24	61

Download

Model	2D pdf	2D dwg	3D step
CME-80

Turning Center

High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.

Related Applications

Machining Center

Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.

Other Applications

Special Purpose Machine

Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.

Other Applications
