CMD

Dead Length

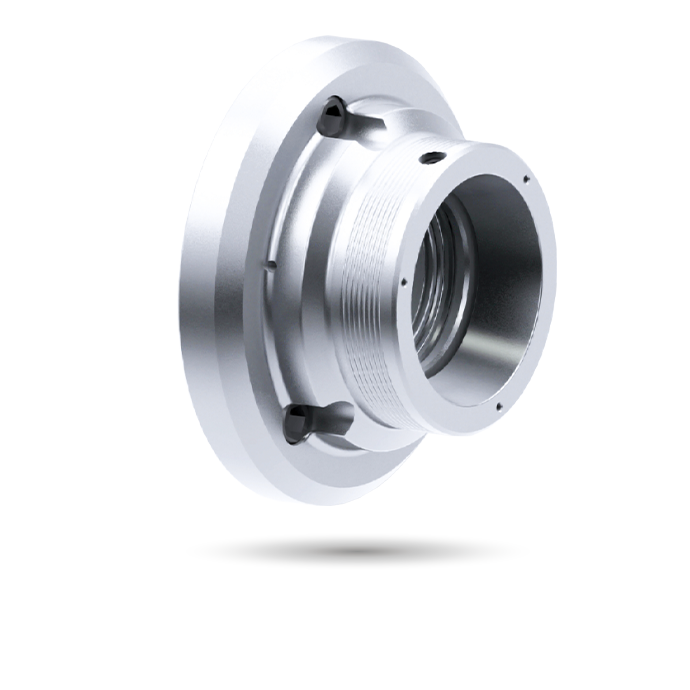

Dead Length Collet Chuck

Dead Length type

Compact and lightweight design with simplified structure.
Dead length clamping with a built-in work stop ensures zero axial movement for precise workpiece positioning.
Compatible with AUTOGRIP rubber collets to prevent forward push and protect the workpiece surface.
Interchangeable work stop and dust cover for through-hole machining and chip protection. Ideal for sub-spindle clamping with reduced axial clamping force.

J is the hole diameter of blank draw nut.

K is the maximum thread specification and it could be customize.

Catalog Download

Specifications

Model	-	Plunger stroke(mm)	Max. Chucking Capacity Round (mm)	Max. Chucking Capacity Hexagom (mm)	Max. Chucking Capacity Square (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN(kgf)	Max. speed min^-1(r.p.m.)	Weight (kg)	Matching Stell Collet	Matching cyl.	Max. pressure (kgf/cm²)
CMD-80	-	4.5	5~80	8~68	8~56	50.0(5100)	115(11730)	6500	6.3	RG-80	TK-A1287	2.3(23)

Dimensions

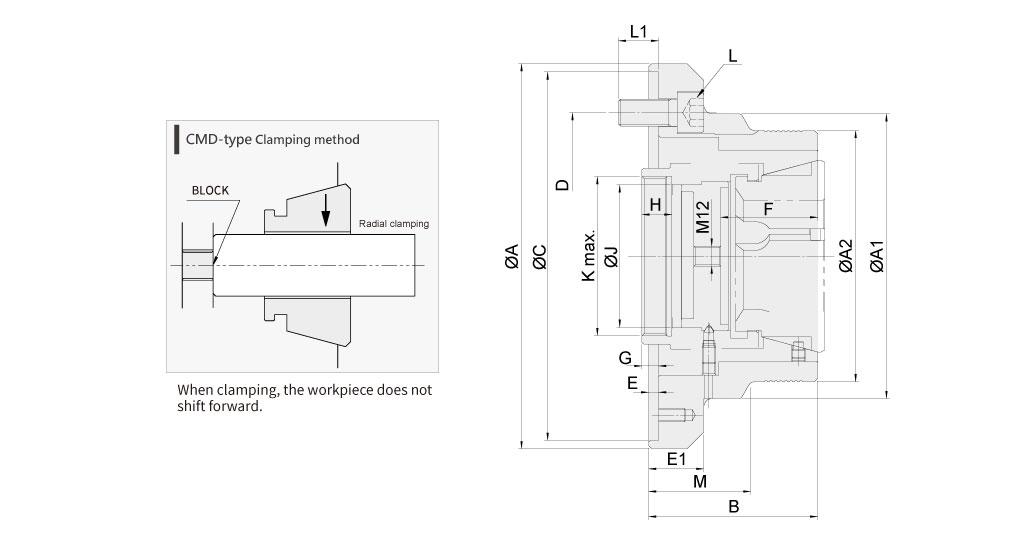

Model	-	A	A1	A2	B	C(H6)	D	E	E1	F	G max.	G min.	H	J	K max.	L	L1	M
CMD-80	-	230	170	150	101	220	171.4	6	33	58	12.5	8	18	85	M95x2	3~M16x35	24	61

Download

Model	2D pdf	2D dwg	3D step
CMD-80
