Thru-Hole | Hydraulic

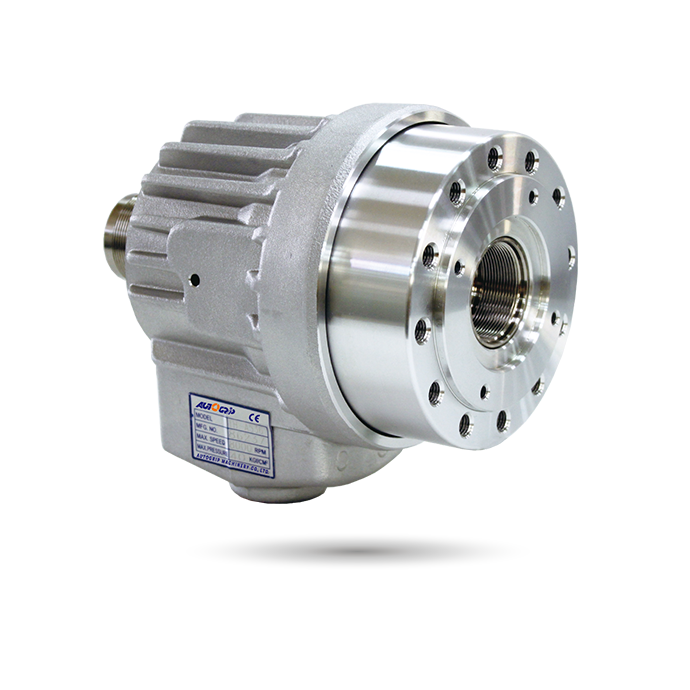

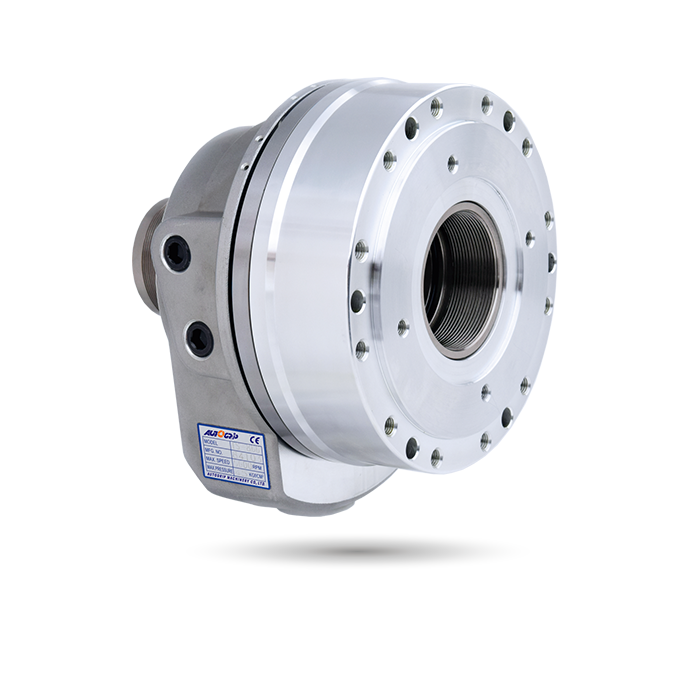

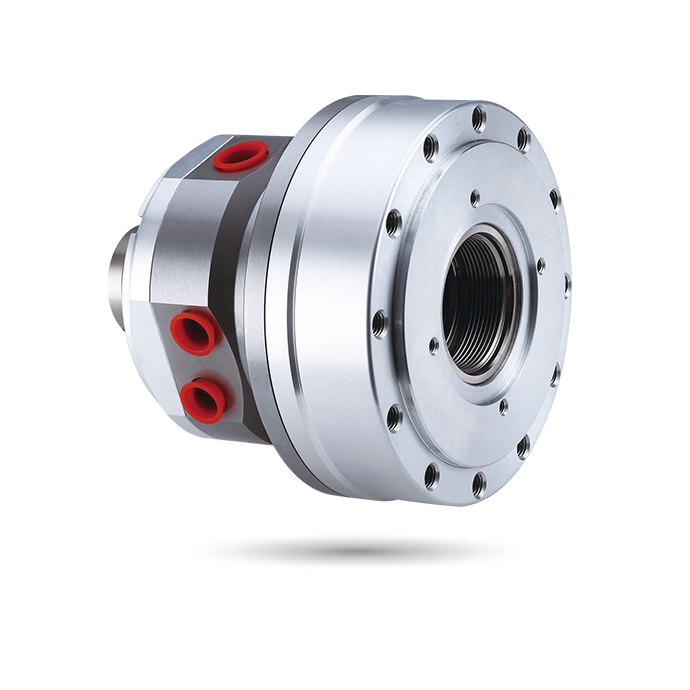

Thru-Hole Rotary Hydraulic Cylinder with Safety Device

Thru-Hole | Hydraulic

Super high speed, light weight large Through-Hole.
Built-in check valve which prevents the internal pressure from sudden declining so that the workpiece will not fly out and cause a serious accident.

Catalog Download

Specifications

Model	Eff. piston area Extend cm²	Eff. piston area Retract cm²	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)	Total oil leakage lit./min.
TH-428	53.2	50.5	10	8000	4.0(40)	0.008	5.8	3.0
TH-A536	69.8	67.5	15	8000	4.0(40)	0.05	8.3	3.0

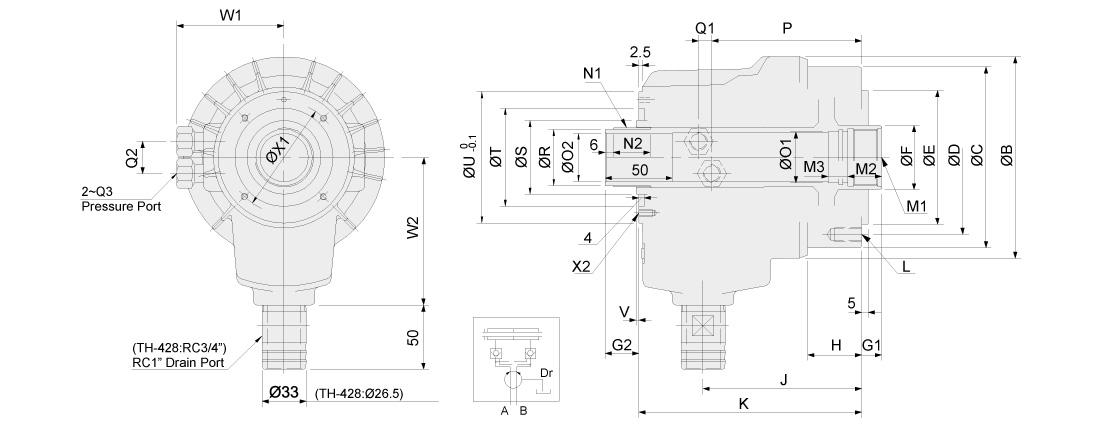

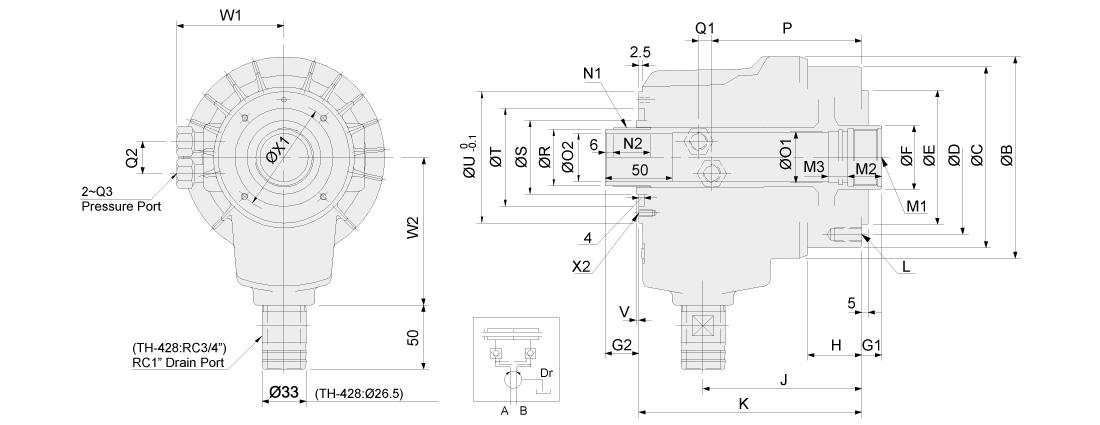

Dimensions

* Subject to technical changes.

Model	A(I.D.)	B	C	D	E(h7)	F	G1 Max.	G1 Min.	G2 Max.	G2 Min.	H	J	K	L	M1	M2	M3	N1	N2	O1(H8)	O2(H8)	P	Q1	Q2	Q3	R(g7)	S	T	U	V	W1	W2	X1	X2
TH-428	90	130	120	100	80	40	10	0	35	25	45	127.5	155	6-M8x15	M33x1.5	25	12	M34x1.5	26	30	28	101.5	11	24	RC1/4	32	45	65	86	4	72	105	76	M4x7
TH-A536	105	150	135	115	100	48	15	0	40	25	40	118	166	6-M10x20	M42x1.5	25	15	M44x1.5	28	38	36	111.5	10	24	RC1/4	42	55	73	98	4	80	110	83	M5x10

Download

Model	2D pdf	2D dwg	3D step
TH-428
TH-A536
