TR

Thru-Hole

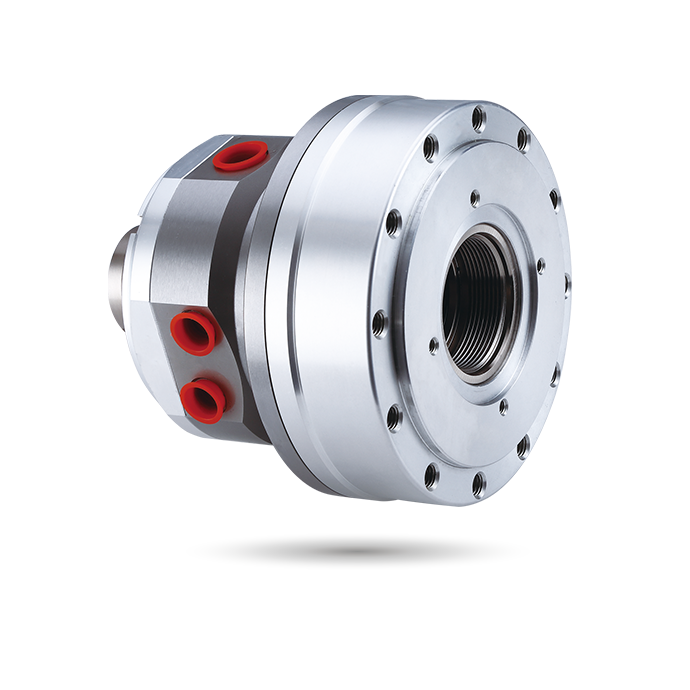

Short type Thru-Hole Rotary Hydraulic Cylinder with Safety Device

Short Type Thruhole | Hydraulic

Compact short-length design with lightweight construction for space-saving installation.
Built-in check valve and pressure relief valve ensure enhanced operational safety.
Large oil inlet and drain ports provide high oil flow and smooth drainage.
Supports both front-end and rear-end mounting for flexible installation options.
Suitable for use with both vertical and horizontal spindles.
Linear sensor can be attached.(optional)

Catalog Download

Specifications

Model	Eff. piston area Extend cm²	Eff. piston area Retract cm²	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)	Total oil leakage lit./min.
TR-433	49.5	45.4	10	8000	4.0(40)	0.010	6.2	3.0
TR-536	56.4	54.2	15	8000	4.0(40)	0.011	6.4	3.0
TR-539	72.4	67.1	15	8000	4.0(40)	0.010	6.8	3.0
TR-A646	105	93.9	15	7000	4.0(40)	0.015	9.5	3.0
TR-B646	105	93.9	15	7000	4.0(40)	0.015	10	3.0
TR-853	135.3	125	20	6300	4.0(40)	0.032	11.5	3.9
TR-1075	170	155	25	4500	4.0(40)	0.065	18	4.2
TR-1291	234	217.5	30	3500	4.0(40)	0.092	29.5	4.5

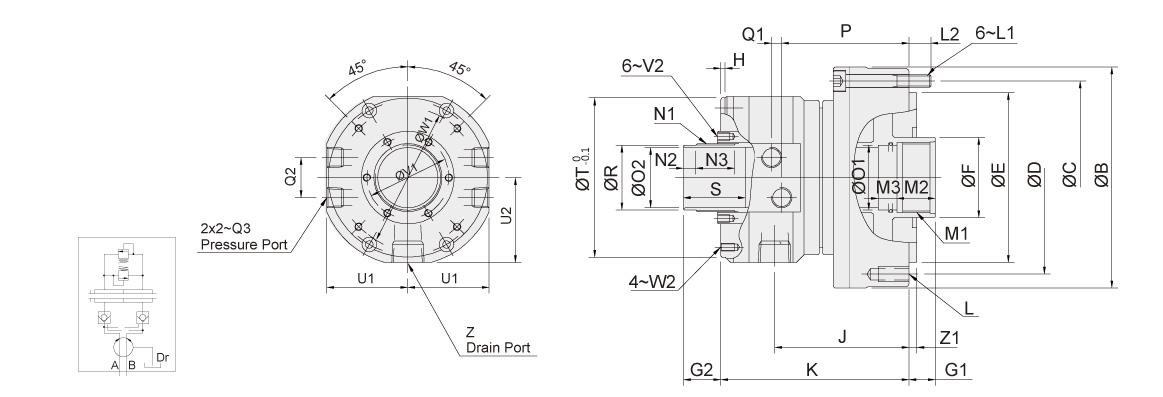

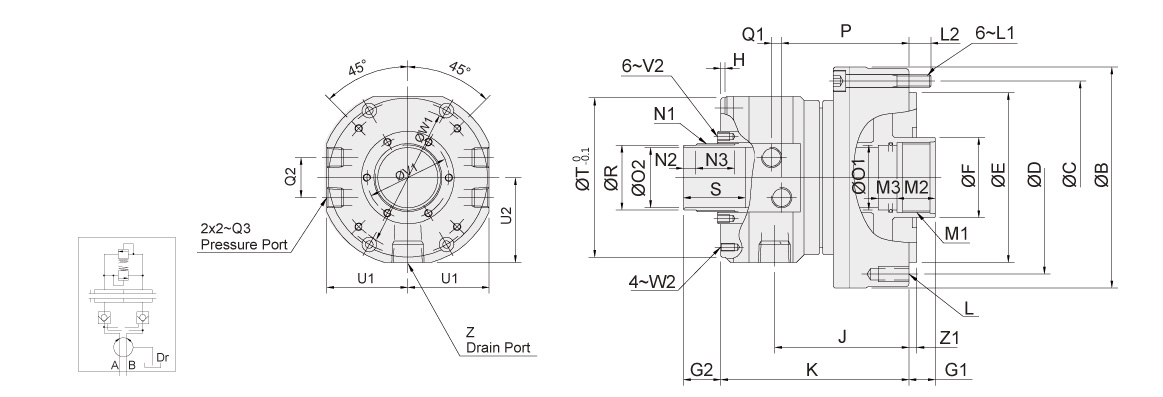

Dimensions

* Subject to technical changes.

Model	A (I.D.)	B	C	D	E (h7)	F	G1 (max.)	G1 (min.)	G2 (max.)	G2 (min.)	H	J	K	L	L1	L2	M1	M2	M3	N1	N2	N3	O1(H8)	O2(H8)	P	Q1	Q2	Q3	R(g7)	S	T	U1	U2	V1	V2	W1	W2	Z	Z1
TR-433	90	120	106	100	80	46	10	0	30	20	3.5	97	133	6~M8x15	M8x60	12	M40x1.5	25	10	M39x1.5	8	25	36	33	92.5	6.5	26	RC1/4	37	40	98	52.5	55	50	M5x8	83	M5x9	RC1/2	5
TR-536	97	133	115	115	100	48	15	0	34	19	3.5	97	133	6~M10x20	M6x60	12	M42x1.5	25	15	M44x1.5	6	28	38	36	92.5	6.5	26	RC1/4	42	43	98	52.5	55	53	M5x8	83	M5x7	RC1/2	5
TR-539	107	143	125	125	110	52	15	0	34	19	4	97	133	6~M10x20	M8x60	12	M45x1.5	25	12	M44x1.5	8	25	42	39	92.5	6.5	26	RC1/4	42	40	103	52.5	55	53	M5x8	90	M5x9	RC1/2	5
TR-A646	128	165	147	147	130	65	15	0	34	19	3.5	97	135	12~M10x20	M8x60	11.5	M55x2	25	13	M52x1.5	8	25	50	46	95	5	32	RC3/8	50	50	116	59	62	61.5	M5x9	98	M5x9	RC1/2	5
TR-B646	128	162	147	130	100	65	15	0	34	19	3.5	107.5	145	12~M10x20	M8x70	11.5	M55x2	30	15	M52x1.5	8	30	50	46	105	5	32	RC3/8	50	50	116	59	62	61.5	M5x8	98	M5x9	RC1/2	5
TR-853	145	185	165	170	130	70	20	0	47	27	4.5	118.5	160	12-M10x20	M8x75	12	M60x2	30	15	M58x1.5	8	30	55	53	114	8	34	RC3/8	56	50	128	65	67	70	M5x10	110	M6x11	RC1/2	5
TR-1075	170	212	190	190	160	95	25	0	52	27	4.5	129.5	181	12-M10x20	M10x85	16	M85x2	35	15	M84x2	9	33	80	75	123.5	12	40	RC1/2	81	50	164	83	86	95	M5x10	155	M6x11	RC3/4	5
TR-1291	200	248	225	215	180	110	30	0	59	29	5	146	240.5	12~M12x24	M10x95	16	M100x2	35	15	M99x2	9	38	95	91	139	14	45	RC1/2	96	50	180	91.5	93	110.5	M6x12	165	M6x12	RC3/4	5

Download

Model	2D pdf	2D dwg	3D step
TR-433
TR-536
TR-539
TR-A646
TR-B646
TR-853
TR-1075
TR-1291
