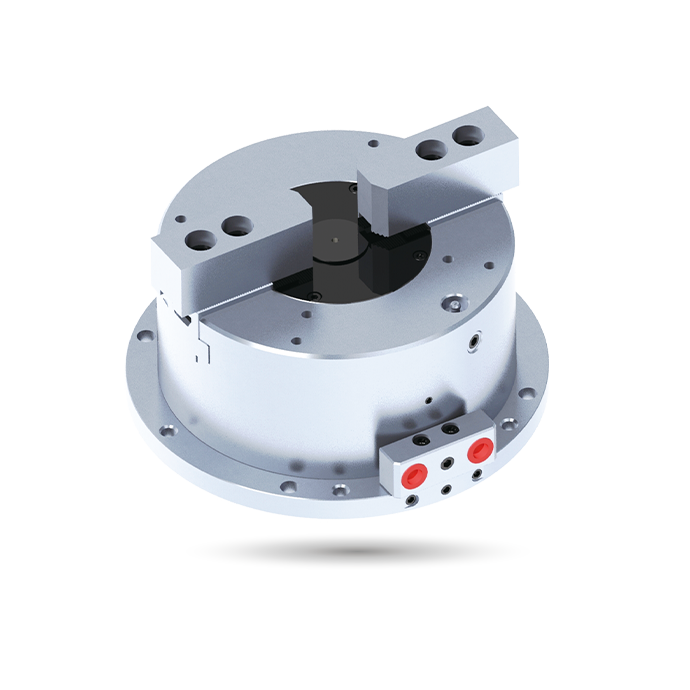

Specifications
| Model | Jaw stroke (Dia.) (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. clamping force Pneumatic kN(kgf) | Max. clamping force Hydraulic kN(kgf) | Max. pressure Pneumatic MPa (kgf/cm2) | Max. pressure Hydraulic MPa (kgf/cm2) | Min. pressure kgf/cm2 | Air consumption lit(at 6.0 kgf/cm2) | Weight (kg) |
| SP-206 |
5.5 | 168 | 30 | 14.0(1427) | 24.0(2450) | 0.7(7) | 1.2(12) | 2 | 1.4 | 16 |
| SP-208 | 6.8 | 210 | 42 | 28.9(2946) | 49.6(5056) | 0.7(7) | 1.2(12) | 2 | 2.5 | 27.7 |
| SP-210 | 7 | 254 | 52 | 41.8(4260) | 71.7(7308) | 0.7(7) | 1.2(12) | 2 | 4.2 | 41.8 |
Dimensions
| Model |
A(h7) | A1 | B | C | D | D1 | E | F | G | H | J max. | J min. | K max. | K min. | L | L1 | M | N | P | Q | R | S | T | V |
| SP-206 | 206 | 168 | 94 | 188 | 15 | 13.5 | 25 | 40 | 73 | 20 | 10.75 | 4.75 | 47 | 44.25 | 31 | 6~M16 | 12 | M10x1.5 | 11 | 139.5 | 104.5 | 55 | 18 | 6~M8x1.25 |
| SP-208 | 248 | 210 | 108 | 230 | 15 | 13.5 | 32 | 41 | 95 | 25 | 12.25 | 8.75 | 57 | 53.6 | 35 | 6~M20 | 14 | M10x1.5 | 11 | 160.5 | 125.5 | 68 | 25 | 6~M8x1.25 |
| SP-210 | 300 | 254 | 112 | 280 | 16 | 13.5 | 544 | 46 | 110 | 30 | 23.25 | 12.75 | 64.5 | 61 | 40 | 6~M20 | 16 | M12x1.75 | 13 | 182.5 | 147.5 | 85 | 30 | 6~M10x1.5 |
