RDL

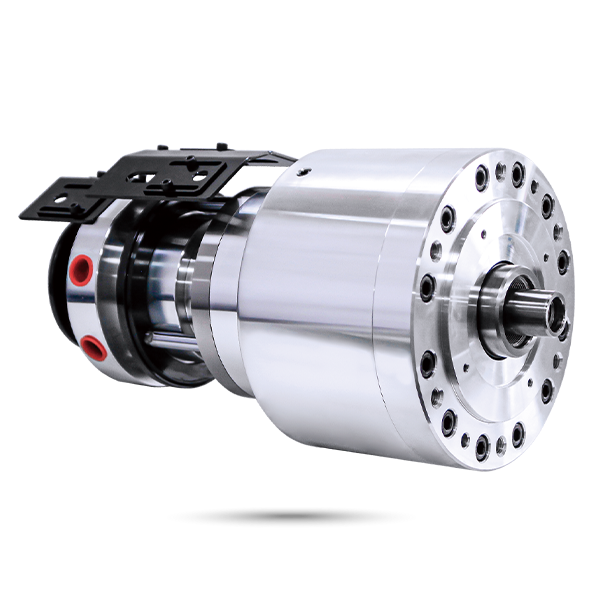

Double Rod Rotary Cylinder (External Joint Type)

DOUBLE ROD ROTATING CYLINDER
WITH EXTERNAL ROTATING JOINT

ROTATING JOINT TYPE

Short type, lightweight, dual-rod dual-circuit rotary hydraulic cylinder with
rotary joint.
The internal tie rod can be applied to drive center ejection of parts or power chucks with axial telescopic positioning.
The front and rear cylinders are controlled by separate circuits, each
equipped with Built-in safety check valves .
The central through-hole is used for the passage of coolant, oil, or air, and
can be fitted with an external single-channel rotary joint.

The rotary joint and support frame are options.

Catalog Download

Specifications

Model	Eff. piston area cm² Extend A	Eff. piston area cm² Retract B	Eff. piston area cm² Extend A	Eff. piston area cm² Retract B	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)
RDL-160S	68.3	190.6	68.3	172.8	25/55	4000	5.0(50)	0.025	26

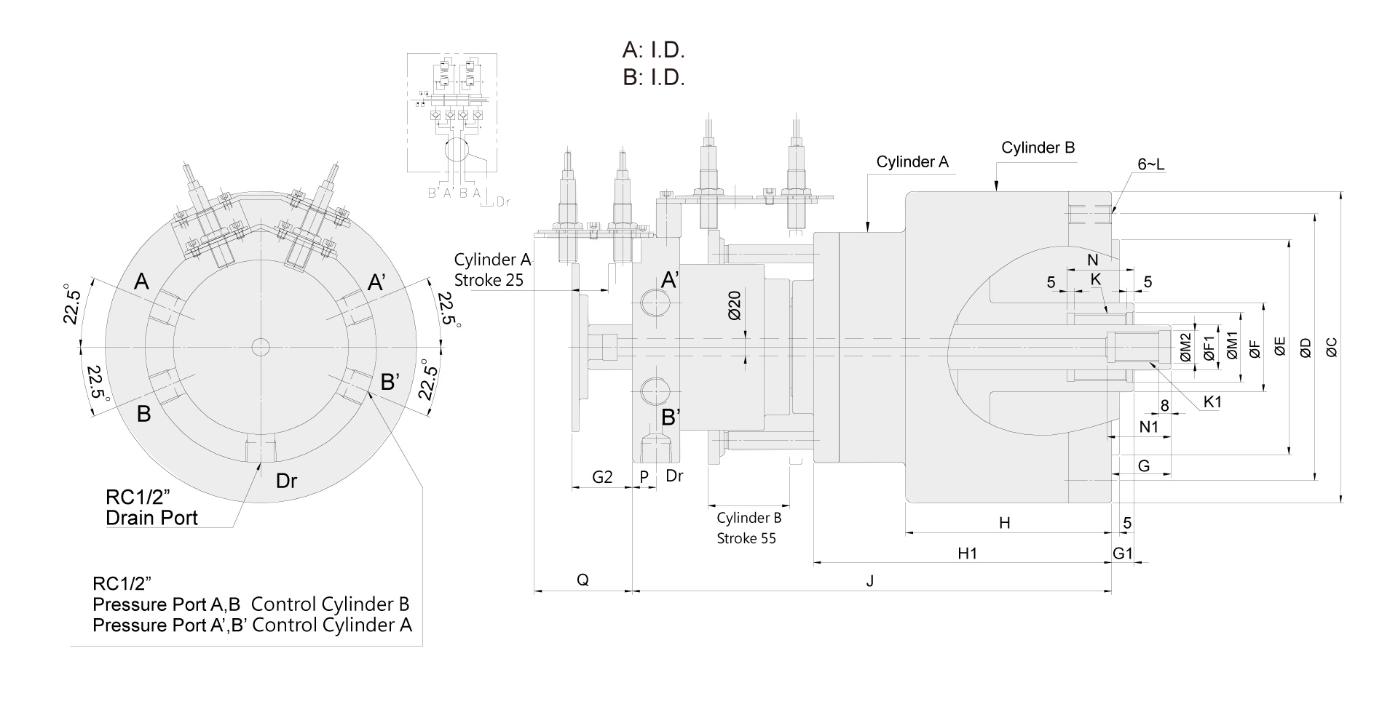

Dimensions

* Subject to technical changes.

Model	A	B	C	D	E(h7)	F	F1	G max.	G min.	G1 max.	G1 min.	G2 max.	G2 min.	H	H1	J	K	K1	L	M1(H8)	M2(h7)	N	N1	P	Q
RDL-160S	100	160	210	180	145	60	30	65	40	70	15	41	16	139	201	323	M45x1.5	M20x2.5	M12x29	47	22	45	43	16	66

Download

Model	2D pdf	2D dwg	3D step
RDL-160S
