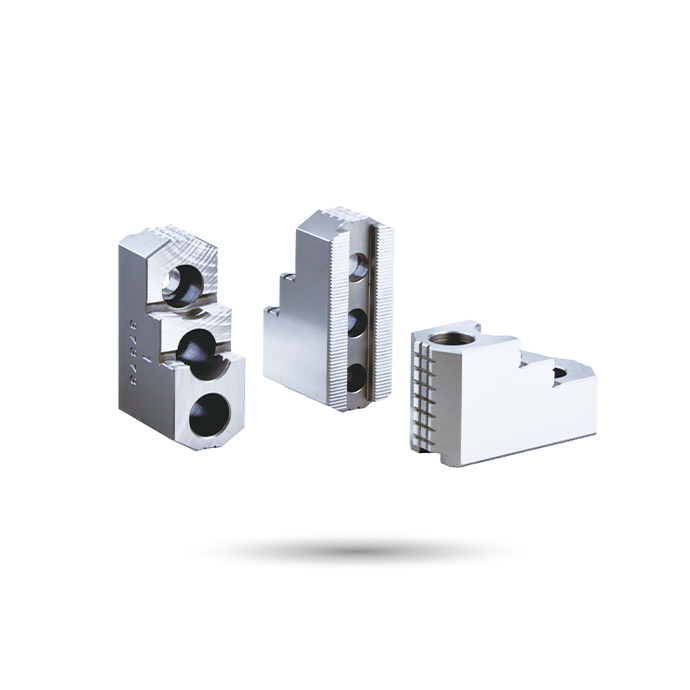

Standard Hard Jaws

AUTOGRIP Standard Hard Jaws are manufactured from high-quality alloy steel and undergo heat treatment and precision grinding to provide excellent wear resistance, rigidity, and stable clamping performance. They are ideal for general turning applications and high-volume production.

Available in various sizes and mounting configurations, they are compatible with AUTOGRIP power chucks and other standard chuck systems, ensuring reliable workholding and machining accuracy.

Manufactured from high-quality alloy steel.
Heat-treated for superior wear resistance and long service life.
Precision machined for accurate and repeatable clamping.
High-rigidity design for heavy-duty machining.
Available in various sizes and mounting configurations.
Compatible with AUTOGRIP and other standard chuck systems.

Catalog Download

Dimensions

* Subject to technical changes.

Model	H-1	H-2	H-3	H-4	H-5	H-6	H-7	H-8	H-9	H-10	H-11	H-12	H-13	Serration Pitch	Matching Chuck	3 Jaw Weight (kg)	Reference Drawing
HJ-05	54.2	23	28	10	4	31.1	14	23.1	8.5	13.5	10	M8	3.6	1.5×60°	3H-204, 3H-205, 3P-04, 3P-05, 3L-205, 3M-05	1.0	Fig.2
