FL

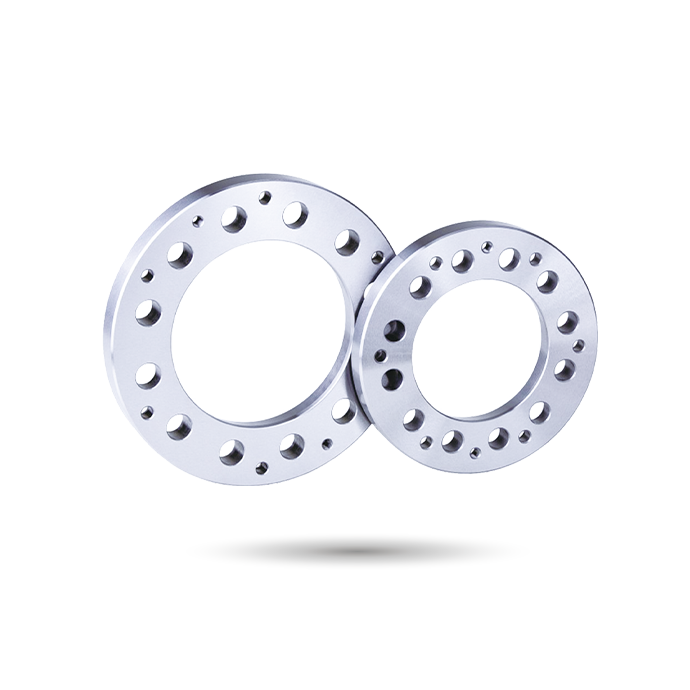

Chuck Adaptors

AUTOGRIP Chuck Flanges provide a precise and rigid connection between the machine spindle and various chuck systems, ensuring stable operation and reliable machining performance.

Manufactured from high-strength materials and precision machined, AUTOGRIP Chuck Flanges offer excellent concentricity, rigidity, and durability. They are available for various spindle nose and chuck configurations, with customized designs available to meet specific application requirements.

High precision machining for excellent concentricity.
Rigid construction for stable machining.
Compatible with various spindle nose and chuck standards.
Easy installation and excellent compatibility.
Custom designs available upon request.

Catalog Download

Dimensions

* Subject to technical changes.

Model	A	C	D	D1	D2	E	E1	L	U	Matching Chuck	Weight (kg)
FL3-04A2-4	110	85	70.6	63.513	82.6	8	28	M10	M10	3H-204, 2H-204	1.12
FL3-04A2-5	140	85	70.6	82.563	104.8	5.5	32	M10	M10	3H-204, 2H-204	2.28
FL1-05A2-4	-	110	82.6	63.513	96	-	15	M10	M6	3H-205, 2H-205, 3L-05, 2L-05	0.65
FL3-05A2-5	135	110	82.6	82.563	104.8	6	30	M10	M10	3H-205, 2H-205, 3L-05, 2L-05	1.99
FL1-06A2-5	-	140	104.8	82.563	116	-	15	M10	M6	2H-206, 4H-206, 3H-206, 3P-06, 2P-06, 3M-06, 2M-06, 3E-06, 3D-06, 2D-06, 3N-06	0.96
*FL1-06A2-5	-	140	104.8	82.563	116	-	*18	M10	M6	3L-206, 2L-206	0.96
FL3-06A2-6	165	140	104.8	106.375	133.4	6	35	M10	M12	2H-206, 4H-206, 3H-206, 3L-206, 2L-206, 3P-06, 2P-06, 3M-06, 2M-06, 3E-06, 3D-06, 2D-06, 3N-06	3.12
FL2-08A2-5	-	170	133.4	82.563	104.8	-	23	M12	M10	3H-208, 2H-208, 4H-208, 3P-08, 2P-08, 3M-08, 2M-08, 4T-08, 3E-08, 3D-08, 2D-08, 3N-08, 3R-08	2.7
*FL2-08A2-5	-	170	133.4	82.563	104.8	-	23	M12	M10	3L-208, 2L-208	2.7
FL1-08A2-6	-	170	133.4	106.375	150	-	17	M12	M6	2H-208, 4H-208, 3H-208, 3P-08, 2P-08, 3M-08, 2M-08, 4T-08, 3E-08, 3D-08, 2D-08, 3N-08, 3R-08	1.55
*FL1-08A2-6	-	170	133.4	106.375	150	-	*23	M12	M6	3L-208, 2L-208	1.55
FL2-10A2-6	-	220	171.4	106.375	133.4	-	25	M16	M12	4H-10, 3P-10, 2P-10, 3M-10, 2M-10, 3E-10, 3D-10, 2D-10, 3N-10, 3R-10 3H-12, 2H-12, 4H-12, 3L-212, 2L-12, 3P-12, 2P-12, 3M-12, 2M-12, 4T-10, 4T-12	5.02
FL1-10A2-8	-	220	171.4	139.719	190	-	18	M16	M8	2H-210, 4H-10, 3H-210, 3L-210, 2L-210, 3P-10, 2P-10, 3M-10, 2M-10, 4T-10, 3E-10, 3D-10, 2D-10, 3N-10, 3R-10 3H-12, 2H-12, 4H-12, 3L-212, 2L-12, 3P-12, 2P-12, 3M-12, 2M-12 , 4T-12	2.73
FL2-15A2-8	-	300	235	139.719	171.4	-	33	M20	M16	3H-15, 3H-212, 2H-15, 4H-15, 3L-15, 2L-15, 3P-215, 2P-15, 3M-15, 2M-15, 4T-15, 3H-18, 4H-18, 3P-218	12.52
FL1-15A2-11	-	300	235	196.869	260	-	22	M20	M10	3H-15, 3H-212, 2H-15, 4H-15, 3L-15, 2L-15, 3P-215, 2P-15, 3M-15, 2M-15, 4T-15, 3H-18, 4H-18, 3P-218	6.03
FL2-21A2-8	-	380	330.2	139.719	171.4	-	33	M24	M16	3H-215, 3P-221, 3P-224	22.05
FL2-21A2-11	-	380	330.2	196.869	235	-	40	M24	M20	3H-215	16.28
*FL2-21A2-11	-	380	330.2	196.869	235	-	*27	M24	M20	3P-221, 3P-224	16.28
FL1-21A2-15	-	380	330.2	285.775	330.2	-	27	M24	M12	3H-215, 3H-18B, 3H-221, 3P-221, 3P-224	8.6
FL2-40A2-15	-	520	463.6	285.775	330.2	-	40	M24	M24	3H-224	43.26
FL1-40A2-20	-	520	463.6	412.775	463.6	-	27	M24	M12	3H-224, 3H-232	13.55
