FA

Single-Slide | RACK AND PINION

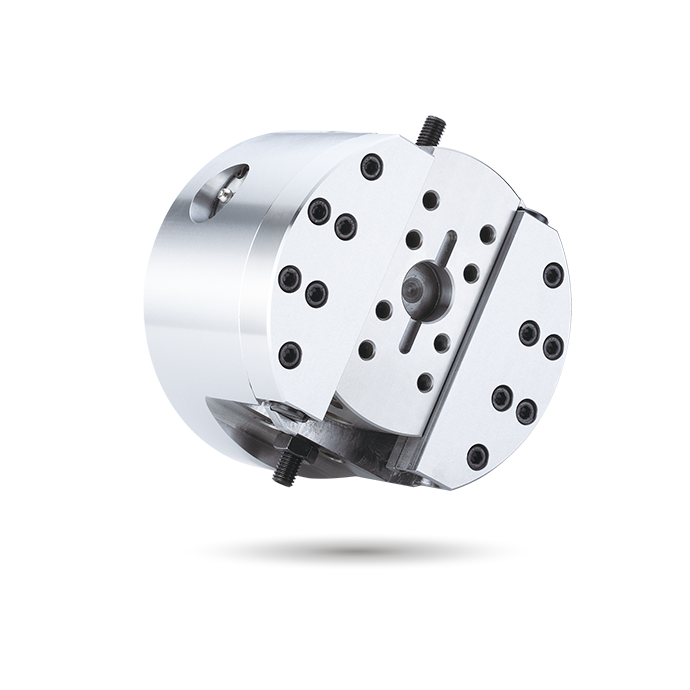

Single Slide Facing Head

Single-Slide | RACK AND PINION

The feed mechanism is Wedge Plunger, with a steady feed speed. Simple adjustment for feed speed and stroke.
Matching surfaces of all parts hardened, grounded, and lubricated directly. With rigidity and durability.
Stopper accuracy: ±0.03mm.

Suitable for using with RS type cylinder.

Catalog Download

Specifications

Model	Plunger stroke (mm)	Slider stroke (mm)	Max. speed min^-1(r.p.m.)	Max. D.B. pull kN (kgf)	Weight (kg)	Matching cylinder	Max. pressure MPa (kgf/cm²)
FA-615	15	15	1200	3.3 (340)	11.9	RS-6520N	1.2(12)
FA-830	30	30	800	5.0 (510)	23.9	RS-6530N	1.8(18)
FA-1570	70	70	500	18.2 (1855)	167	RS-1080N	2.6(26)

Dimensions

* Subject to technical changes.

型號	A	B	C (H7)	D	E	F (H7)	G max.	G min.	H	J	K	L	M	N	P	Q	R	S	T	U	V	W
FA-615	150	107	110	102	5	25	43	28	35	20	M12x1.75	3-M10x40	12	8-M8x16	82.6	50	32	32	68	-	±7.5	56
FA-830	198	126	140	121	6	30	55	25	45	25	M16x2	6-M10x55	15	12-M10x20	120	60	36	40	80	120	±15	66
FA-1570	400	200	300	192	6	60	110	40	75	50	M30x3.5	6-M20x90	15	8-M16x20	235	120	80	130	260	-	±17.5	-

Download

Model	2D pdf	2D dwg	3D step
FA-615
FA-830
FA-1570
