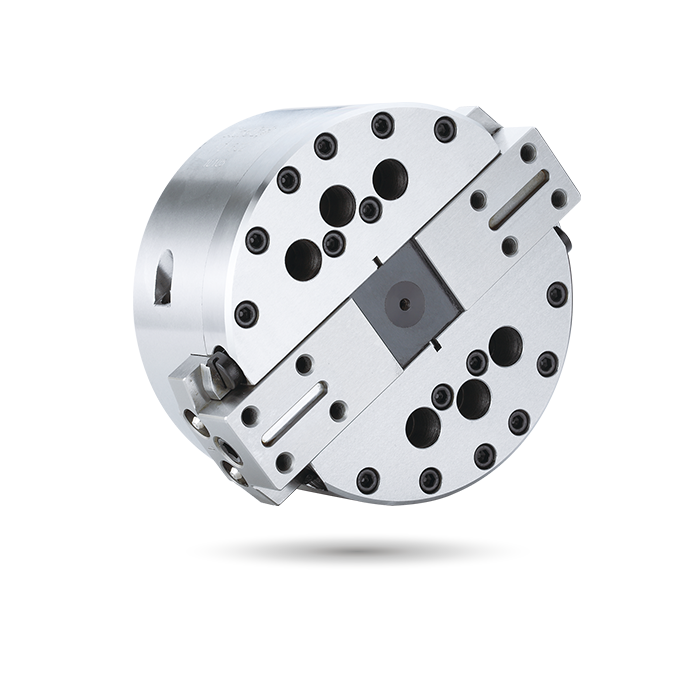

Specifications
| Model | Plunger stroke (mm) | Slider stroke (mm) | Max. speed min-1(r.p.m.) | Max. D.B. pull kN (kgf) | Weight (kg) | Matching cylinder | Max. pressure MPa (kgf/cm2) |
| FD-632 |
20 | 32 | 3200 | 16.9(1720) | 13.6 | RS-1030N | 2.4(24) |
| FD-840 | 25 | 40 | 2500 | 20.6(2100) | 30 | RS-1030N | 3.0(30) |
| FD-1060 | 35 | 60 | 1800 | 20.6(2100) | 41.5 | RS-1040N | 3.0(30) |
Dimensions
* Subject to technical changes.
| Model |
A | B | C(H7) | D | E | F | G max. | G min. | H | J | K | L | M | N | P | Q | R | S | T | U | V | W(H8) | Y |
| FD-632 |
168 | 93 | 104.8 | 104.8 | 32 | 76 | 31 | 11 | 2 | 36 | M16x2.0 | 6~M10x75 | 188 | 70 | 40 | 25 | 10 | 32 | M8x15 | 10 | 32 | 6 | 4 |
| FD-840 | 215 | 109 | 170 | 133.4 | 38 | 96.5 | 32.5 | 7.5 | 2 | 36 | M20x2.5 | 6~M12x785 | 238 | 92 | 60 | 42 | 12 | 45 | M10x15 | 12 | 45 | 10 | 6 |
| FD-1060 | 254 | 123 | 220 | 171.4 | 38 | 32.5 | 32.5 | -2.5 | 4 | 36 | M20x2.5 | 6~M16x125 | 286 | 90 | 65 | 46 | 15 | 50 | M10x15 | 12 | 50 | 10 | 6 |
