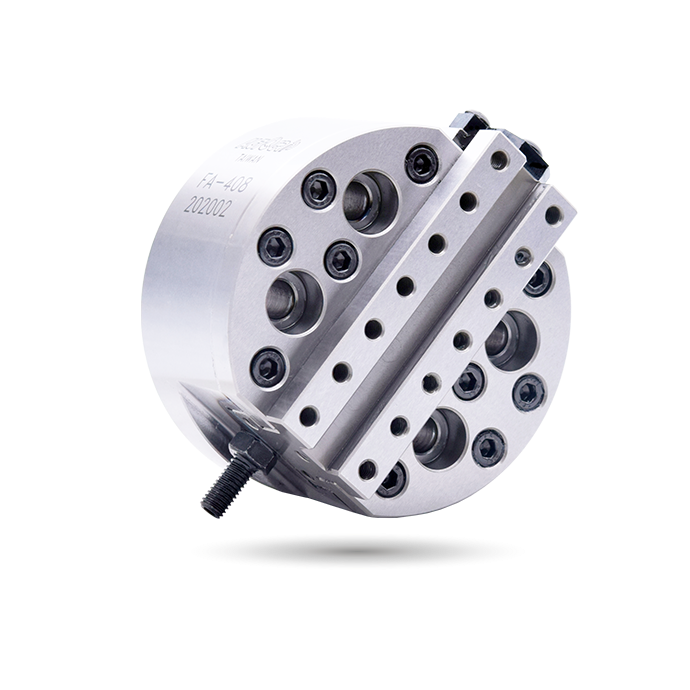

FA-408

The feed mechanism is Wedge Plunger, with a steady feed speed. Simple adjustment for feed speed and stroke.
Matching surfaces of all parts hardened, grounded, and lubricated directly. With rigidity and durability.
Stopper accuracy: ±0.03mm.

Suitable for using with RS type cylinder.

For precision processes, Wedge Plunger type facing heads are suitable for using with electro servo and ball screw mechanism.

Specifications

Model	Plunger stroke (mm)	Slider stroke (mm)	Max. speed min^-1(r.p.m.)	Max. D.B. pull kN (kgf)	Weight (kg)	Matching cylinder	Max. pressure MPa(kgf/cm²)
FA-408	18	10	1200	2.8(280)	14.5	RS-6520N	1.0(10)

* Subject to technical changes.

Model	2D pdf	2D dwg	3D step
FA-408
