T-NUT

T-NUT
https://www.autogrip-machinery.com/web/image/product.template/124/image_1920?unique=4ee485c

T-NUT

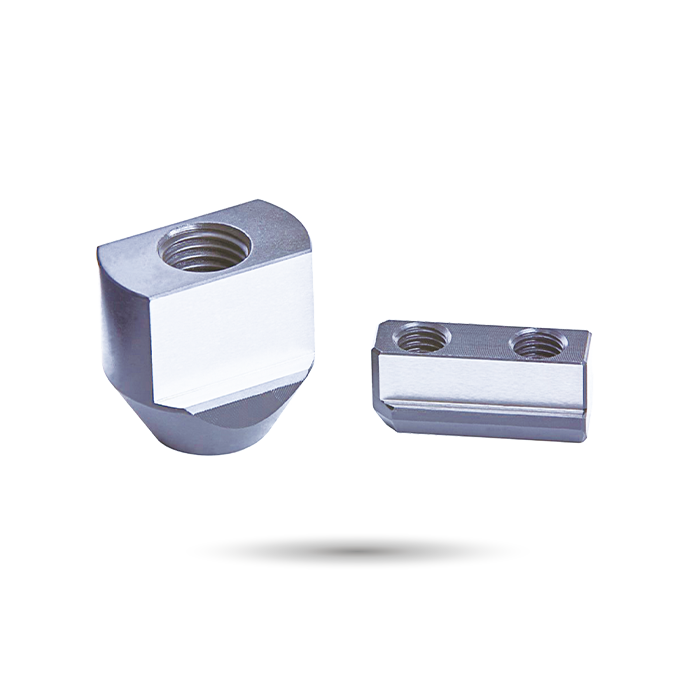

​AUTOGRIP T-NUTs are designed to securely connect hard jaws, soft jaws, and other jaw components to the chuck body, ensuring accurate mounting and reliable clamping performance.

Manufactured from high-quality alloy steel with precision machining and heat treatment, they provide excellent strength, wear resistance, and long service life for various power and manual chuck applications.

​

  • Manufactured from high-quality alloy steel.
  • Heat-treated for superior strength and wear resistance.
  • Precision machined for accurate jaw mounting.
  • Available in various sizes for different chuck models.
  • Secure fastening for reliable clamping performance.


Catalog Download

    This combination does not exist.


    Dimensions Related Accessories

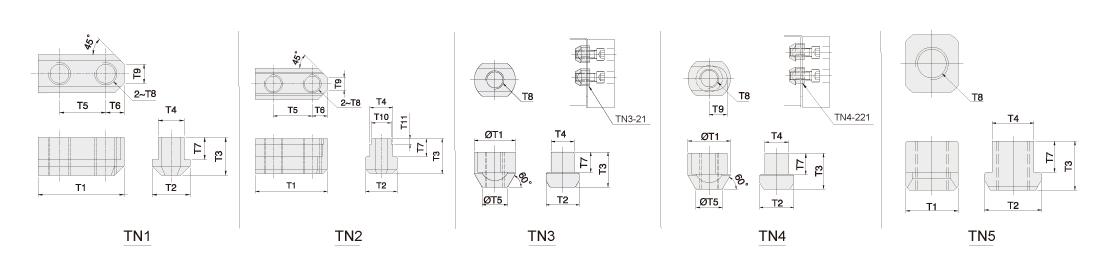

    Dimensions

    * Subject to technical changes.

    ModelT1T2T3T4T5T6T7T8T9T10T11Matching Chuck3 Pcs Weight
    (kg)
    TN1-04261415101469.5M85__
    H-204, H-205, P-04, P-05, L-205, M-05, SP-304
    		0.06
    TN1-06361718.51220811M106__
    H-206, P-06, L-206, 1L-06, M-06, 3N-06, AP-52, RAP-306, SP-306
    		0.15
    TN1-0846.52020.5142510.512M1210__
    H-208, P-08, L-208, 1L-08, M-08, 3N-08, 4T-08, AP-66, RAP-308, SP-308
    		0.27
    TN1-10512221.516301113M1211__
    H-210, P-10, L-210,1L-10, M-10 , 3N-10, 4T-10, AP-86, RAP-310, SP-310
    		0.36
    * TN1-1255.529.52821301216.5M1613--
    P-12, L-12, M-12
    		0.63
    TN2-1255.529.52821301216.5M1413184.5
    P-12, L-12, M-12
    		0.63
    * TN1-15803539.525.5431720.5M2014__
    2H-15, 3H-18B, P-15, P-215, P-218, L-15, M-215, M-218, V-15, V-18
    		1.53
    TN2-15803539.525.5431720.5M2014226
    2H-15, 3H-18B, P-15, P-215, P-218, L-15, M-215, M-218, V-15, V-18
    		1.5
    * TN1-2125629.523.521301212M1610__
    H-12, H-212, L-212, V-12, 4T-15 , AP-115
    		0.63
    TN2-2125629.523.521301212M1410184
    H-12, H-212, L-212, V-12, 4T-15 , AP-115
    		0.63
    * TN1-21580353425.5431719M2014--
    3H-15, 4H-15, 3H-18, 4H-18, H-215, L-215, SP-316
    		1.32
    TN2-21580353425.5431719M2014226
    3H-15, 4H-15, 3H-18, 4H-18, H-215, L-215, SP-316
    		1.29
    TN3-214637.5452526_26M20___
    P-221, P-224, M-221, M-224, V-21, V-24, V-32
    		1.84
    TN4-2214536382528-22M2019--
    H-221, H-224, H-232, SP-320, SP-324
    		0.63
    TN4-18532353025.5--19M20---
    AP-145, AP-185, AP-230, AP-275
    		0.15
    TN4-32036423930--24M24---
    AP-320, AP-375
    		0.24

    ​* 12" Chucks are originally equipped with TN1-12 & TN1-212.
    * 15" Chucks are originally equipped with TN1-15 & TN1-215.
