SRR

advanced type
https://www.autogrip-machinery.com/web/image/product.template/44/image_1920?unique=06e4c57

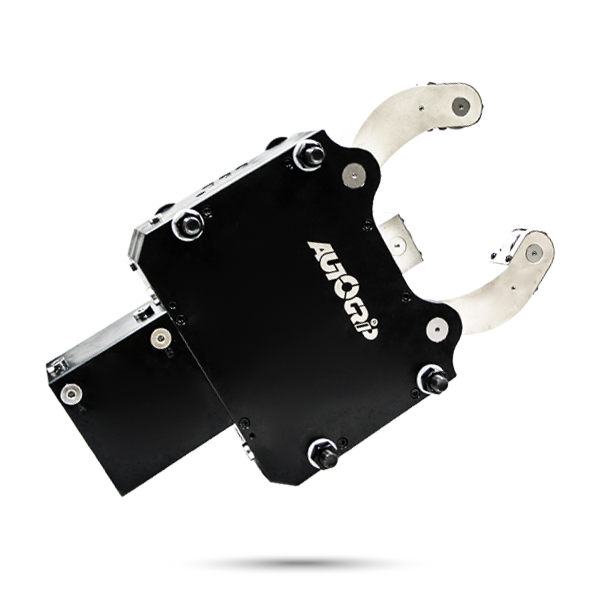

Self-Centering Steady Rest

Advanced type
  • Advanced type.
  • Sealed body design for low maintenance.
  • Programmable, suitable for automated assembly lines.
  • Equipped with water/air sprays for debris, coolant-proof, and chip-proof.
  • Range: 12-245mm
Catalog Download

    This combination does not exist.


    SpecificationsDimensions DownloadRelated Accessories


    Specifications

    Model Eff. piston area
    cm2
    		Chucking Dia. Max.
    (mm)
    		Chucking Dia. Min.
    (mm)
    		Max. clamping force
    kN (kgf)
    		Max. roller surface speed
    M/min.
    		Max. pressure
    bar
    		Clamping accuracy
    mm    		Repeat accuracy
    mm
    		clamping weight
    (kg)
    		Weight
    (kg)
    SRR-03
    		38.515212 10.2(1040)
    		750650.040.007100039
    SRR-04
    		63.52453015.0(1529)
    		760600.050.007150098



    Dimensions

    * Subject to technical changes.

    Model ABCDEFGOKL
    (Width of rollers)
    		M
    (Diameter of rollers)
    		PP1P2STV
    SRR-03
    		427307120290262135951154525471305575189389
    SRR-04
    		603448155405365240110146602552150757523105128



    Download

    Model 2D pdf 2D dwg3D step
    SRR-03


    SRR-04
