INTEGRATED STATIONARY CHUCKS
https://www.autogrip-machinery.com/web/image/product.template/95/image_1920?unique=06e4c57

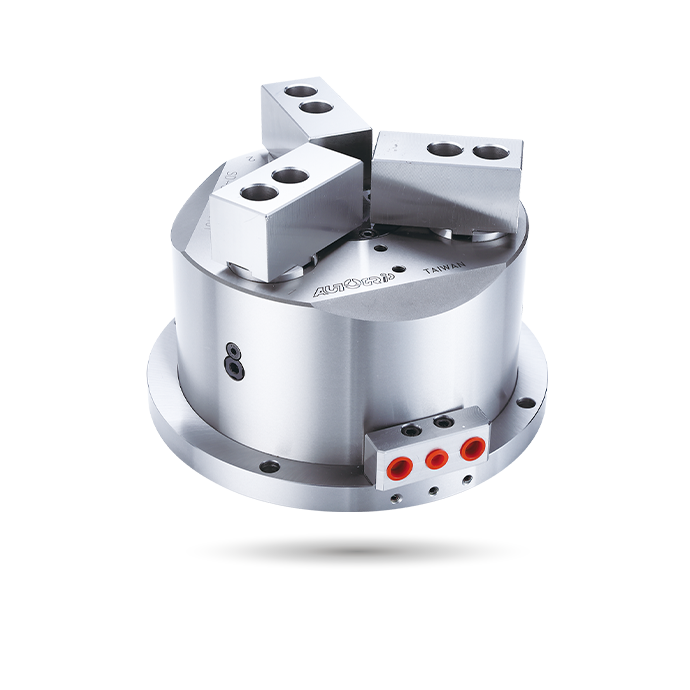

Stationary Pull Down Chuck

Pull Down | 3-JAW
  • Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
  • Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
  • Almost no workpiece uplifting displacement.
  • The body with heat treatment and the organization of cylinder pull-down, and fine boring, which guarantee to the high clamping precision and durableness, it’s suitable for heavy duty machining.

Can work together with multi-plate.

Equipped with Airtight pressure detection function.

Catalog Download

This combination does not exist.


SpecificationsDimensions DownloadRelated Accessories


Specifications

ModelJaw stroke
(Dia.) (mm)		Chucking Dia.
Max.(mm)		Chucking Dia.
Min.(mm)		Max. clamping force
Pneumatic
kN(kgf)		Max. clamping force
Hydraulic
kN(kgf)		Max. pressure
Pneumatic
MPa (kgf/cm2)		Max. pressure
Hydraulic
MPa (kgf/cm2)		Min. pressure
kgf/cm2		Air consumption
lit(at 6.0 kgf/cm2)		Weight (kg)
SD-304 5 110 18 5.0 (510) 10.9 (1112) 0.6 (6) 1.3 (13) 2 0.26 8.1
SD-306 7.2 165 35 11.5 (1173) 25.0 (2550) 0.6 (6) 1.3 (13) 2 0.58 20.6
SD-308 7.2 210 28 21.7 (2213) 47.0 (4793) 0.6 (6) 1.3 (13) 2 1.02 34.1
SD-310 10.8 254 40 36.0(3680) 60.0(6118) 0.6(6) 1.0(10) 2 2.05 55

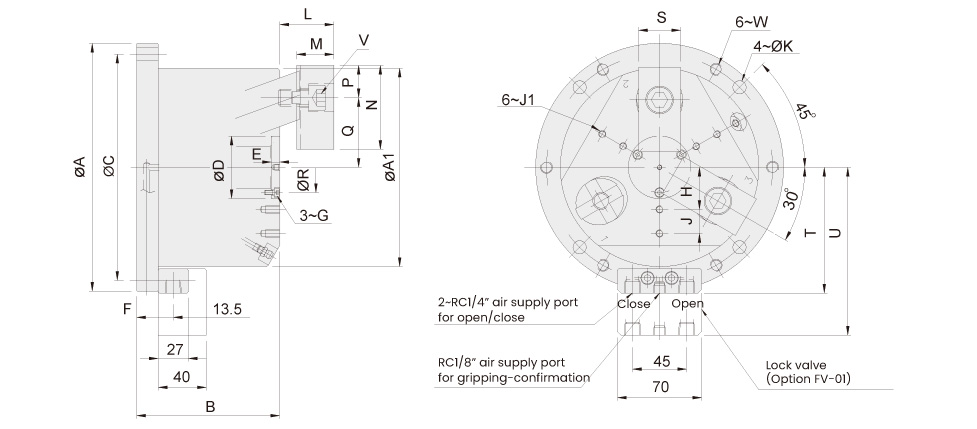

Dimensions

* Subject to technical changes.

ModelA(h7)A1BCD(H7/h7)EFGHJJ1KL max.L min.MNPQ max.Q min.RSTUVW
SD-30414811093.513035215M322.510M5x0.89302319.552193734.5272575.5110.53~M10M8x1.25
SD-30620616511618852718M43520M6x111453531702757.854.24235104.5139.53~M14M10x1.5
SD-308248210122230651018M54525M8x1.211564641843170.867.25340125.5160.56~M12M10x1.5
SD-310300254151280751220M65530M8x1.213655046100388579.66250147.5182.56~M14M12x1.75



Download

Model 2D pdf 2D dwg3D step
SD-304

SD-306
SD-308


SD-310
