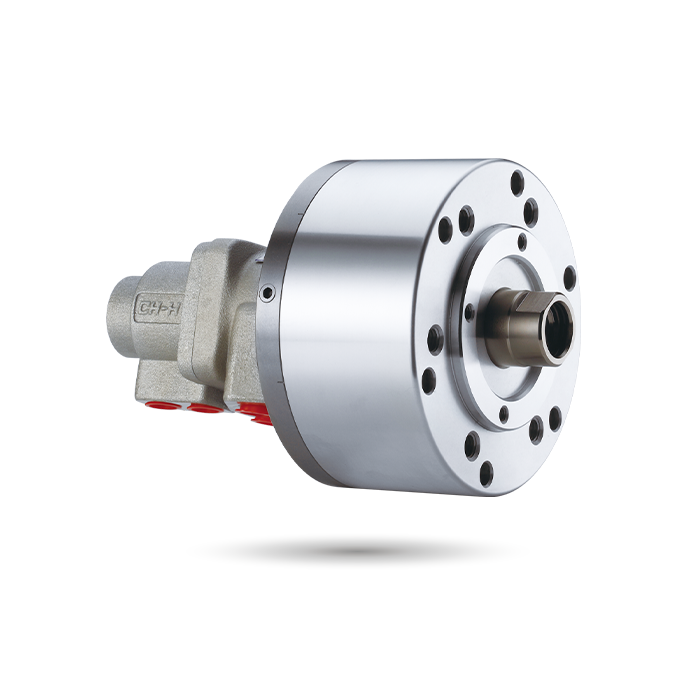

Specifications
| Model | Eff. piston area cm2 Extend | Eff. piston area cm2 Retract | Piston stroke (mm) | Max. speed min-1 (r.p.m.) | Max. pressure MPa (kgf/cm2) | Coolant connection max. pressure MPa (kgf/cm2) | I kg‧m 2 | Weight (kg) |
| RL-75 | 42.6 | 37.1 | 15 | 6000 | 4.0(40) | 3.5(35) | 0.01 | 3.1 |
| RL-100 | 77.0 | 71.5 | 20 | 6000 | 4.0(40) | 3.5(35) | 0.04 | 4.6 |
| RL-125 | 121.2 | 113.1 | 25 | 6000 | 4.0(40) | 3.5(35) | 0.06 | 7.1 |
| RL-150 | 175.2 | 160.8 | 30 | 5500 | 4.0(40) | 3.5(35) | 0.10 | 9.7 |
| RL-200 | 312.5 | 290.4 | 35 | 5500 | 4.0(40) | 3.5(35) | 0.30 | 15.6 |

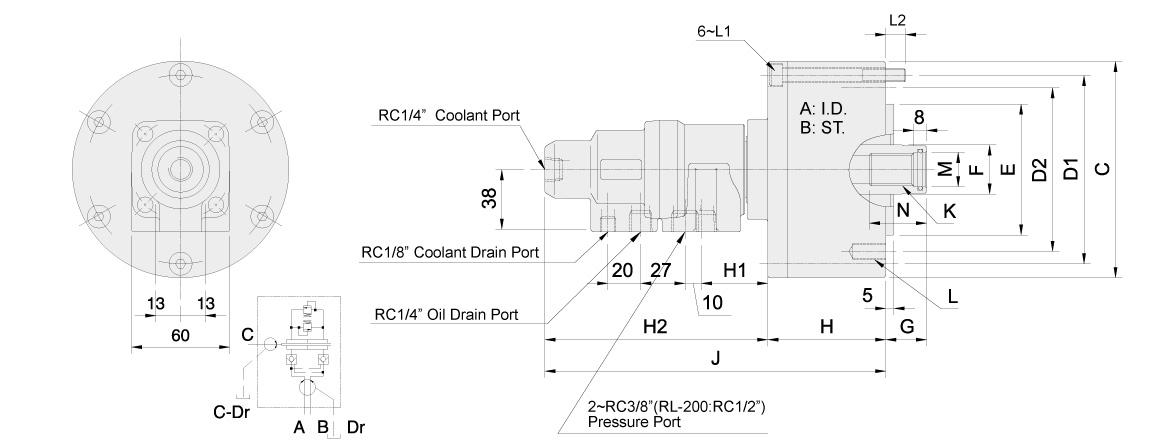

Dimensions
* Subject to technical changes.
| Model |
A | B | C | D1 | D2 | E (h7) | F | G max. | G min. | H | H1 | H2 | K | L | L1 | L2 | M (H8) | N |
| RL-75 |
75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 42 | 137 | M20x2.5 | 6~M8x16 | M8x60 | 12 | 21 | 35 |
| RL-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 42 | 137 | M20x2.5 | 6~M10x20 | M8x75 | 12 | 21 | 35 |
| RL-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 41 | 136 | M24x3.0 | 6~M12x20 | M8x85 | 12 | 25 | 45 |
| RL-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 39 | 134 | M30x3.5 | 12~M12x24 | M10x100 | 16 | 32 | 45 |
| RL-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 36 | 132 | M36x4.0 | 12~M16x30 | M10x125 | 21 | 38 | 60 |
