RE-A

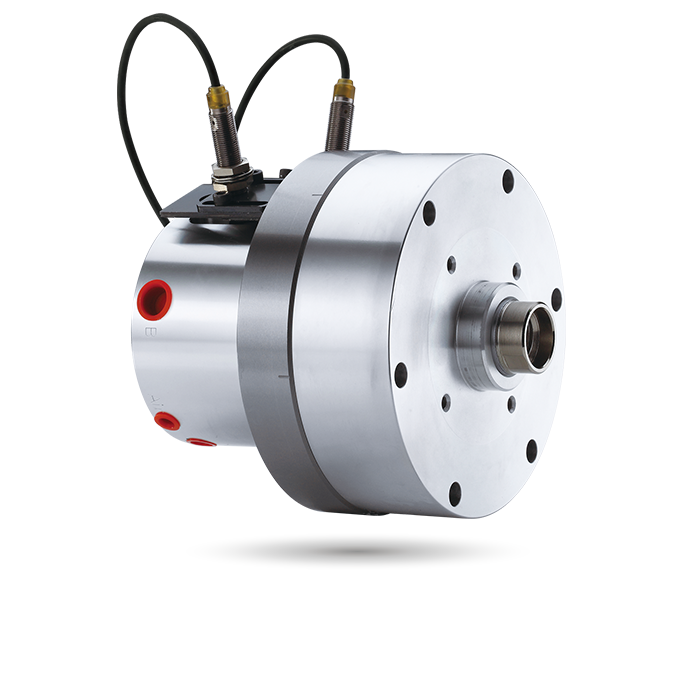

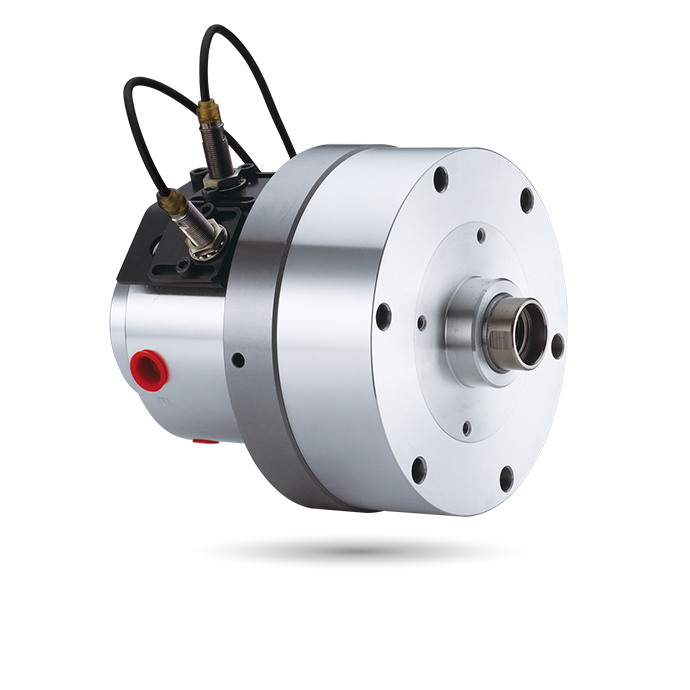

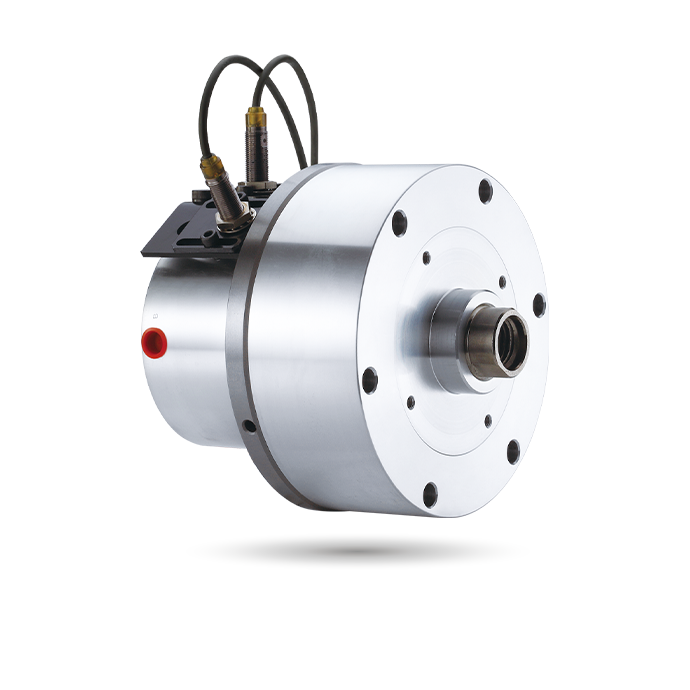

For short form, lightweight, and high-speed rotary cylinder. To allow compressed air to be fed from the rear end of the distributor through the rotating union, suitable for the vertical lathe.
Built-in safety check valves, pressure relief valves, and proximity sensors.
Can screw it from the rear end of the cylinder when mounting.

The drain port should be independently connected to the oil tank to avoid back pressure.

When used, a little oil mist should be contained.

The rotary cylinder should not run without air passing through the air port.

Stroke Detection Type can be customized to Linear Positioning System.

Proximity sensor : DC 10-30V 100mA NPN.

Specifications

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	Air connection max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)
RE-A110	91.2	87.9	20	6000	4.0(40)	0.8(8)	0.02	6.9
RE-A120	109.3	106	21	6000	4.0(40)	0.8(8)	0.02	8.8
RE-A130	128.9	123.1	30	6000	4.0(40)	0.8(8)	0.03	9.1
RE-A150	174.4	160.8	30	5500	4.0(40)	0.8(8)	0.06	14.9
RE-A200K	292.4	274.9	35	4000	4.0(40)	0.8(8)	0.19	29.1
RE-A200L	292.4	265.4	50	4000	5.0(50)	0.8(8)	0.21	30.4
RE-A250	465.2	438.2	60	2000	5.0(50)	0.8(8)	0.43	47.2

* Subject to technical changes.

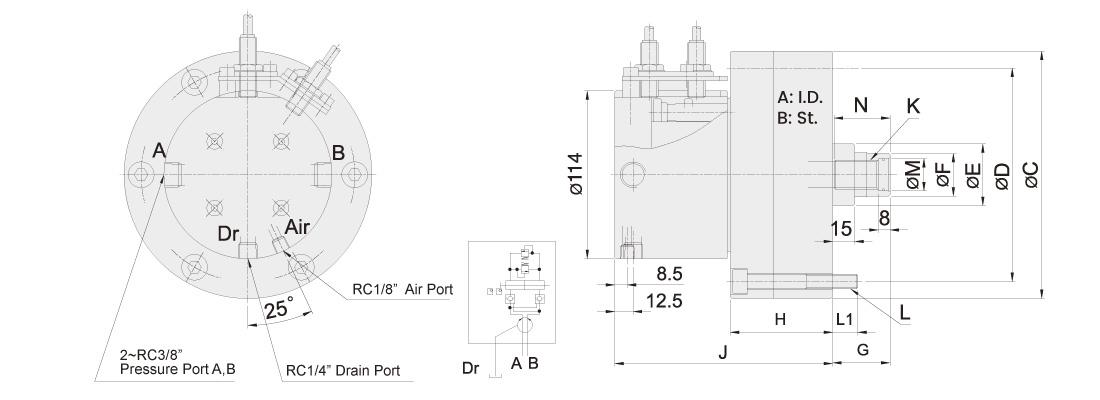

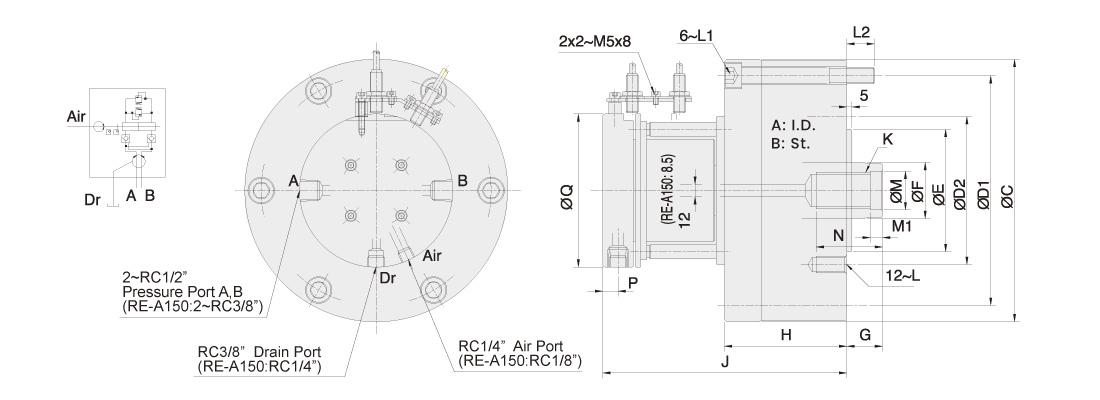

Model	A	B	C	C (h7)	D	D1	D2	E	E (h7)	F	G max.	G min.	H	J	K	L	L1	L2	M (H8)	M1	N	P	Q
RE-A110	110	20	-	145	128	-	-	42	-	29	60	40	66	146	M20x2.5	6~M8x70	12	-	22	-	38	-	-
RE-A120	120	21	-	168	145	-	-	42	-	29	60	39	69.5	148	M20x2.5	6~M10x75	17	-	22	-	38	-	-
RE-A130	130	30	-	168	150	-	-	50	-	33	60	30	79.5	158	M24x3.0	6~M10x85	17	-	27	-	43	-	-
RE-A150	150	30	205	-	-	180	130	-	110	45	60	30	99	177.5	M30x3.5	M12x24	M12x105	18.5	32	10	50	12.5	114
RE-A200K	195	35	257	-	-	225	145	-	120	55	73	38	120	239	M36x4.0	M16x30	M16x130	27	38	12	65	15	150
RE-A200L	195	50	257	-	-	225	170	-	125	65	80	30	135	254	M42x3.0	M16x30	M16x145	27	45	12	65	15	150
RE-A250	245	60	307	-	-	275	220	-	160	65	85	25	165	280	M42x3.0	M20x35	M16x175	28	45	12	65	15	150
