RC

Rotating Joint

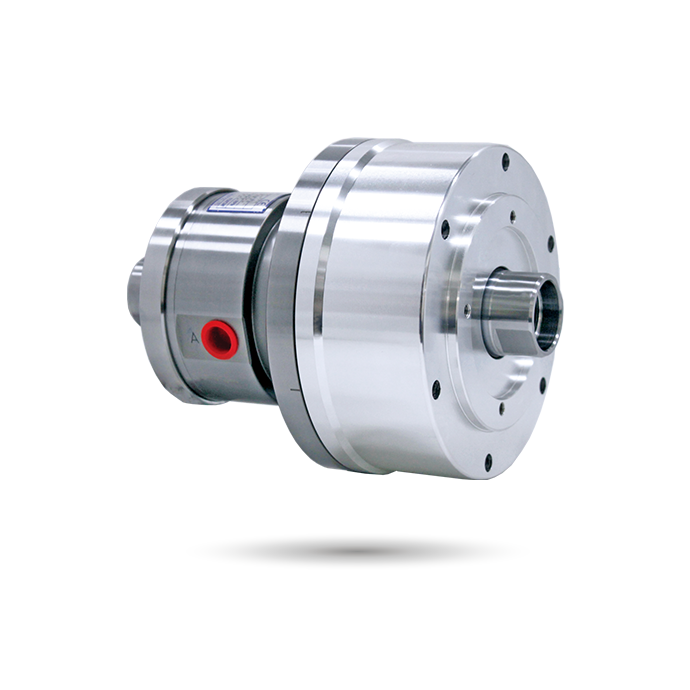

Hydraulic Cylinder with Rotating Joint

Rotating Joint

Center through-hole hydraulic cylinder, suitable for horizontal CNC lathes.
Can choose an external rotary joint with either single or double paths.
It meets the demand for coolant through spindle and airtight pressure detect function.
Has a buil-in check valve for safety.
Stroke control via proximity switch or linear positioning system.

The proximity switch and single or double paths rotating joint are optional.

Please contact AUTOGRIP for more detailed drawing.

Catalog Download

Specifications

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1(r.p.m.)	Max. pressure MPa(kgf/cm²)	I kg‧m²	Weight (kg)
RC-85	43.8	48.1	20	5000	3.5(35)	0.01	6.8
RC-100	65.6	64.4	20	5000	3.5(35)	0.02	9.2
RC-125	109.8	108.5	25	5000	3.5(35)	0.03	11.1
RC-145	152.2	143.9	30	5000	3.5(35)	0.03	14.6
RC-200	279.3	273.6	35	4000	4.0(40)	0.26	35.5

Dimensions

* Subject to technical changes.

MODEL	A	B	C1	C2	D	E(h7)	F	G1max.	G1min.	G2max.	G2min.	H	J	K	L1	L2	M H8	M1	N	P	Q	Q1	R	S1	S2	T1	T2
RC-85	85	20	120	116	100	65	30	45	25	28	8	70	150	M20x1.5	6~M8x75	12.5	20.5	10	40	14	4	3	RC3/8	31	M4x10	48	M5x9
RC-100	100	20	135	131	115	80	40	45	25	28	8	72	158.5	M30x1.5	6~M8x75	12.5	32	10	50	14	4	3	RC3/8	31	M4x10	48	M5x9
RC-125	125	25	160	156	140	110	40	50	25	33	8	78	164	M30x1.5	6~M8x80	11	32	10	50	14	4	3	RC3/8	31	M4x10	48	M5x9
RC-145	145	30	187	183	165	110	50	55	25	38	8	89.5	169.5	M40x1.5	6~M10x90	18	42	12	57	14	4	3	RC3/8	31	M4x10	48	M5x9
RC-200	195	35	257	257	225	120	55	73	38	51.5	16.5	120	222.5	M36x4.0	6~M16x130	26	38	12	65	15	6.5	4	RC1/2	35	M4x10	60	M5x11

* The proximity switch and rotary joiint are optional. Choose and attach the appropriate type. Please contact AUTOGRIP for more detailed drawing.

Download

Model	2D pdf	2D dwg	3D step
RC-85
RC-100
RC-125
RC-145
RC-200
