FA

Single-Slide

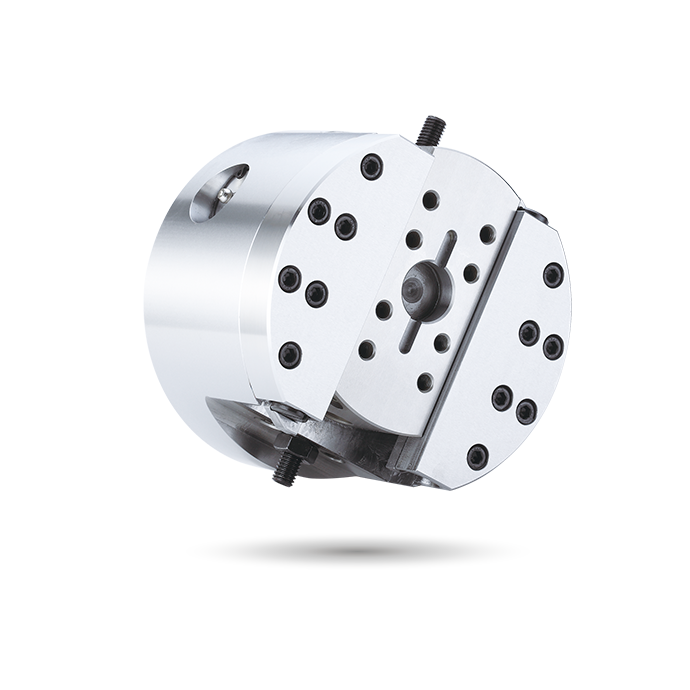

Single Slide Facing Head

Single-Slide | WEDGE PLUNGER

The feed mechanism is Wedge Plunger, with a steady feed speed. Simple adjustment for feed speed and stroke.
Matching surfaces of all parts hardened, grounded, and lubricated directly. With rigidity and durability.
Stopper accuracy: ±0.03mm.

Suitable for using with RS type cylinder.

For precision processes, Wedge Plunger type facing heads are suitable for using with electro servo and ball screw mechanism.

Catalog Download

Specifications

Model	Plunger stroke(mm)	Slider stroke(mm)	Max. speed min^-1(r.p.m.)	Max. D.B. pull kN (kgf)	Weight(kg)	Matching cylinder	Max. pressure MPa(kgf/cm²)
FA-610	18	10	1200	2.8(280)	14.5	RS-6520N	1.0(10)
FA-812	21	12	800	4.4(450)	28.5	RS-6530N	1.6(16)

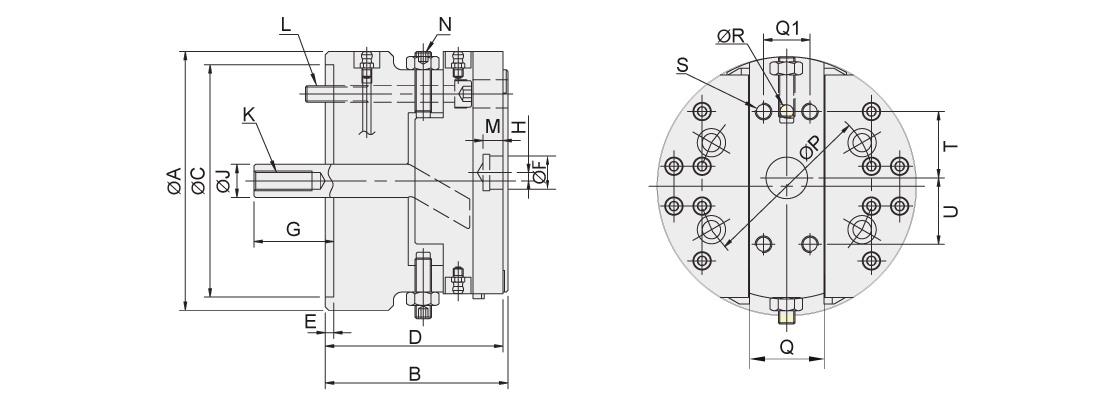

Dimensions

* Subject to technical changes.

Model	A	B	C(h6)	D	E	F(H7)	G max.	G min.	H	J	K	L	M	N	P	Q	Q1	R(H8)	S	T	U
FA-610	156	110	140	107	5	20	66	48	±5	20	M12x1.75	4~M10x90	12	2~M10x45	104.8	45	28	8	4~M10x16	40	40
FA-812	198	130	170	127	5	25	84	63	±6	25	M16x2.0	4~M12x105	12	2~M12x60	133.4	54	32	10	4~M10x16	50	50

Download

Model	2D pdf	2D dwg	3D step
FA-610
FA-812
