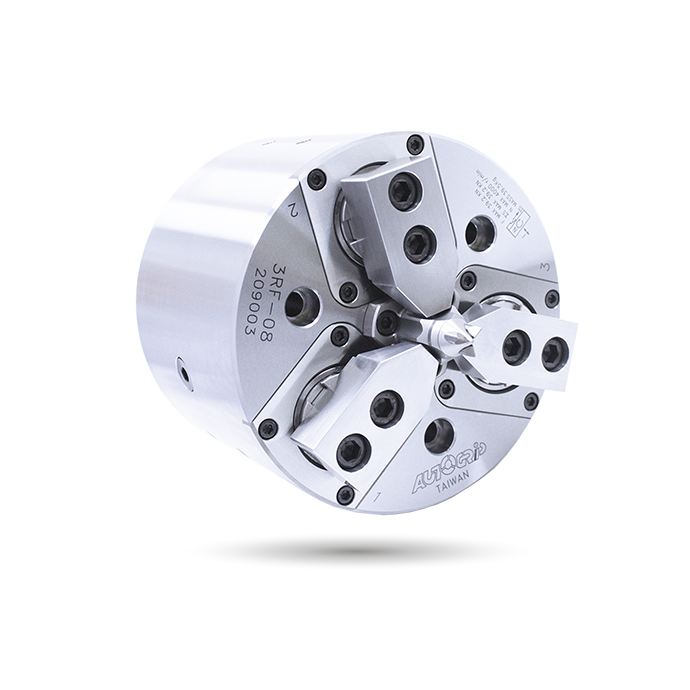

3RF

The workpiece compensation of eccentric is 1mm, fixed position for the center, swing and grasp the workpiece to three jaw.
Second machining can be performed without reversing the workpiece, thus significantly reducing setup time.
With compensating jaws clamping, the Rough and precision machining can be carried out.
With sealed design, the maintenance costs can be reduced.
Can be paired with double-rod rotary cylinder (3RF-D type).
The driver pin thrust can be controlled by the pressure of the rotary cylinder (3RF-D type).

Specifications

Model	Plunger stroke (mm)	Jaw stroke (Dia.) (mm)	Chucking Dia. Max. (mm)	Chucking Dia. Min. (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN (kgf)	Max. speed min^-1(r.p.m.)	I kg‧m²	Weight (kg)	Matching cyl.	Compensation (mm)
3RF-08	43.5	9.4	70	18	39.2(4000)	39.2(4000)	4000	0.15	30	RS-1250	1
3RF-08D	43.5	9.4	70	18	39.2(4000)	39.2(4000)	4000	0.15	30	RDL-160S	1

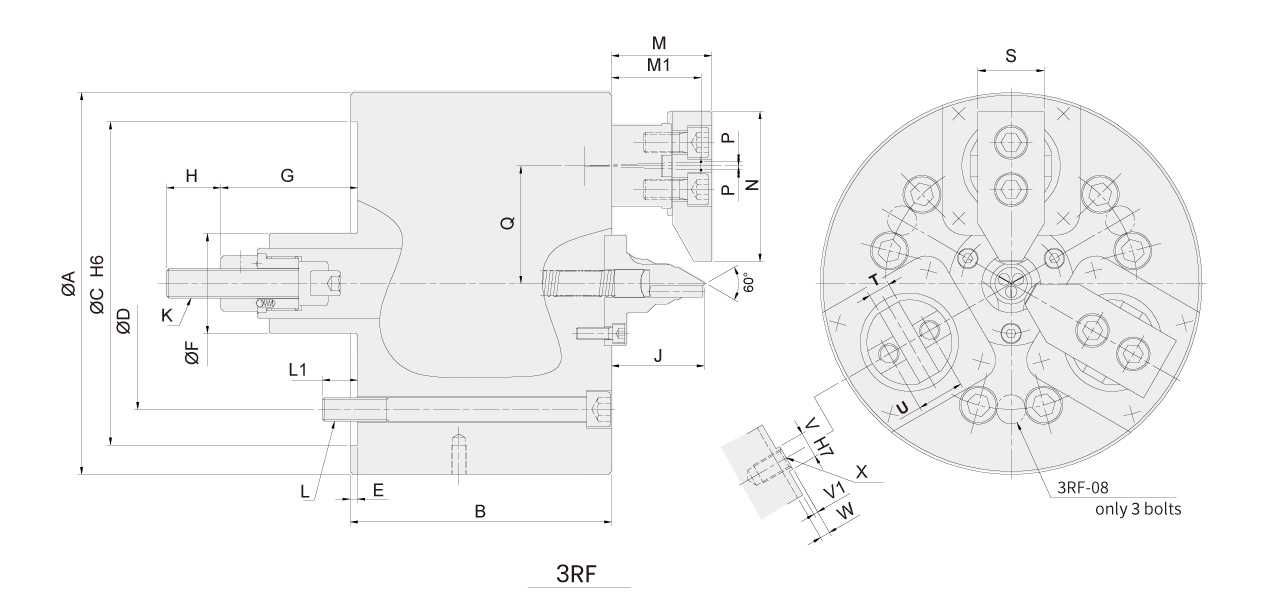

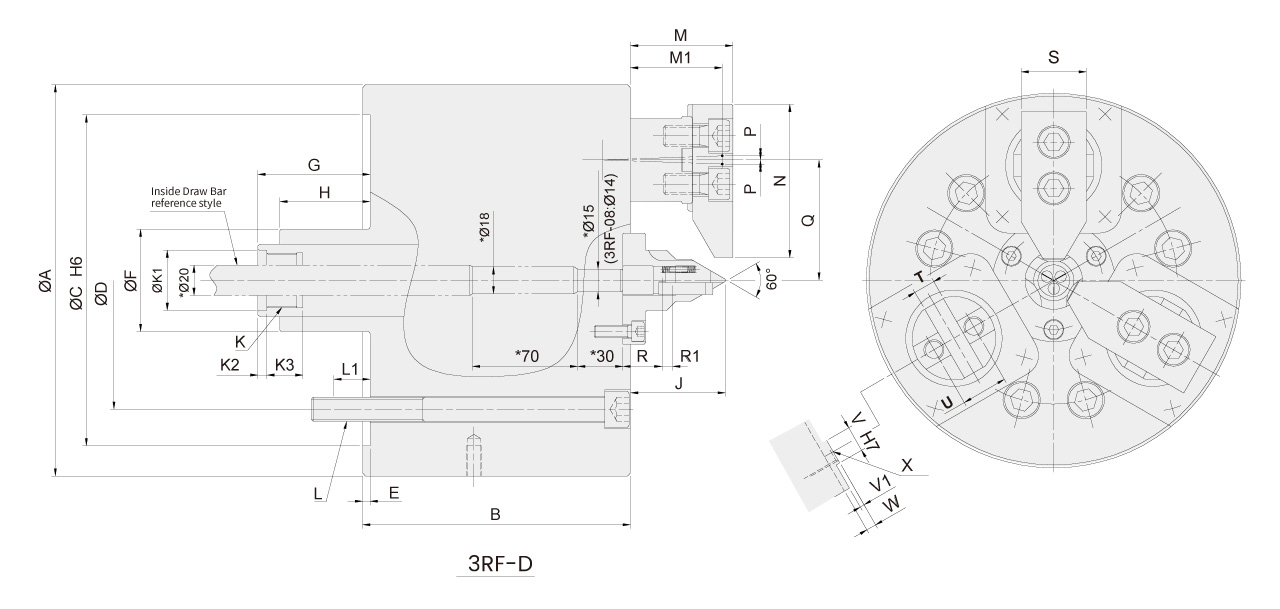

Model	A	B	C (H6)	D	E	F	G max.	G min.	H	J	K	K1 (H7)	K2	K3	L	L1	M	M1	N	P	Q	R	R1 max.	R1 min.	S	T (H7)	U	V	V1	W	X
3RF-08	210	155	170	133.4	5	68	123	79.5	37	58	M20x2.5	-	-	-	3~M12	18	62	58	78	2.35	62	-	-	-	40	12	28	16	3	7	M12
3RF-08D	210	155	170	133.4	5	68	98	54.5	50	58	M36x1.5	40.5	6	24	3~M12	18	62	58	78	2.35	62	25.5	7	0	40	12	28	16	3	7	M12
