2H/2H-A

Thru-Hole | 2-JAW
https://www.autogrip-machinery.com/web/image/product.template/59/image_1920?unique=06e4c57

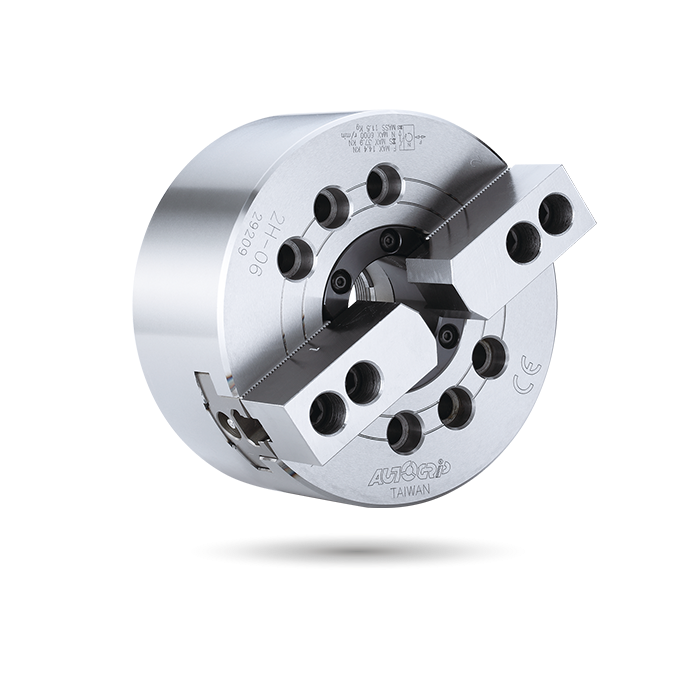

THRU-HOLE POWER CHUCK

Thru-Hole | 2-JAW
  • WEDGE-HOOK type 2-jaw with the through-hole.
  • Matching surfaces of all parts hardened, ground and lubricated directly.
  • High rigidity and high repeatability precision.

J is the hole diameter of blank draw nut.

If not notified, AUTOGRIP will adopt the K Default as K value.

K is the maximum thread specification and it could be customize.

Catalog Download

This combination does not exist.


 SpecificationsDimensions Download ApplicationsRelated Accessories


 Specifications

Model -
 Plunger
stroke
(mm)
Jaw stroke
(Dia.)
(mm)
Chucking
Dia. Max.
(mm)
Chucking
Dia. Min.
(mm)
Max. D.B.
pull
kN (kgf)
Max.
clamping
force
kN (kgf)
Max. speed
min-1 (r.p.m.)
I
kg‧m 2
Weight
(kg)
Weight
(kg)
Matching cyl.Max. pressure
MPa (kgf/cm2)
2H-12
 A8
 2510.63043436.7
(3740)
95.8
(9780)
33000.7059.762.7TK-A12911.7(17)
2H-15
A8
23
10.63815046.9
(4790)
119.6
(12200)
25002.42115129TK-A15121.5(15)
2H-15
A11
2310.6
381
50
 46.9
(4790)
 119.6
(12200)
2500
2.34
115
122
TK-A1512
1.5(15)

* The dimensions and the specifications of 2H-A are in the orange data.

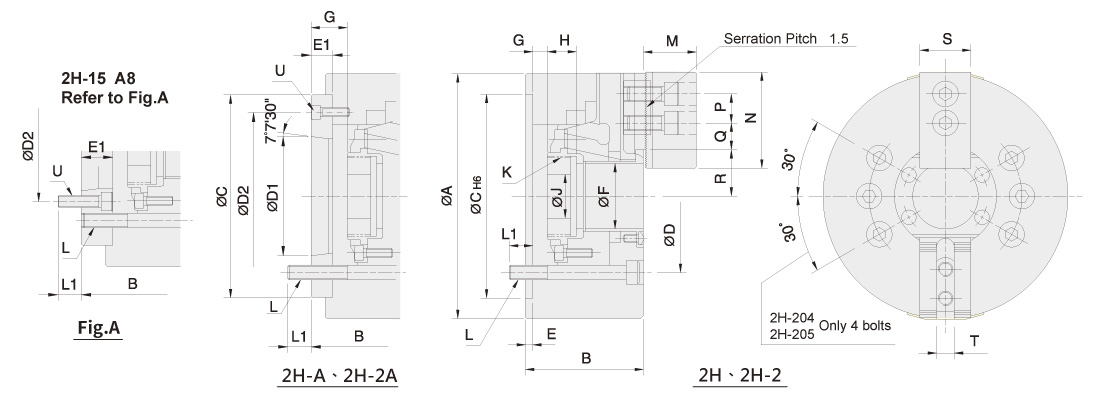

Dimensions

* Subject to technical changes.

Model
 -
 A
BBCDD1D2EE1FG max.G max. G min.G min.HJK max.K DefaultLL1L1MNPQ max.Q min.R max.R min.STU
2H-12
 A8
 304
110122220171.4139.72190618911028-153
2850M100x2M100x26~M16 23  25511303044.7514.7561.35650213~M8
2H-15
A8
381
133
160
300
235
139.72
171.46331201144-1221
3960M130x2
M115x2
M130x2
M100x2
6~M20
3024631654347.318.28074.76225.5
or
22		6~M16
2H-15
A11
381
133
149
300
235
196.87
2606221201133-1210
3960M130x2
M130x2
6~M20
3028631654347.318.28074.76225.5
or
22		3~​M10

* The dimensions and the specifications of 3H-A are in the orange data.


Download

Model 2D pdf 2D dwg3D step
2H-12


2H-12A8

2H-15



2H-15A8



2H-15A11
