SRB

Side-Mounted type
https://www.autogrip-machinery.com/web/image/product.template/122/image_1920?unique=06e4c57

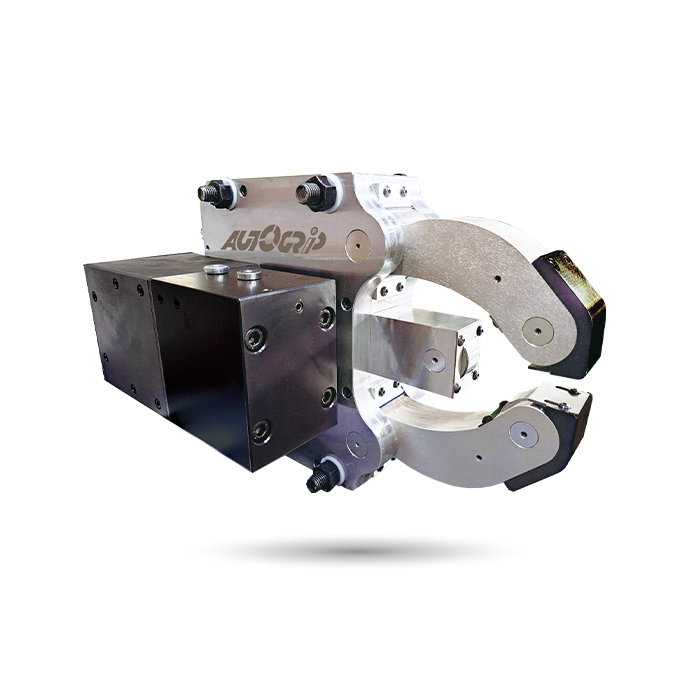

Self-Centering Steady Rest

Side-Mounted type
  • Side-Mounted Hydraulic Cylinder Steady Rest.
  • Fully Sealed Body, Low Maintenance.
  • Optional Water/Air Jet for Chip Removal and Cooling Functionality.
  • Compact Size and Structure.
  • Range: 12-245 mm.
Catalog Download

    This combination does not exist.


    SpecificationsDimensions DownloadRelated Accessories


    Specifications

    Model Eff. piston area
    cm2
    		Chucking Dia. Max.
    (mm)
    		Chucking Dia. Min.
    (mm)
    		Max. clamping force
    kN (kgf)
    		Max. roller surface speed
    M/min.
    		Max. pressure
    bar
    		Clamping accuracy
    mm
    		Repeat accuracy
    mm
    		clamping weight
    (kg)
    		Weight
    (kg)
    SRB-03
    		38.51521210.2(1040)
    		850550.040.007100044
    SRB-04
    		63.52453015(1529)
    		750750.050.0071500115

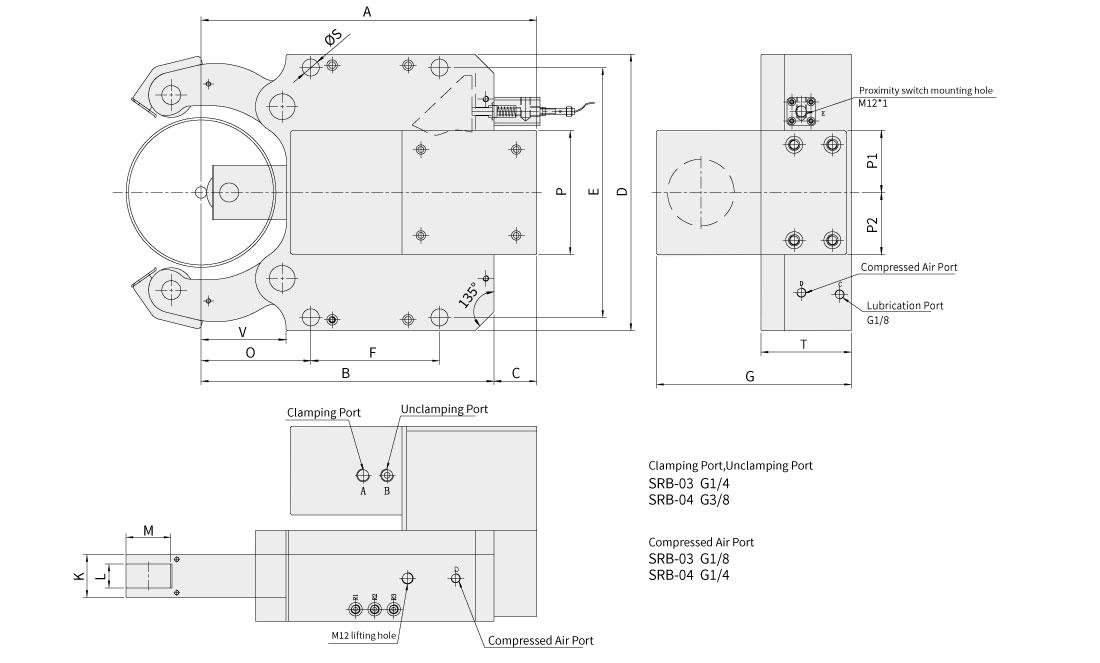

    Dimensions

    * Subject to technical changes.

    Model ABCDEFGOKL
    (Width of rollers)
    		M
    (Diameter of rollers)
    		PP1P2STV
    SRB-03
    		35230745290262135204.51154525471306565189589
    SRB-04
    		48044832405365240245146602552150757523110128



    Download

    Model 2D pdf 2D dwg3D step
    SRB-03



    SRB-04
