SM

INTEGRATED STATIONARY CHUCKS

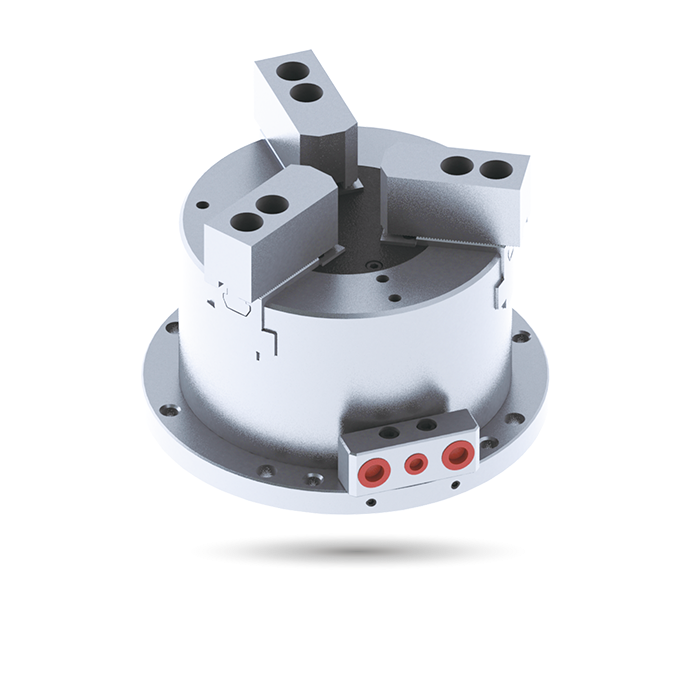

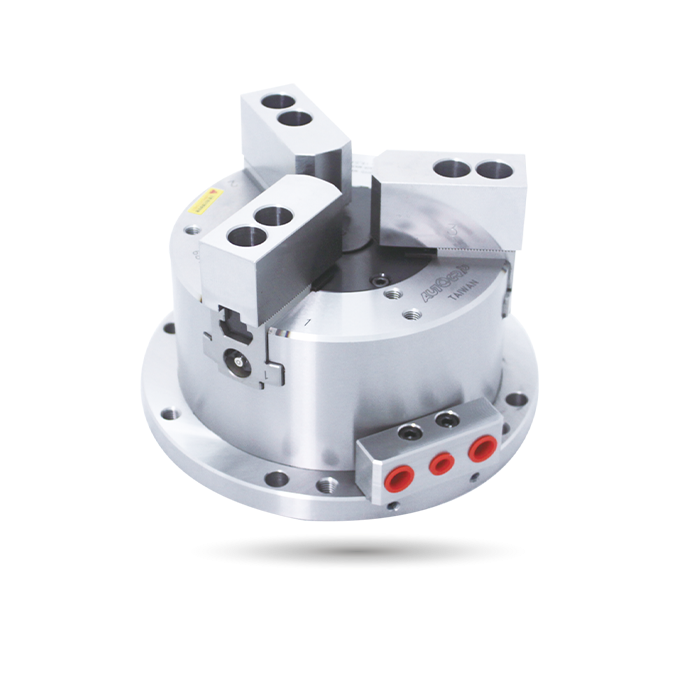

Long jaw stroke Stationary Chuck

Non-Thru-Hole | 3-JAW

WEDGE-HOOK type 3-jaw power chuck, and extra long jaw stroke.
Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
Easy to install. Installing the tubes and then operating.
Thin and compact design.
Use standard soft jaws or standard hard jaws.

Equipped with Airtight pressure detection function.

Catalog Download

Specifications

Model	Jaw stroke (Dia.) (mm)	Chucking Dia. Max.(mm)	Chucking Dia. Min.(mm)	Max. clamping force Pneumatic kN(kgf)	Max. clamping force Hydraulic kN(kgf)	Max. pressure Pneumatic MPa (kgf/cm²)	Max. pressure Hydraulic MPa (kgf/cm²)	Min. pressure kgf/cm²	Air consumption lit(at 6.0 kgf/cm²)	Weight (kg)
SM-306	13.1	168	14	18.0(1830)	32.2(3280)	0.7(7)	1.2(12)	2	1.5	18.7
SM-308	16	210	18	26.2(2670)	45.0(4590)	0.7(7)	1.2(12)	2	2.7	32.5
SM-310	19.6	254	20	37.0(3772)	63.0(6422)	0.7(7)	1.2(12)	2	4.6	53.6

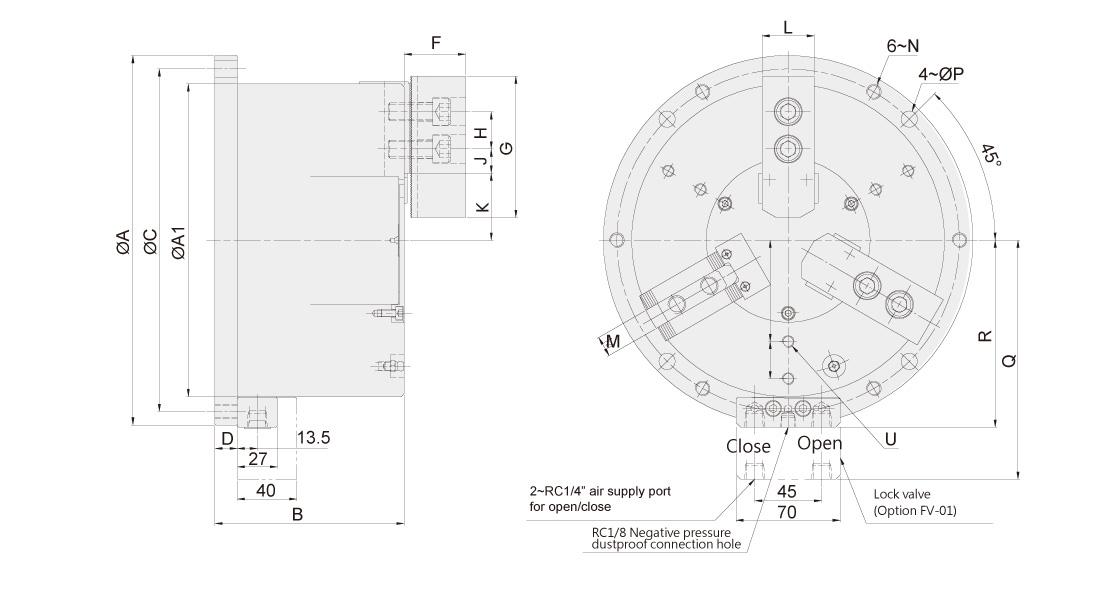

Dimensions

Model	A(h7)	A1	B	C	D	F	G	H	J max.	J min.	K max.	K min.	L	M	N	P	Q	R	S	T
SM-306	206	168	110	188	15	40	73	20	16.75	4.75	39	32.45	31	12	M10x1.5	11	139.5	104.5	55	18
SM-308	248	210	127	230	15	41	95	25	23.75	8.75	45	37	35	14	M10x1.5	11	160.5	125.5	68	25
SM-310	300	254	145	280	16	46	110	30	36.75	14.25	50	40.2	40	16	M12x1.75	13	182.5	147.5	85	30

* Subject to technical changes.

Download

Model	2D pdf	2D dwg	3D step
SM-306
SM-308
SM-310
