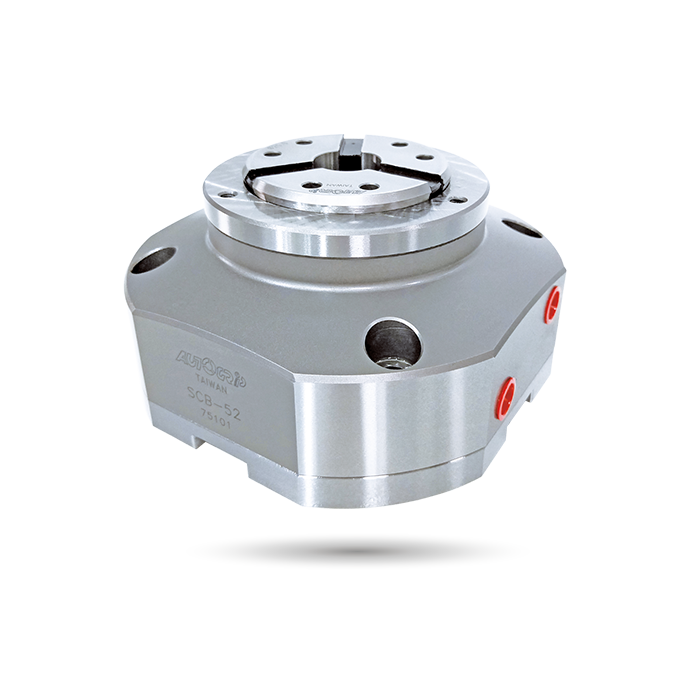

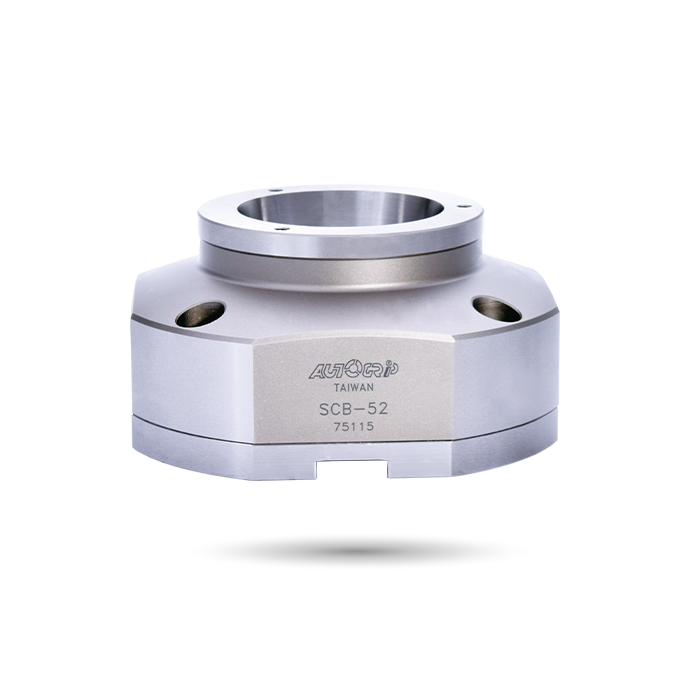

SCB

Build-in cylinder, ideal for drilling machines, milling machines and machining centers.
Work with Autogrip’s rubber collet(RG series), quick change and saving runtime.
Two modes for the media supply: side-supply mode or baseplate-supply mode.

Specifications

Model	Jaw stroke(Dia.) (mm)	Max. Chucking Capacity (mm) Round	Max. Chucking Capacity (mm) Hexagom	Max. Chucking Capacity (mm) Square	Max. clamping force Pneumatic kN(kgf)	Max. clamping force Hydraulic kN(kgf)	Max. pressure Pneumatic MPa (kgf/cm²)	Max. pressure Hydraulic MPa (kgf/cm²)	Weight (kg)	Matching Stell Collet
SCB-52	±0.5	4~52	7~45	7~36	8.2(837)	101(10300)	0.6(6)	4.0(40)	8.6	RG-52
SCB-65	±0.5	4~65	8~56	8~46	10(1020)	105(10700)	0.6(6)	4.2(42)	10.2	RG-65

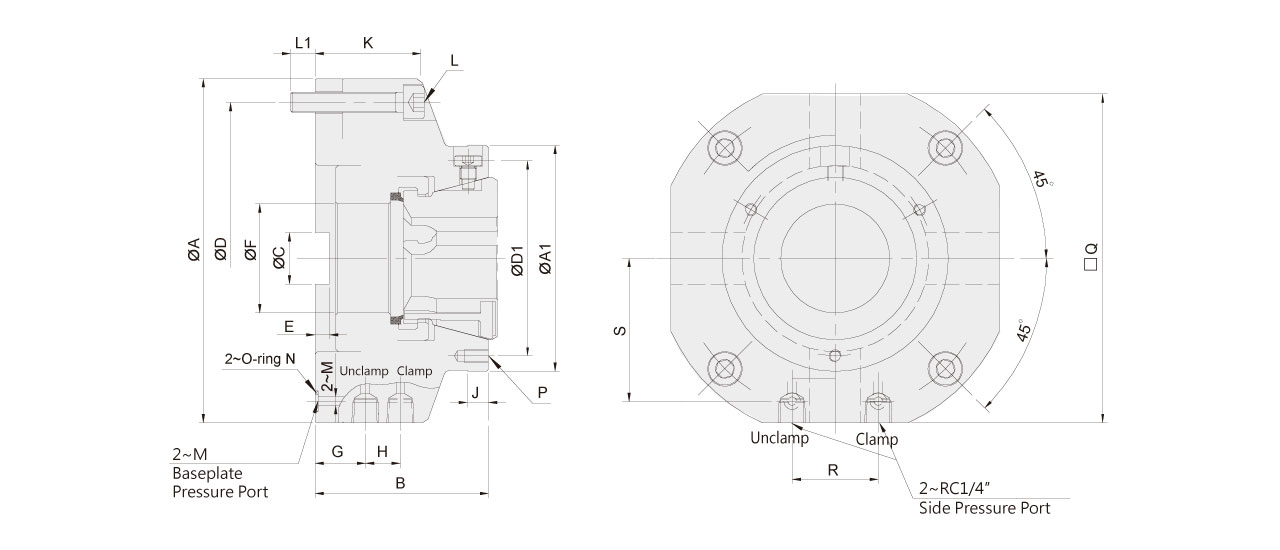

Model	A(g6)	A1	B	C	D	D1	E	F	G	H	J	K	L	L1	M	N	P	Q	R	S
SCB-52	175	110	84.5	25	152	95	7	53	24.5	17	10	51.5	4~M10	12	4.2	P7	3~M6x12	160	42	69.5
SCB-65	192	130	94	30	169	114	9	66	26.5	20	10	61.5	4~M10	12.5	4.2	P7	3~M6x12	175	50	77
