RV

Hydraulic
https://www.autogrip-machinery.com/web/image/product.template/39/image_1920?unique=06e4c57

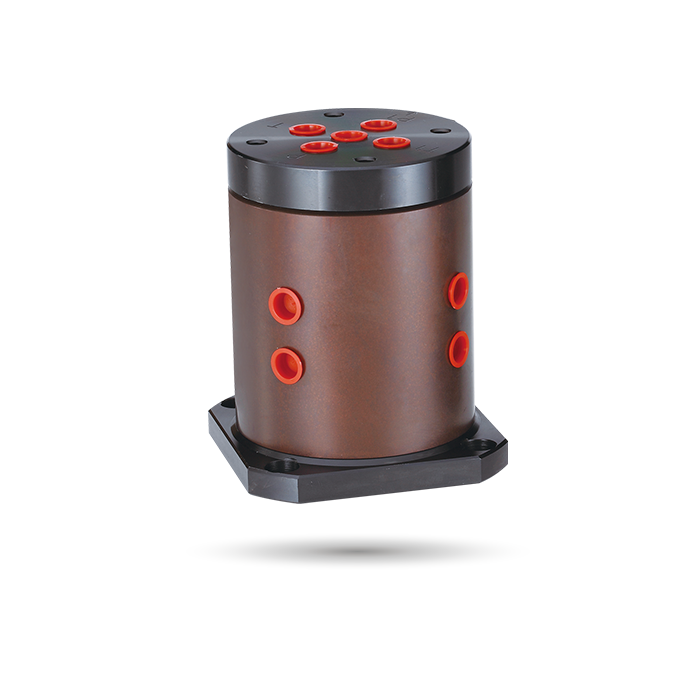

Hydraulic Rotary Valve

Hydraulic
  • Hydraulic Rotary valves is used for clamping the cylinder on the rotary table.
  • Through unique design, Rotary hydraulic valves can make the rotary housing be rotated with light force and is free from oil leaking.
  • I Type is a single circuit that controls the clamping.
  • II Type is a double circuit that separately controls the clamping.
  • The drain port of the RV type should be independently connected to the oil tank to avoid back pressure.
Catalog Download

    This combination does not exist.


     SpecificationsDimensions Download產品應用Related Accessories


     Specifications

    Model Distributing
    		Max. pressure
    MPa (kgf/cm2)
    		Weight (kg)
    RV-31H
    		4 (by order) 4.0(40)
    		7.4

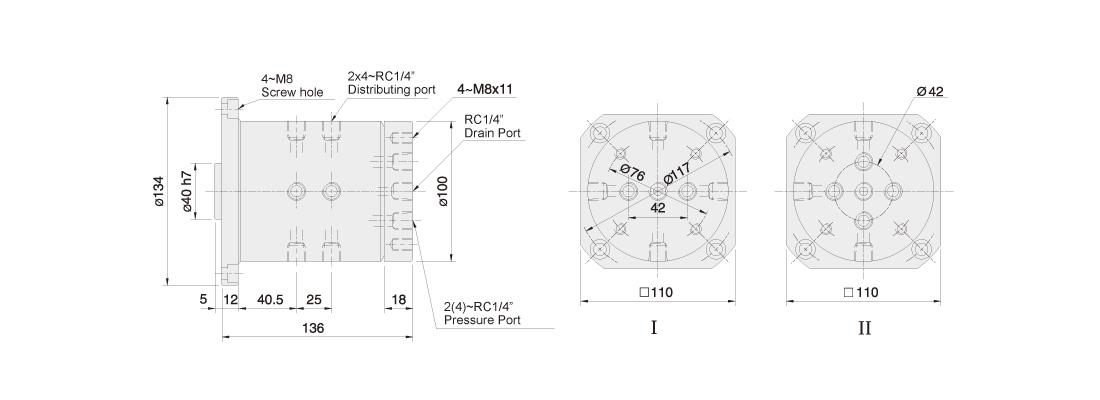

    Dimensions

    * Subject to technical changes.



    Download

    Model 2D pdf 2D dwg3D step
    RV-31H
