RV-A

Air
https://www.autogrip-machinery.com/web/image/product.template/40/image_1920?unique=06e4c57

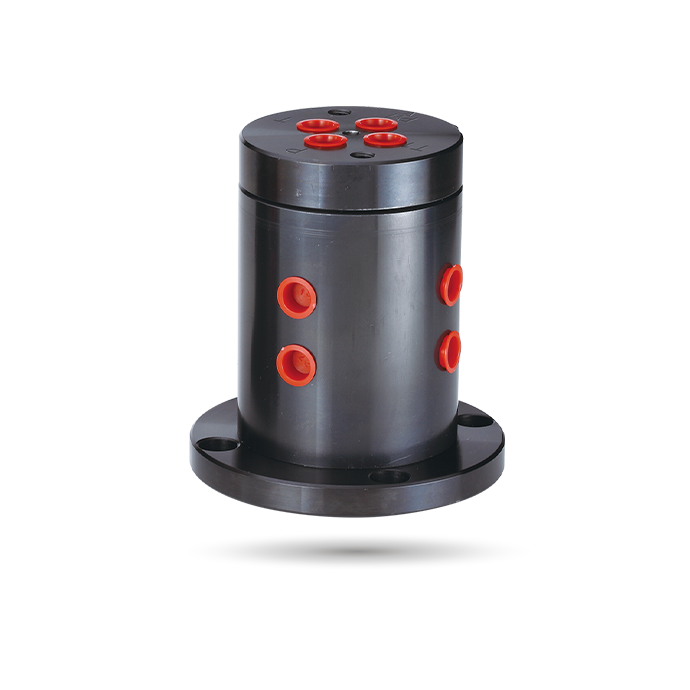

Air Rotary Valve

Air / Pneumatic
  • Air rotary valves is used for clamping cylinder on rotary table.
  • Through unique design, pneumatic rotary valves can make the rotary housing be rotated with light force and is free from oil leaking.
  • I Type is a single circuit which controls the clamping.
  • II Type is a double circuit which separately controls the clamping.
Catalog Download

    This combination does not exist.


     SpecificationsDimensions DownloadRelated Accessories


     Specifications

    Model Distributing
    		Max. pressure
    MPa (kgf/cm2)
    		Weight
    (kg)
    RV-A31H
    		4 (by order) 0.8(80)
    		4.8

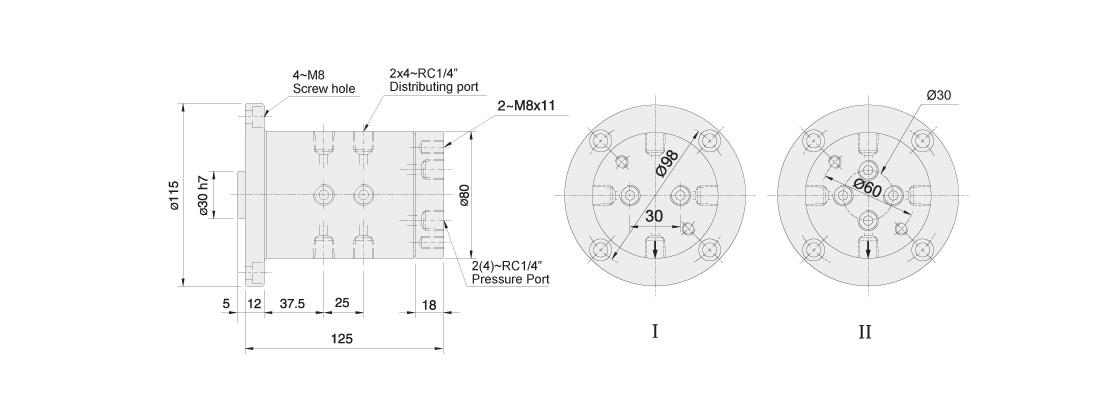

    Dimensions

    * Subject to technical changes.



    Download

    Model 2D pdf 2D dwg3D step
    RV-A31H
