RS-N

Stroke Control

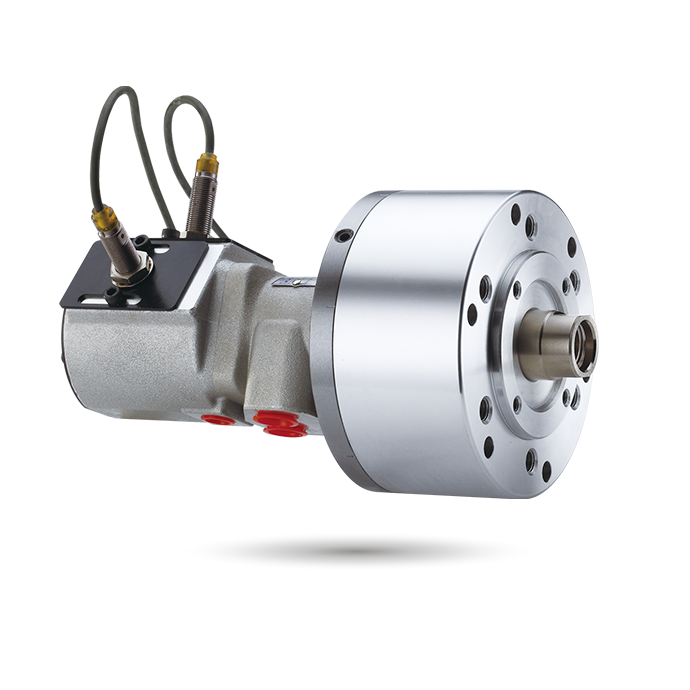

Short type Rotary Hydraulic Cylinder with Stroke Control

Non-Thru-Hole | Hydraulic

For short form, high speed and stroke control.
With proximity sensor , the movement of the position is easy to adjust and confirm when operating.
Can screw it from the rear end of the cylinder when mounting.

The drain port should be independently connected to oil tank to avoid back pressure.

Stroke Detection Type can be customized to Linear Positioning System.

Catalog Download

Specifications

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)
RS-6520N	32.0	28.3	20	6000	4.0(40)	0.01	3.2
RS-6530N	32.0	28.3	30	6000	4.0(40)	0.01	3.3
RS-75N	43.0	37.1	15	6000	4.0(40)	0.01	3.3
RS-7530N	43.0	37.1	30	6000	4.0(40)	0.013	3.7
RS-100N	77.4	71.5	20	6000	4.0(40)	0.04	4.8
RS-125N	121.6	113.1	25	6000	4.0(40)	0.05	7.3
RS-150N	175.6	160.8	30	5500	4.0(40)	0.16	10.6
RS-200N	313.0	290.4	35	5500	4.0(40)	0.29	15.9

Proximity sensor : Model IFS287(IFM) DC 10-30V 100mA NPN .

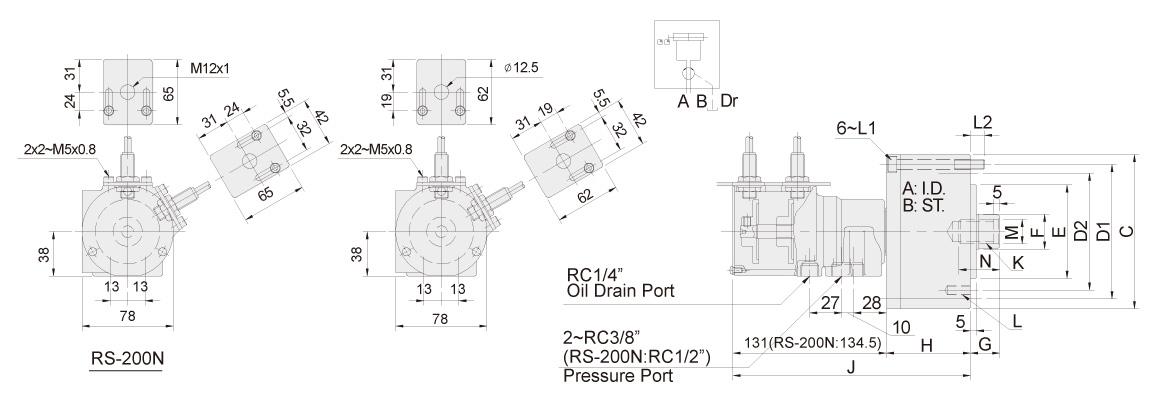

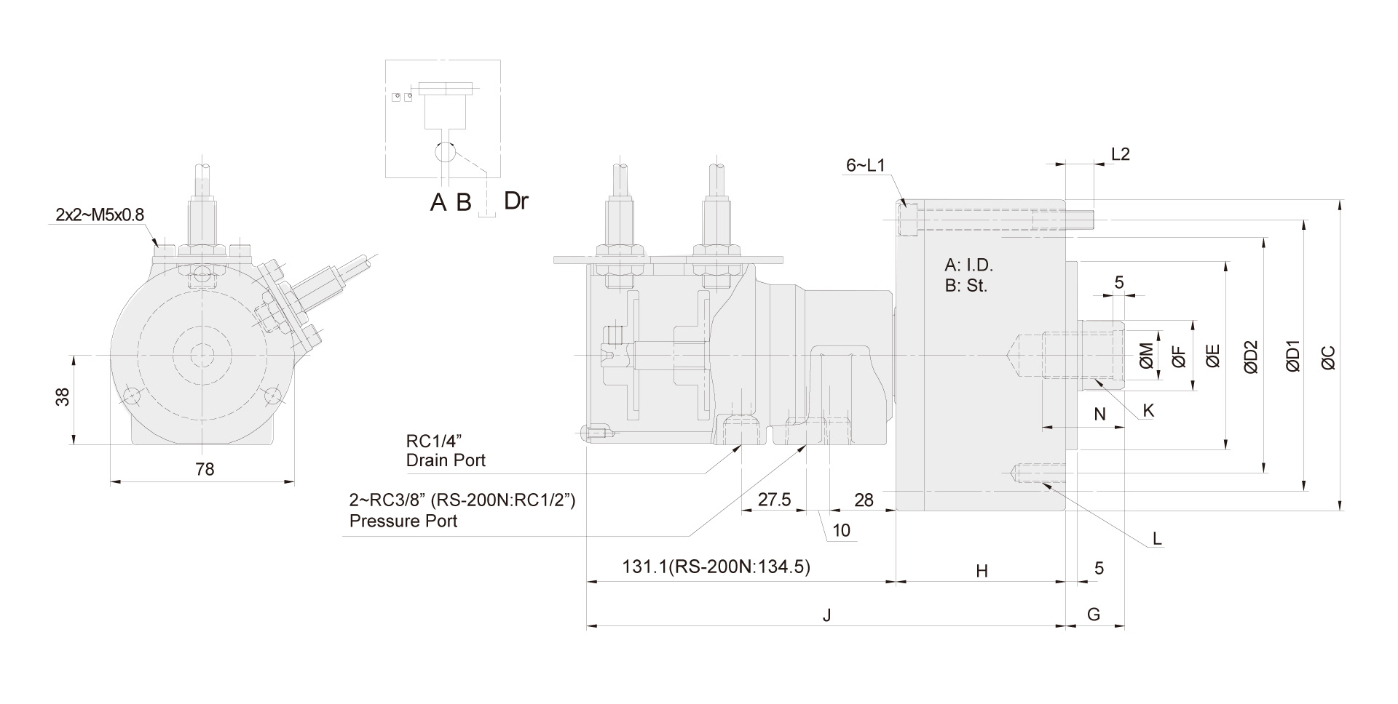

Dimensions

* Subject to technical changes.

Model	A	B	C	D1	D2	E (h7)	F	G max.	G min.	H	J	K	L	L1	L2	M (H8)	N
RS-6520N	65	20	97	80	80	60	25	45	25	62	193	M16x2.0	6~M8x16	M6x70	14.5	17	30
RS-6530N	65	30	97	80	80	60	25	45	15	62	203	M16x2.0	6~M8x16	M6x80	14.5	17	30
RS-75N	75	15	107	90	90	65	30	45	30	57	188	M20x2.5	6~M8x16	M8x60	12	21	35
RS-7530N	75	30	107	90	90	65	30	45	15	72	203	M20x2.5	6~M8x16	M8x75	12	21	35
RS-100N	100	20	132	115	100	80	30	45	25	72	203	M20x2.5	6~M10x20	M8x75	12	21	35
RS-125N	125	25	160	140	130	110	35	50	25	82	213	M24x3.0	6~M12x20	M8x85	12	25	45
RS-150N	150	30	190	170	130	110	45	55	25	95	226	M30x3.5	12~M12x24	M10x100	16	32	45
RS-200N	200	35	245	220	145	120	55	70	35	115	249.5	M36x4.0	12~M16x30	M10x125	21	38	60

Download

Model	2D pdf	2D dwg	3D step
RS-6520N
RS-6530N
RS-75N
RS-7530N
RS-100N
RS-125N
RS-150N
RS-200N
