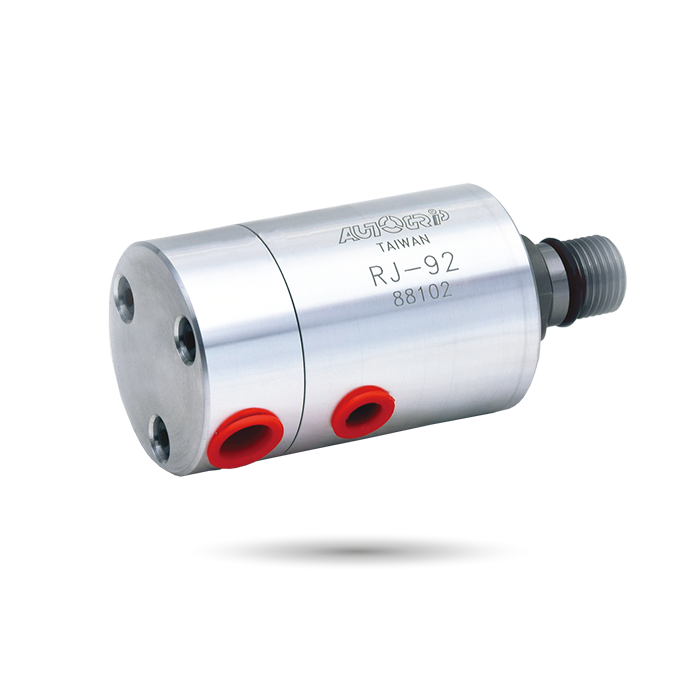

RJ-92

Coolant Rotating Joint
https://www.autogrip-machinery.com/web/image/product.template/121/image_1920?unique=06e4c57

Coolant Rotating Joint

Coolant Joint
  • Short form, light weight coolant rotating joint.
  • Coolant joint for high speed, high pressure.Usable for oil and water-soluble coolant.
  • Seal bushing inside is made of cemented carbide and ceramics,which provide higher wear-resistance.
  • The seal will depart automatically if no liquid passes during,operation, and will not be dmaged due to dry touching.
  • Min. pressure is 4kgf/cm2.
Catalog Download

    This combination does not exist.


    Dimensions DownloadRelated Accessories


    Dimensions

    * Subject to technical changes.

    ModelPV Limit value
    (MPa‧r/m)    		Delivery amount
    (at 50 kgf/cm2)    		Max. speed
    (r.p.m.)    		Max. pressure
    Mpa( kgf/cm2)    		Min. pressure
    Mpa( kgf/cm2)    		Weight
    (kg)
    RJ-921750028l/min100007.0(70)0.4(4)0.46



    Download

    Model 2D pdf 2D dwg3D step
    RJ-92
