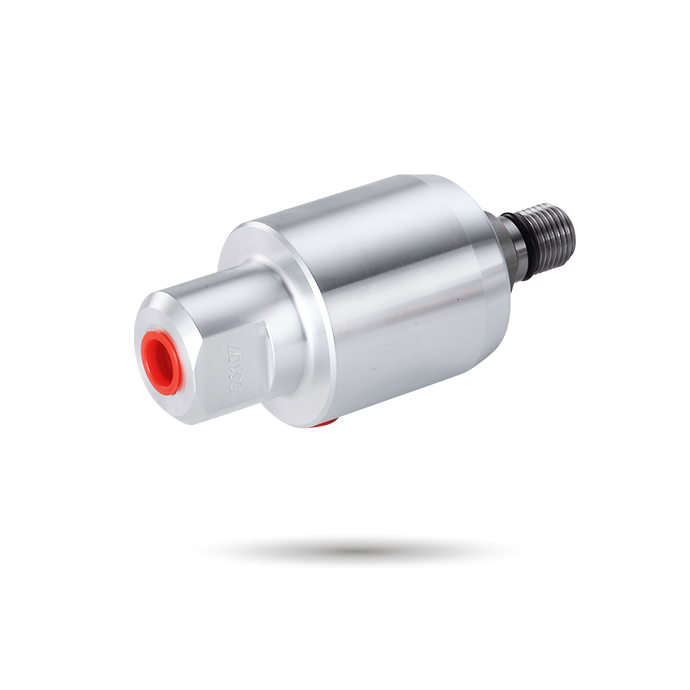

RJ-52

Single channel design: Engineered for reliable fluid transmission through one path for air or water mediums.
Wide application: Suitable for compressed air, cooling water, and other single-medium fluids.
Compact and easy to install: Small size fits well in limited-space rotating equipment.
Excellent sealing performance: High-quality sealing prevents leakage and ensures long service life.
Supports high-speed rotation: Designed to maintain stability and safety under high-speed rotational motion.

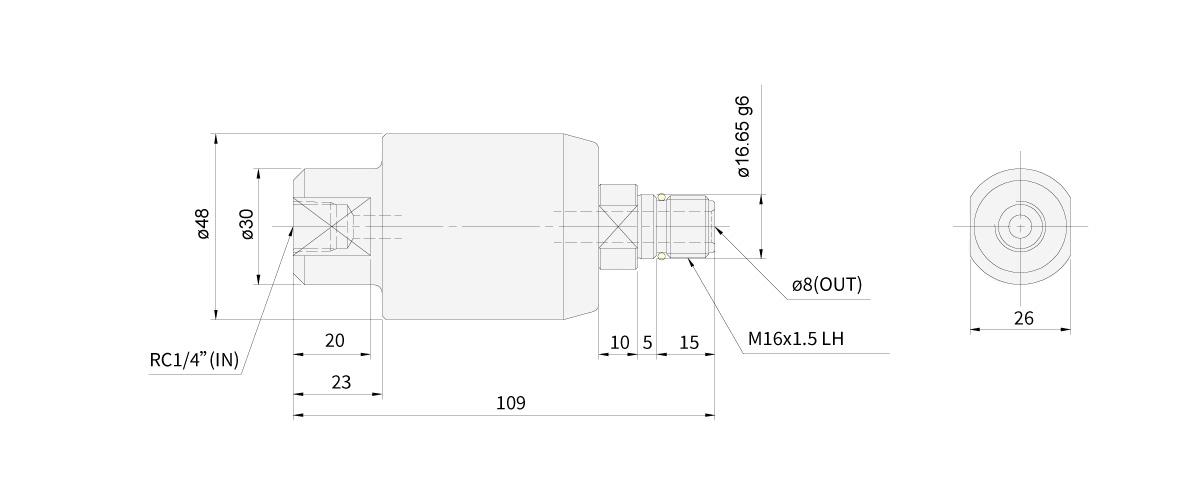

Dimensions

* Subject to technical changes.

Model	Coolant connection PV Limit value (MPa‧r/m.)	Air connection PV Limit value (MPa‧r/m.)	Delivery amount (at 50 kgf/cm²)	Max. speed (r.p.m.)	Coolant connection Max. pressure MPa(kgf/cm²)	Air connection Max. pressure MPa(kgf/cm²)	Weight (kg)
RJ-52	8000	3200	28 l/min	3500	4.0(40)	0.8(80)	0.5
