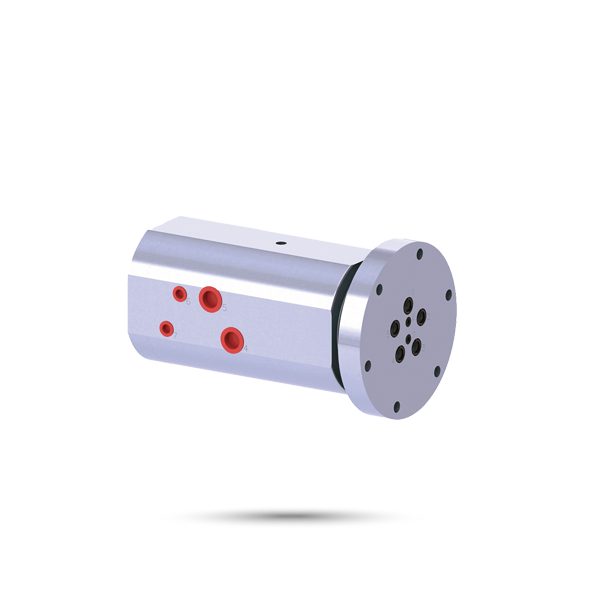

RJ-52HA

Combined Air and Hydraulic Rotary Joint
https://www.autogrip-machinery.com/web/image/product.template/163/image_1920?unique=0d97c5b

Combined Air and Hydraulic Rotary Joint

5 Hydraulic / 2 air
  • 5 Hydraulic + 2 Pneumatic Channel Design.
  • Supports multi-media transmission, ideal for simultaneous control of clamping and unclamping operations.
  • The fully sealed oil and air passage design ensures independent channels for stable pressure, with the pneumatic section also supporting vacuum applications.
  • High-performance sealing structure prevents cross-leakage between oil and air, enhancing system reliability and machining accuracy.
  • Supports medium to low-speed rotation, suitable for multi-axis workstations and compound machining centers.
  • Constructed with high-pressure and wear-resistant materials to ensure long-term durability under high pressure differentials and extended operation.
Catalog Download

    This combination does not exist.



    Dimensions

    * Subject to technical changes.

    Model Distributing
    Max. speed
    (r.p.m.)
    Max. pressure
    Pneumatic
    (kgf/cm2)
    Max. pressure
    Hydraulic
    (kgf/cm2)
    Weight
    (kg)
    RJ-52HA
    5 Hydraulic + 2 air
    1000
    87015.9



    Download

    Model 2D pdf 2D dwg3D step
    RJ-52HA
