RH

Non-Thru-Hole | Hydraulic

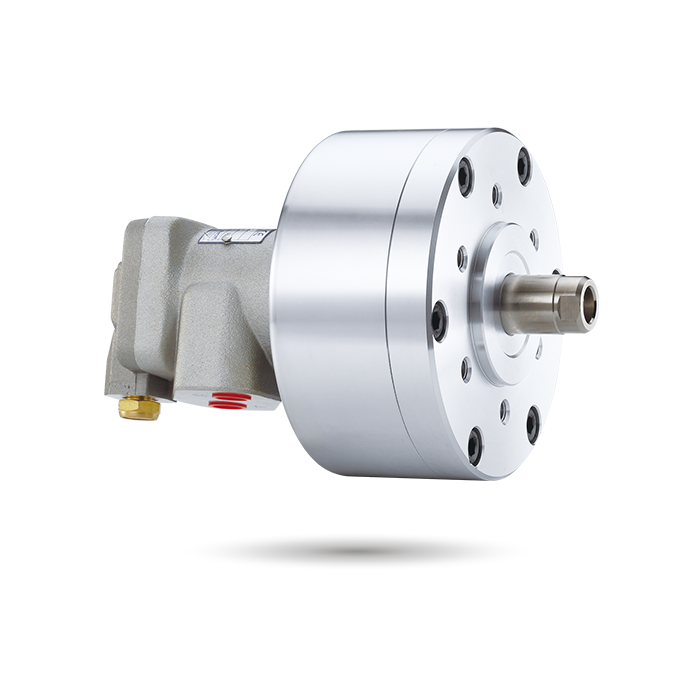

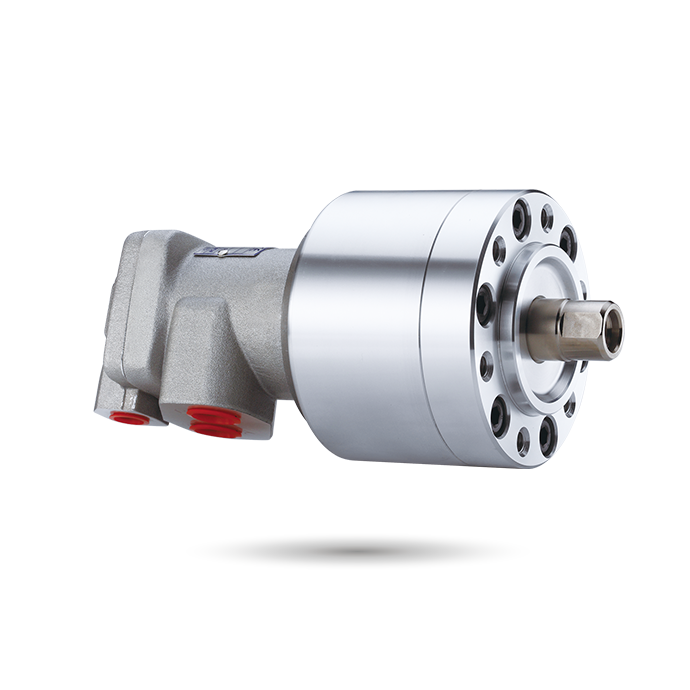

Rotary Hydraulic Cylinder

Non-Thru-Hole | Hydraulic

High speed cylinder with the rotary valve and cylinder body, all made of special light alloy, light-weight.
Hydraulic rotary cylinder through unique design, the rotary valve enables the inside bearing to get sufficient lubricating and cooling and endure high-speed rotary for longer service life.

The drain port should be independently connected to the oil tank to avoid back pressure.

Catalog Download

Specifications

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight (kg)
RH-65	31.0	27.9	15	6000	3.5(35)	0.01	2.9
RH-80	47.7	42.8	15	6000	3.5(35)	0.01	3.4
RH-100	75.4	70.5	20	5500	3.5(35)	0.04	4.9
RH-125	119.6	112.5	25	5500	3.5(35)	0.08	6.8
RH-200	310	286.3	35	4000	4.0(40)	0.38	20.4

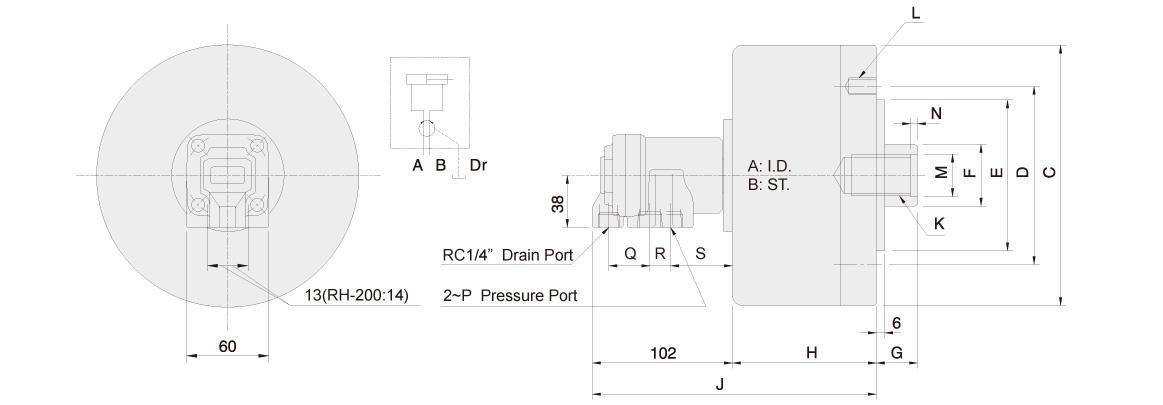

Dimensions

* Subject to technical changes.

Model	A	B	C	D	E (h7)	F	G max.	G min.	H	J	K	L	M (H8)	N	P	Q	R	S
RH-65	65	15	98	80	60	22	45	30	73	175	M12x1.75x30	6~M8x16	14	4	RC3/8	30	15	45
RH-80	80	15	112	90	65	25	45	30	74	176	M16x2.0x30	6~M8x16	17	4	RC3/8	30	15	45
RH-100	100	20	135	100	80	25	45	25	88.5	190.5	M16x2.0x30	6~M10x20	17	4	RC3/8	30	15	45
RH-125	125	25	160	130	110	30	50	25	95.5	197.5	M20x2.5x35	6~M12x20	21	4	RC3/8	30	15	45
RH-200	200	35	245	145	120	55	70	35	130	232	M36x4	12~M16x30	38	5	RC1/2	31	16	43

Download

Model	2D pdf	2D dwg	3D step
RH-65
RH-80
RH-100
RH-125
RH-200
