RG

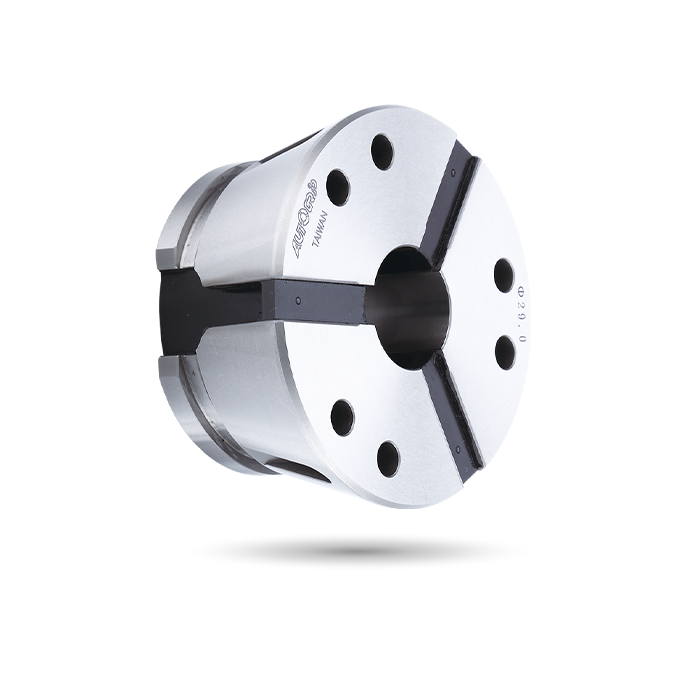

Rubber Grip Collet

Rubber Grip Collet

Rubber Grip Collet

Rubber grip collet for push type or draw type collet chucks.
Full griping area: high rigidity, more gripping force.
Gripping smoothly: prevent to damage the workpiece.
More accurate than standard spring collets.
Accuracy: With customized rubber grip collet.
Grip Range: ±0.5mm.
Quick change and easy.
Dust-proof and swarf-proof design.

Catalog Download

Specifications

Model	Max. Chucking Capacity (mm) Round	Matching Collect Chuck
RG-42R	4~42	CB-42,CBE-42
RG-42RT	11~42	CB-42,CBE-42
RG-52R	4~52	CB-52,CBD-52,CBE-52,SCB-52
RG-52RT	11~52	CB-52,CBD-52,CBE-52,SCB-52
RG-65R	4~65	CB-65,CBD-65,CBE-65,SCB-65
RG-65RT	11~65	CB-65,CBD-65,CBE-65,SCB-65

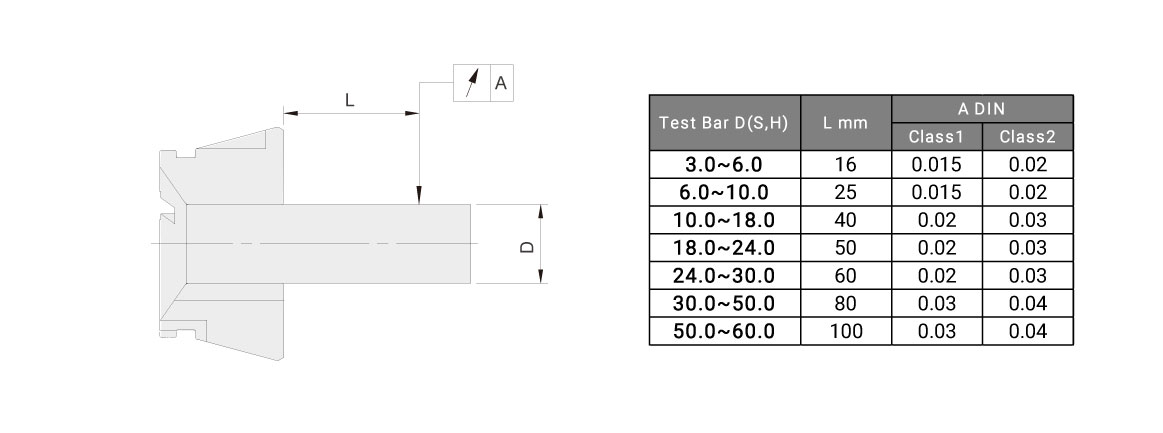

* Note01：Collets chuck are conformed to DIN6343 Class2.
* Note02：AUTOGRIP’s rubber grip collets are conformed to DIN6343 Class1.

Dimensions

Model	d	D	L
RG-42R	54	79.3	42
RG-42RT	54	79.3	42
RG-52R	66	79.3	46
RG-52RT	66	79.3	46
RG-65R	80	99.5	53
RG-65RT	80	99.5	53

Download

Model	2D pdf	2D dwg	3D step
RG-42R
RG-42RT
RG-52R
RG-52RT
RG-65R
RG-65RT
