RA

Non-Thru-Hole | air

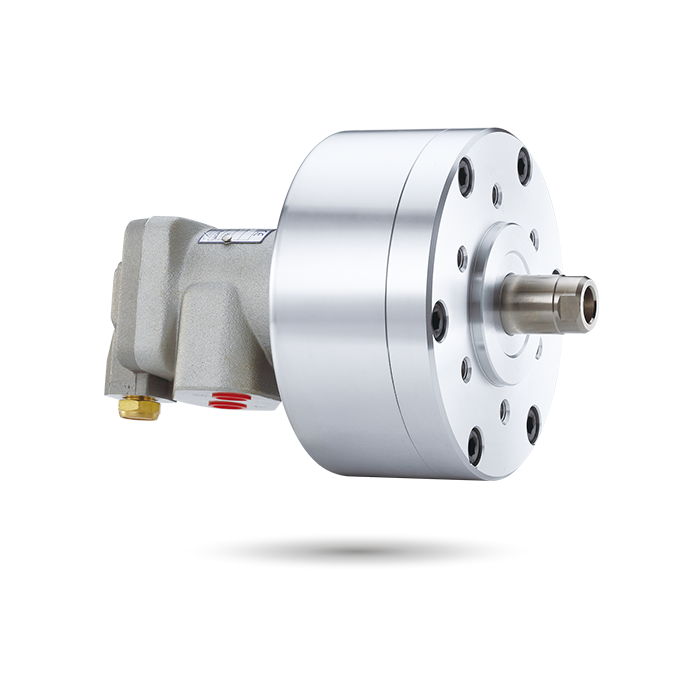

Rotary Hydraulic Cylinder

Non-Thru-Hole | Air

The rotary valve and cylinder body, all made of special light alloy, are light-weight.
Through unique design, the rotary valve can considerably reduce the waste in compressing air and efficiently increase its utilization.

When used, a little oil mist should be contained.

Catalog Download

Specifications

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ² Moment of inertia	Air Leakage cc/sec (at 6kgf/cm²)	Weight (kg)
RA-100	77.0	74.4	15	6000	0.8(8)	0.03	400	3.9
RA-130	131.2	124.7	15	5000	0.8(8)	0.05	400	5.2
RA-170	225.4	219.0	20	5000	0.8(8)	0.18	400	8.5
RA-220	378.6	369.3	25	4000	0.8(8)	0.36	400	14.5
RA-270	571.0	562.9	30	3000	0.8(8)	0.75	400	18.4

Download

Model	2D pdf	2D dwg	3D step
RA-100
RA-130
RA-170
RA-220
RA-270
