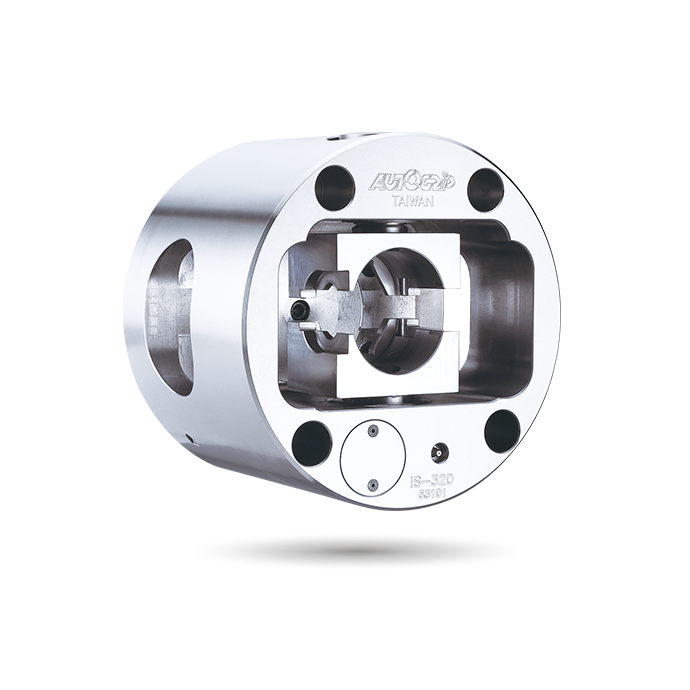

IS

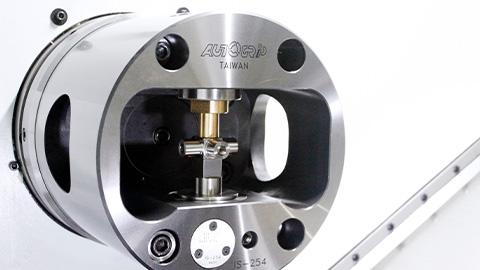

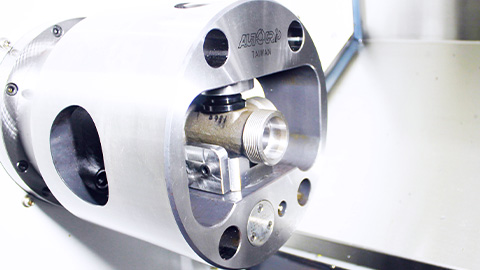

Auto indexing chuck workpiece can be turned around at both ends with only one clamping.

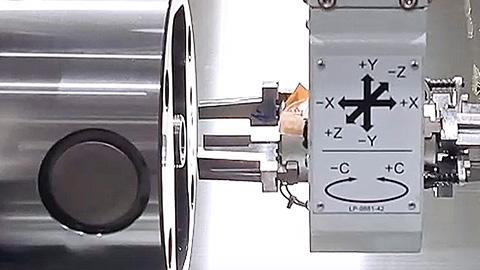

Indexing operates during the spindle rotation and can perform a quick change between multiple working axles.
All parts of the chuck hardened ground and lubricated directly.
Sealed against swarf, chips, and coolant.
High rigidity and high repeatability precision.
Unique indexing system and hydraulic system, with pressure detection device in the chuck, high reliability.
Indexing lathe chuck shortens the clamping time of the workpiece, and solves the problems of low manual operation efficiency and poor accuracy.
indexing chuck can improve the processing quality of the workpiece, and reduces labor strength, reduces production costs.

Specifications

Model	Index Angle Deg	Jaw stroke (mm)	Chucking Area Dia. Max.(mm)	Chucking Area Dia. Max.(mm)	Max. pressure MPa (kgf/cm²)	Max. clamping force kN (kgf)	Max. speed min^-1 (r.p.m.)	I kg‧m ²	Weight (kg)	ROTATING JOINT	Main Spindle Bore(mm)
IS-254	4x90゜	20	65	160	45	19.5 (1990)	1700	0.41	41.0	IS-315	70 and above
IS-275	4x90゜	20	80	220	45	25.4 (2590)	1500	0.61	52.0	IS-315	70 and above
IS-315	4x90゜	20	100	230	45	25.0 (2550)	1200	1.13	76.0	IS-315	70 and above

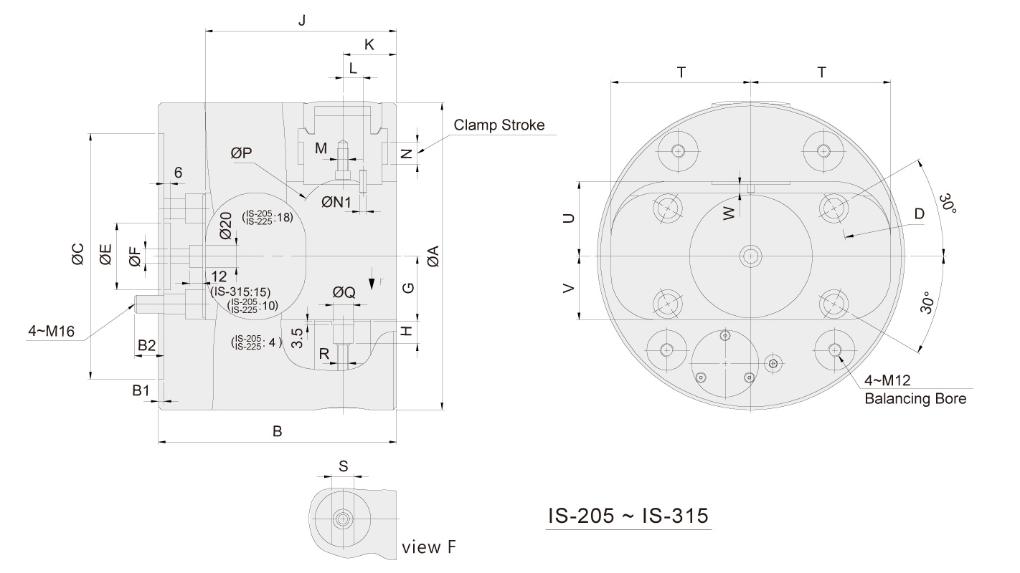

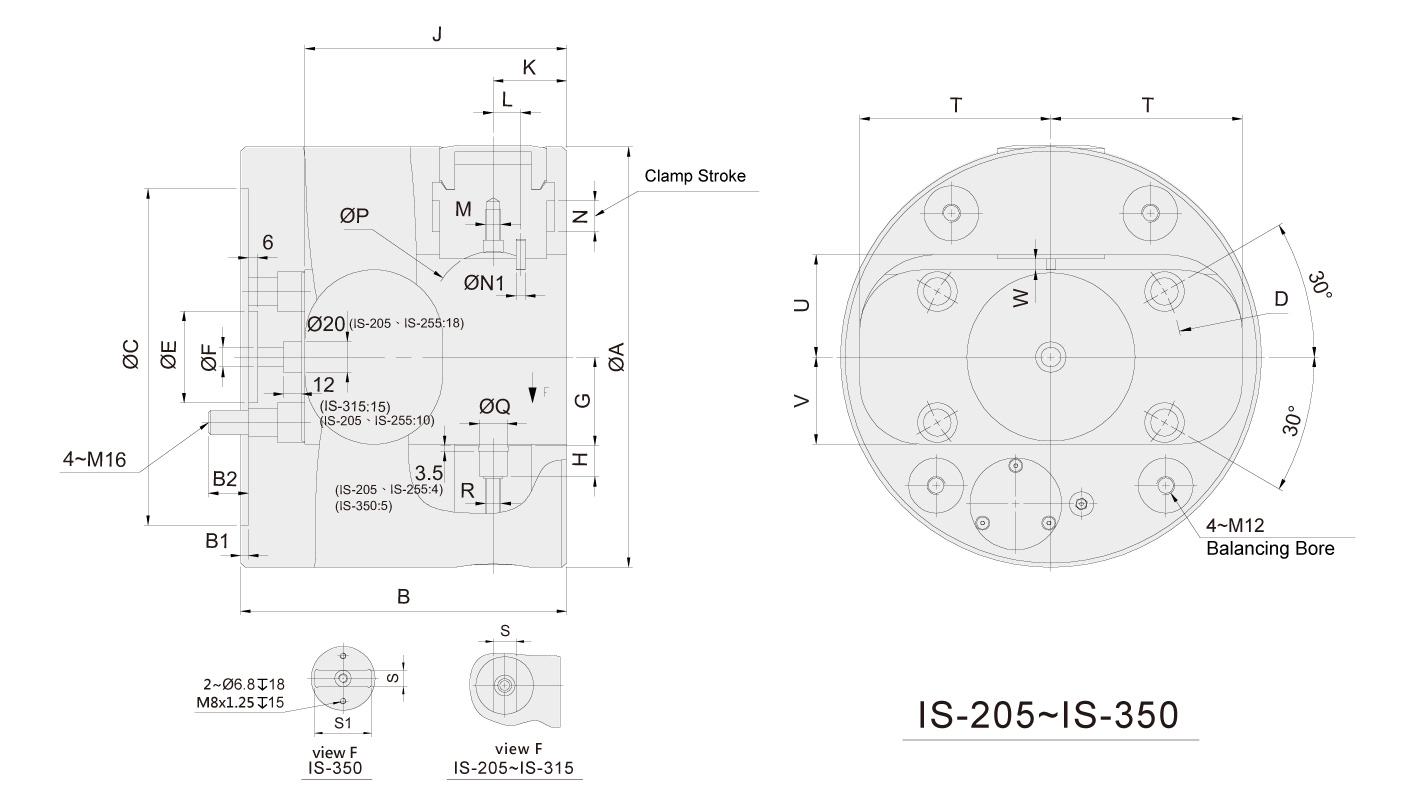

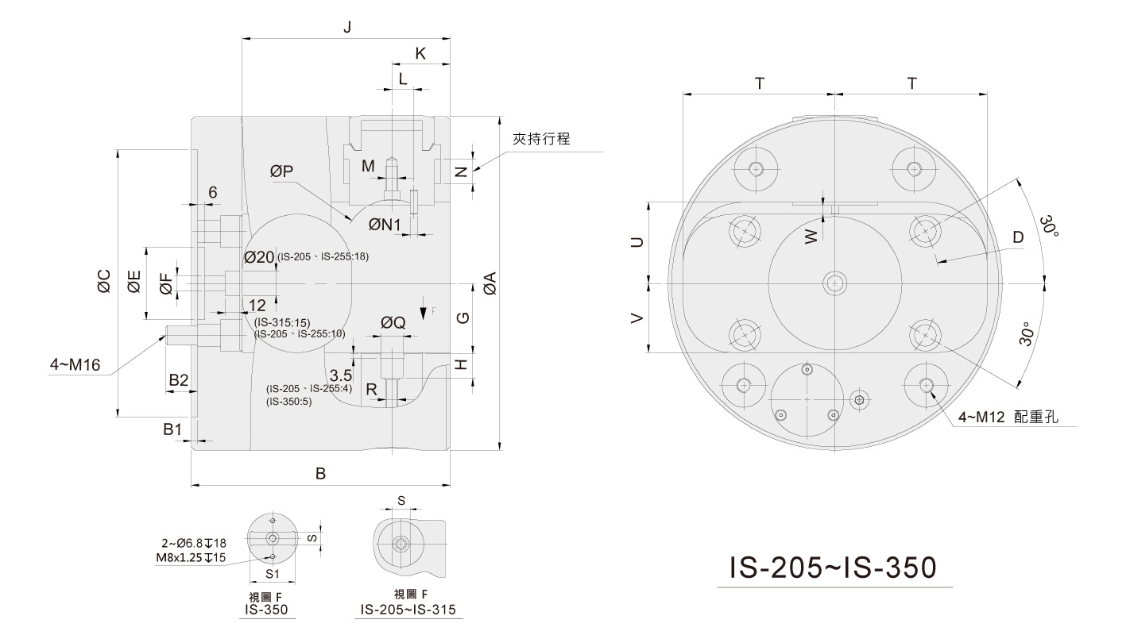

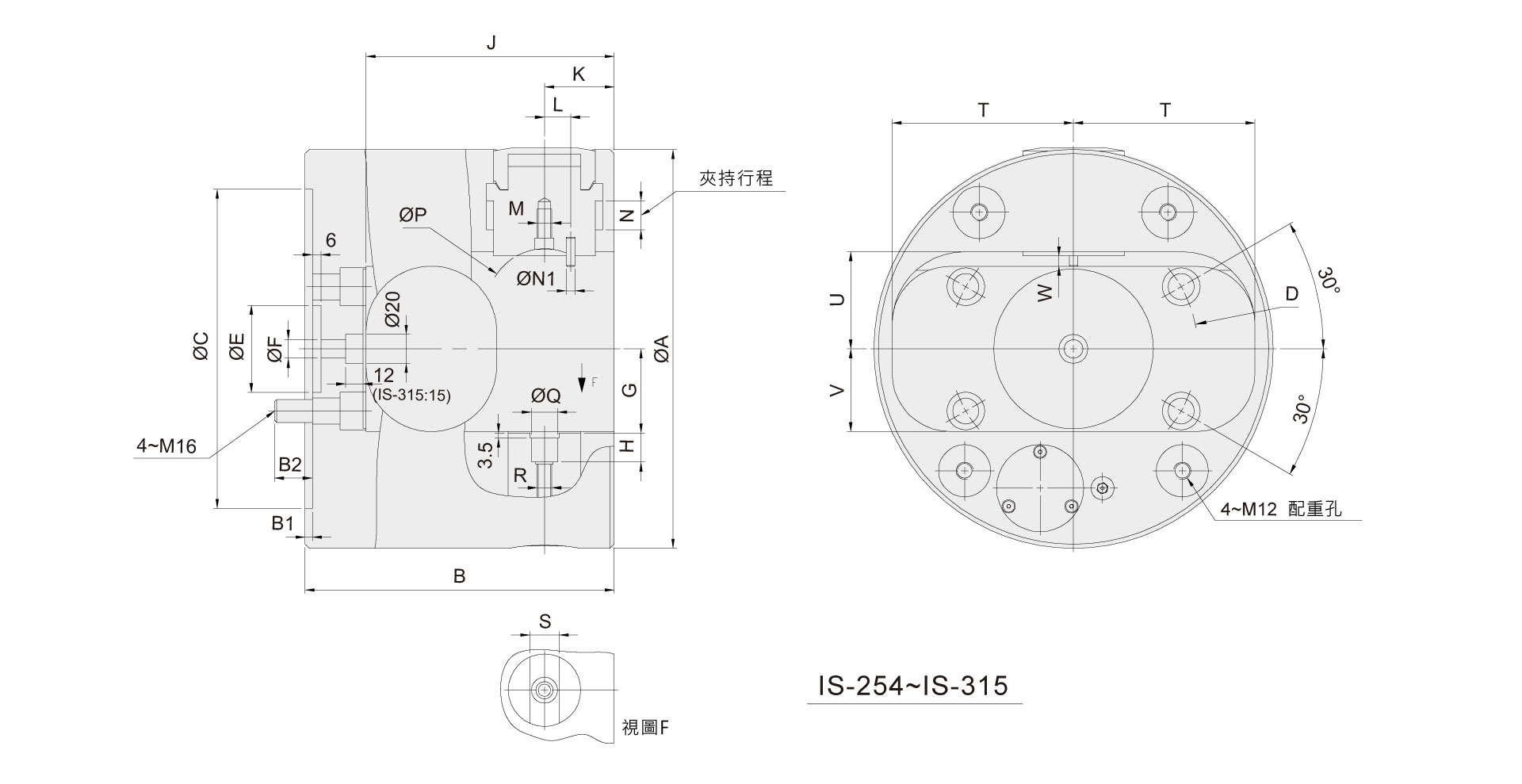

Model	A	B	B1	B2	C(H6)	D	E	F	G	H	J	K	L	M	N	N1	P	Q(H7)	R	S(H7)	T	U	V	W
IS-254	254	190	5	23	220	171.4	60	13	47.5	18	155	48	13	M8	20	5	40	18	M10	20	106	57	46.5	5.5
IS-275	275	213	5	26	220	171.4	60	13	58	20	171	48	18	M10	20	6	80	18	M10	20	125	67	57	7
IS-315	315	232	5	22	220	171.4	60	13	71	18.5	187	50	18	M10	20	6	75	24	M12	25	136	85	70	7.5
