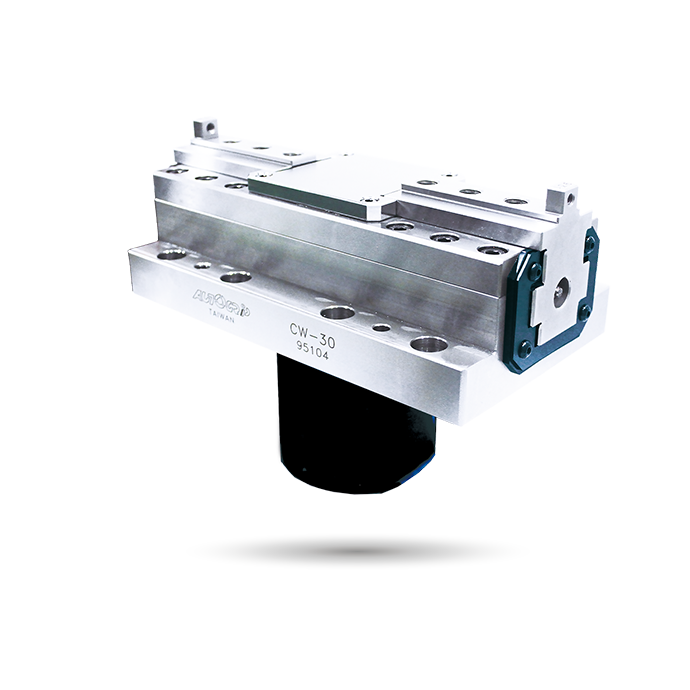

Specifications
| Model | Eff. Piston area Extend cm2 | Eff. Piston area Retract cm2 | Jaw stroke (Dia.)(mm) | Clamping capacity (mm) | Max. clamping force kN(kgf) | Max. pressure MPa (kgf/cm2) | Weight (kg) |
| CP-20 |
28.27 | 25.13 | 20 | 150 | 14.4(1465) | 3.5(35) | 9.5 |
| CP-30A | 28.27 | 25.13 | 30 | 180 | 14.4(1465) | 3.5(35) | 11 |
| CP-30 | 28.27 | 25.13 | 30 | 210 | 14.4(1465) | 3.5(35) | 12 |
| CP-40 | 28.27 | 25.13 | 40 | 200 | 14.4(1465) | 3.5(35) | 12 |
| CP-50 | 38.48 | 33.57 | 50 | 215 | 17.7(1812) | 3.5(35) | 18.5 |
| CP-70 | 50.26 | 45.35 | 70 | 235 | 23.9(2434) | 3.5(35) | 30 |
Dimensions
* Subject to technical changes.
| Model |
A | B | B1 | C | D | E(h6) | F | G max. | G min. | H | J | K | L | M | N | P | Q | R | S | T | U | U1 | U2 | V | W | W2 | X | Y | Z |
| CP-20 |
215 | 88 | 96 | 53 | 40 | 18 | 4 | 249 | 229 | 75 | 94 | M10x1.5 | M10 | 12 | M6x1 | 18 | 20 | 66 | 24 | 22 | 102 | 190 | 60 | 156 | 32 | 65 | 150 | 22 | 4 |
| CP-30A | 250 | 88 | 96 | 53 | 40 | 18 | 4 | 295 | 265 | 75 | 94 | M10x1.5 | M10 | 14 | M6x1 | 20 | 24 | 96 | 24 | 22 | 102 | 190 | 60 | 156 | 20 | 65 | 156 | 22 | 6 |
| CP-30 | 280 | 88 | 96 | 53 | 40 | 22 | 4 | 327 | 297 | 75 | 94 | M12x1.75 | M10 | 14 | M6x1 | 20 | 24 | 98 | 24 | 22 | 102 | 190 | 60 | 156 | 23 | 65 | 156 | 22 | 6 |
| CP-40 | 270 | 88 | 96 | 53 | 40 | 22 | 4 | 331 | 291 | 75 | 94 | M12x1.75 | M10 | 14 | M6x1 | 20 | 24 | 98 | 24 | 22 | 102 | 190 | 60 | 156 | 25 | 65 | 150 | 22 | 10.5 |
| CP-50 | 300 | 110 | 115 | 65 | 50 | 28 | 5 | 369 | 319 | 90 | 105 | M12x1.75 | M10 | 16 | M8x1.25 | 21 | 28 | 102 | 28 | 32 | 105 | 230 | 85 | 195 | 29 | 80 | 180 | 30 | 10 |
| CP-70 | 346 | 120 | 126 | 65 | 55 | 32 | 5 | 430 | 360 | 114 | 115 | M14x2 | M12 | 16 | M8x1.25 | 23 | 28 | 112 | 28 | 32 | 120 | 275 | 95 | 240 | 42 | 90 | 210 | 34 | 23.5 |

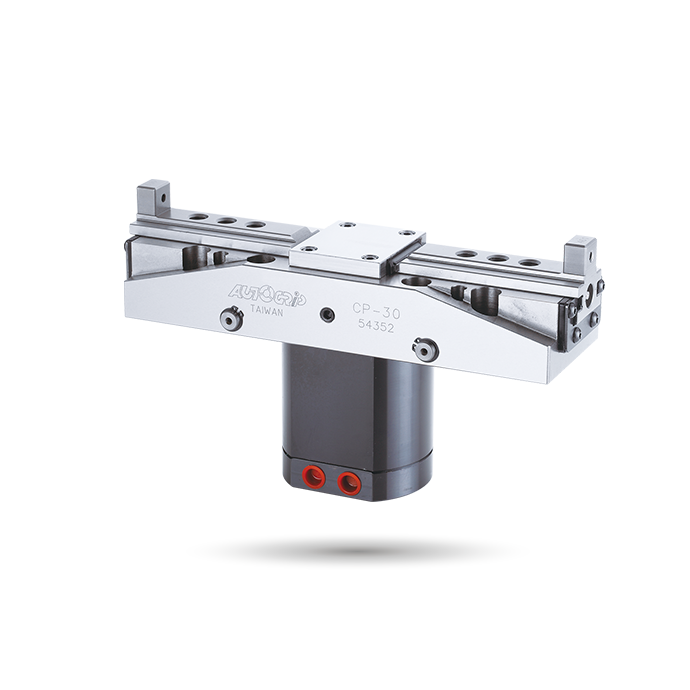

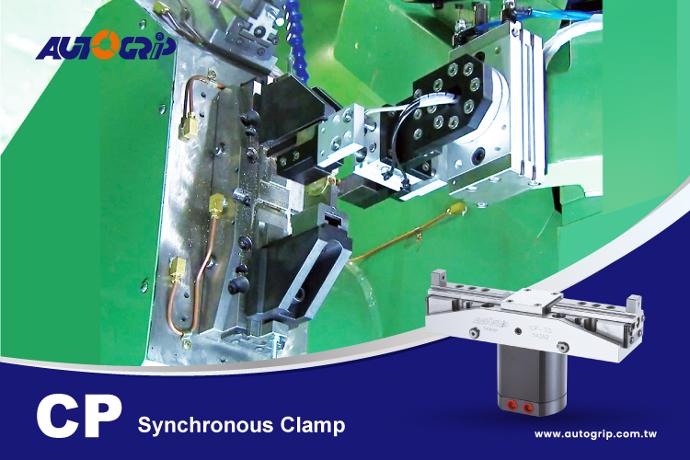

Synchronous Clamps(CP-30) Applications
Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.
High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.
Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.
