CB/CB-A

Draw Back type

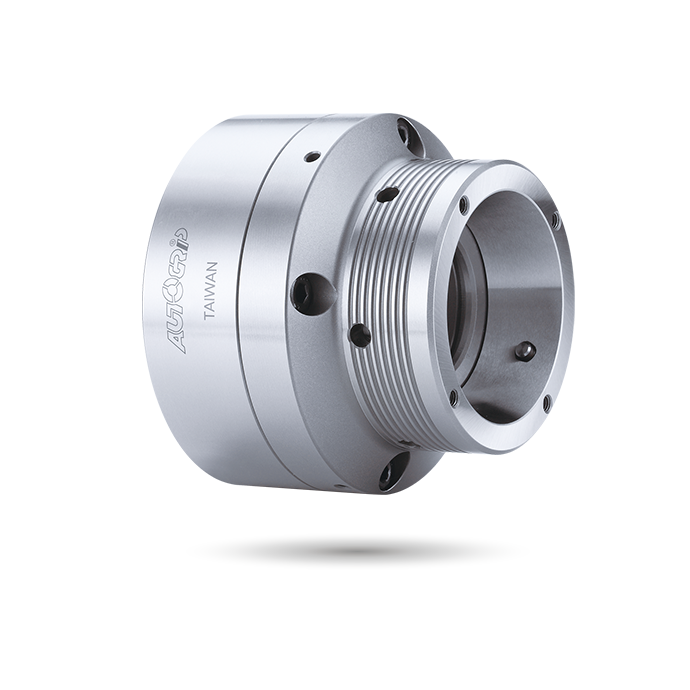

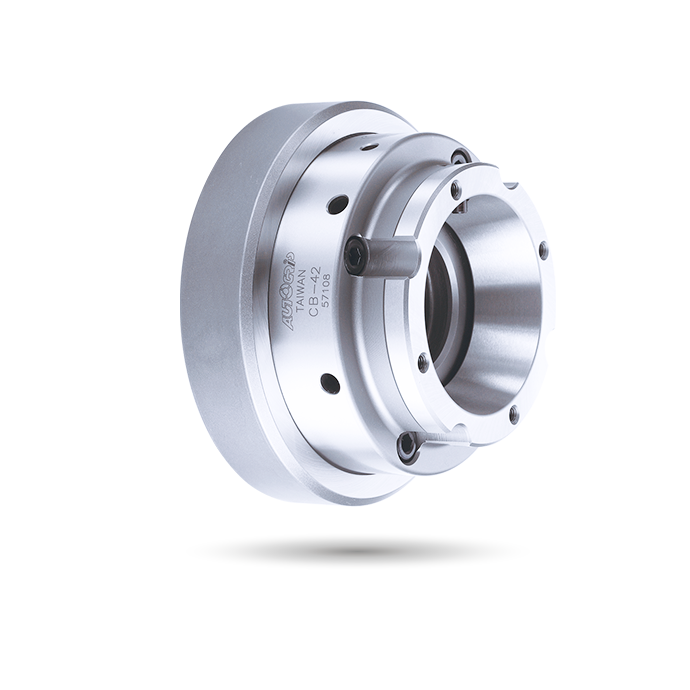

Draw Back Collet Chuck

Draw Back type

Ideal for CNC lathes, specialized machines, and turning equipment for bar stock or shaft machining.

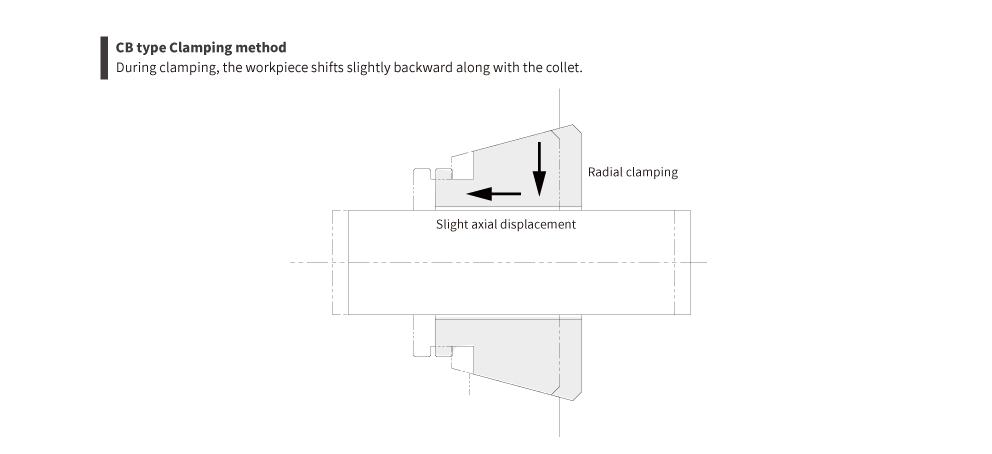

Draw-back clamping with radial clamping and axial fine-tuning torque, featuring through-hole.
Offers high precision, speed, and rigidity.
Features a comprehensive waterproof design to prevent cutting fluid from entering the spindle through-hole.

J is the hole diameter of blank draw nut.

K is the maximum thread specification and it could be customize.

Catalog Download

Specifications

Model	-	Plunger stroke(mm)	Max. Chucking Capacity Round (mm)	Max. Chucking Capacity Hexagom (mm)	Max. Chucking Capacity Square (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN(kgf)	Max. speed min^-1(r.p.m.)	Weight (kg)	Matching Stell Collet	Matching cyl.	Max. pressure (kgf/cm²)
CB-42	-	4.5	4~42	7~36	7~30	34.3(3500)	78.4(8000)	7000	6.5	RG-42	TK-B846	2.8(28)
CB-42	A5	4.5	4~42	7~36	7~30	34.3(3500)	78.4(8000)	7000	6.2	RG-42	TK-B846	2.8(28)
CB-42	A6	4.5	4~42	7~36	7~30	34.3(3500)	78.4(8000)	7000	7.4	RG-42	TK-B846	2.8(28)
CB-52	-	4.5	4~52	7~36	7~45	39.2(4000)	92.1(9400)	7000	6	RG-52	TK-A853	3.2(32)
CB-5217	-	4.5	4~52	7~36	7~45	39.2(4000)	92.1(9400)	7000	9.6	RG-52	TK-A853	3.2(32)
CB-52	A5	4.5	4~52	7~36	7~45	39.2(4000)	92.1(9400)	7000	6.5	RG-52	TK-A853	3.2(32)
CB-52	A6	4.5	4~52	7~36	7~45	39.2(4000)	92.1(9400)	7000	7.8	RG-52	TK-A853	3.2(32)
CB-65	-	4.5	4~65	8~56	8~46	44.1(4500)	103(10500)	5500	15	RG-65	TS-866	3.0(30)
CB-65	A6	4.5	4~65	8~56	8~46	44.1(4500)	103(10500)	5500	13.6	RG-65	TS-866	3.0(30)
CB-65	A8	4.5	4~65	8~56	8~46	44.1(4500)	103(10500)	5500	17.6	RG-65	TS-866	3.0(30)
CB-80	-	4.5	5~80	8~68	8~56	50.0(5100)	115(11730)	5500	19	RG-80	TK-A1287	2.3(23)
CB-80	A8	4.5	5~80	8~68	8~56	50.0(5100)	115(11730)	5500	19	RG-80	TK-A1287	2.3(23)

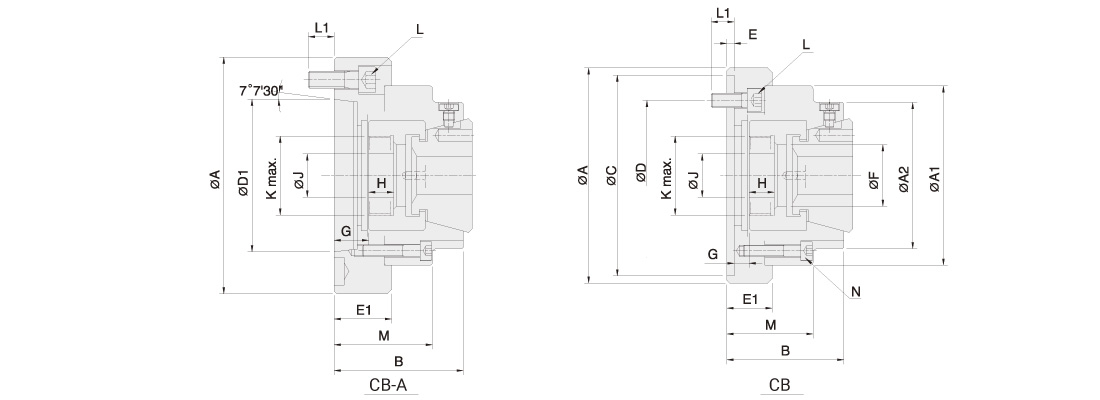

Dimensions

Model	-	A	A1	A2	B	C(H6)	D	D1	E	E1	F	G max.	G min.	H	J	K max.	L	L1	M	N
CB-42	-	150	125	102	81.5	140	104.8	-	5	31	43	10.5	6	17.5	30	M55x2	3~M10x25	11	60	4~M8
CB-42	A5	140	125	102	91.5	-	104.8	82.56	-	41.5	43	25.5	21	17.5	30	M55x2	4~M10x25	12	70	4~M8
CB-42	A6	165	125	102	91.5	-	133.4	106.38	-	45	43	29	24.5	17.5	30	M55x2	4~M12x35	18	73.5	4~M8
CB-52	-	150	125	102	83.5	140	104.8	-	5	31.5	53	11	6.5	17.5	30	M60x2	4~M10x25	16	62.5	4~M8
CB-5217	-	180	125	102	87	170	133.4	-	5	35	53	14.5	10	17.5	30	M60x2	4~M12x30	18	66	4~M8
CB-52	A5	140	125	102	93.5	-	104.8	82.56	-	41.5	53	26	21.5	17.5	30	M60x2	4~M10x30	16	72.5	4~M8
CB-52	A6	165	125	102	99	-	133.4	106.38	-	47	53	31.5	27	17.5	30	M60x2	6~M12x35	18	78	4~M8
CB-65	-	185	145	120	100	170	133.4	-	6	50	66	13.5	9	21.5	32	M75x2	6~M12x40	20	73.5	4~M8
CB-65	A6	165	145	120	111	-	133.4	106.38	-	61	66	30.5	26	21.5	32	M75x2	4~M12x40	20	84.5	4~M8
CB-65	A8	207	145	120	107	-	171.4	139.72	-	57	66	26.5	22	21.5	32	M75x2	4~M16x40	24	80.5	4~M8
CB-80	-	235	175	150	112	220	171.4	-	5	37	82.5	13.5	8	25	45	M85x2	6~M16x30	22	87	6~M10
CB-80	A8	210	175	150	125	-	171.4	139.72	-	50	82.5	26.5	21	25	45	M85x2	6~M16x50	24	100	6~M10

Download

Model	2D pdf	2D dwg	3D step
CB-42
CB-42A5
CB-42A6
CB-52
CB-5217
CB-52A5
CB-52A6
CB-65
CB-65A6
CB-65A8
CB-80
CB-80A8

Applications

CL COLLET CHUCK Clamping Actuation

CL COLLET CHUCK Clamping Actuation

Turning Center

High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.

Related Applications

Machining Center

Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.

Other Applications

Special Purpose Machine

Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.

Other Applications

Related Accessories

Related Accessories
