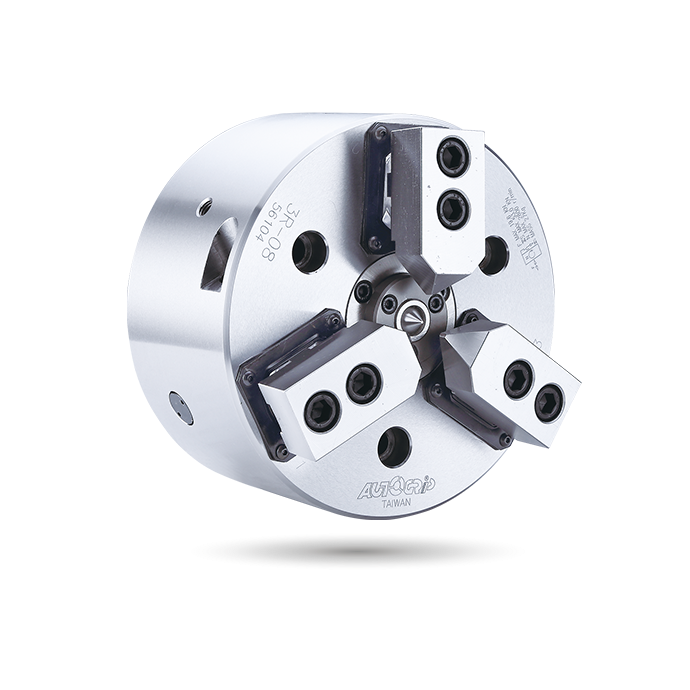

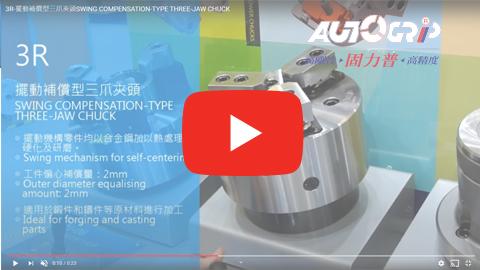

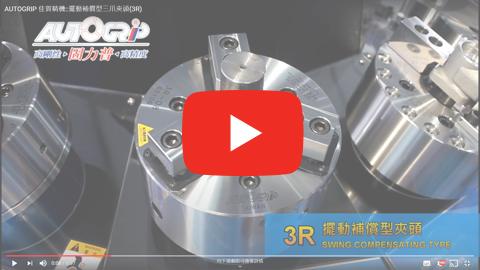

3R

The special collet is matched with the center thimble for positioning, which can compensate for the eccentricity of the workpiece by 2mm.
There is a special waterproof sealing ring inside the collet, which is dustproof and anti-cutting fluid, making daily maintenance more convenient.
The Jaw chucks of the oscillating mechanism are heat-treated, hardened, and ground with alloy steel to prolong the service life of the product.

Specifications

Model	Plunger stroke (mm)	Jaw stroke (Dia.)(mm)	Chucking Dia. max.(mm)	Chucking Dia. min.(mm)	Max. D.B. pull kN(kgf)	Max. clamping force kN(kgf)	Max. speed min^-1 (r.p.m.)	I kg‧m ²	Weight (kg)	Matching cyl.	Compensation (mm)
3R-08	20	8	65	18	19.6 (2000)	53.0 (5404)	2800	0.15	27	RK-100(N)	2
3R-10	25	10	90	22	29.4 (3000)	67.7 (6901)	2500	0.38	45	RK-125(N)	2
3R-12	25	10.2	110	22	39.4(4000)	88.4(9010)	2000	0.75	72	RK-150N	2

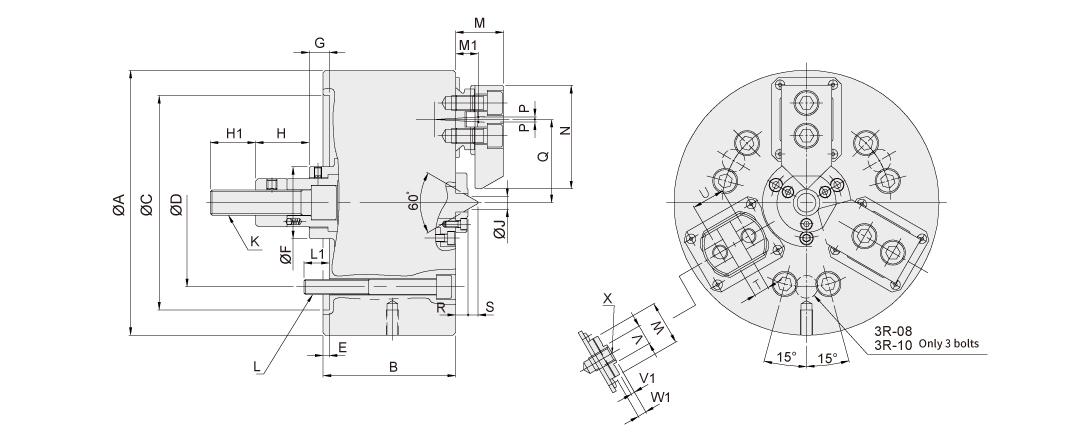

Model	A	B	C(H6)	D	E	F	G max.	G min.	H	H1	J	K	L	L1	M	M1	N	P	Qmax.	Qmin.	R	S	T(H7)	U	V	V1	W	W1	X
3R-08	210	105	170	133.4	5	57	26	6	42.5	36	10.4	M20x2.5	3~M12	20	38	18	82	2	68	64	10	7.7	12	26	16	3	35	7	M12
3R-10	254	115	220	171.4	5.5	64	36.5	11.5	25	39	15	M20x2.5	3~M16	22.5	40	19	102	2.6	82	78	10	11.3	15	32	18	3	40	7	M14
3R-12	304	130	220	171.4	5	70	25	0	33	45.5	15	M24x3	3~M16	22	51	24	125	2.5	102.5	97.5	10	11.3	17	36	20	3	50	7	M16
