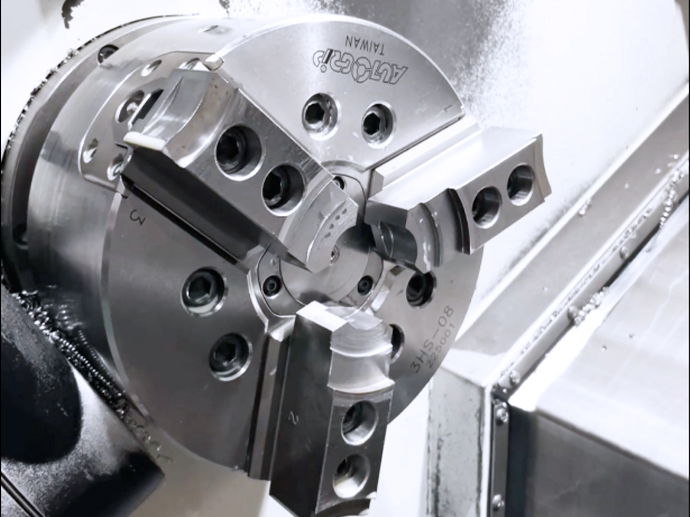

For manufacturers running vertical lathes, dry machining, castings, forgings, or high-pressure coolant applications, chuck contamination is a recurring source of maintenance pressure. Over time, repeated cleaning, unplanned servicing, and unstable lubrication can reduce machine availability and increase operating cost. For customers facing these conditions, the 3HS-08 Thru-Hole Fully Sealed Type Power Chuck has become a practical upgrade for improving production continuity.

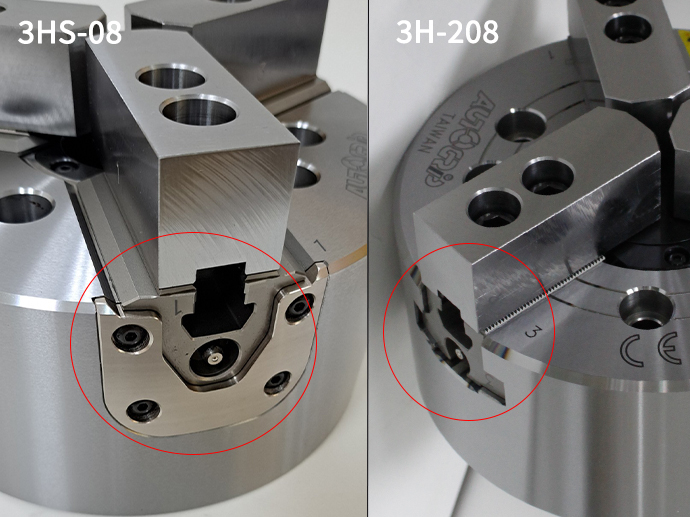

The innovation behind the 3HS-08 3-Jaw power chuck lies in its fully sealed structure. By helping keep coolant and chips out of the chuck body while maintaining more stable internal lubrication, it addresses two priorities at the same time: lower maintenance demand and better support for green manufacturing goals.
Why Contamination Becomes a Hidden Cost in Machining
In many machining environments, the real cost issue is not a single major breakdown. It is the steady accumulation of smaller interruptions that affect uptime and labor efficiency.
This usually develops in the following way:
- More contamination increases maintenance frequency.
- More maintenance increases machine downtime.
- More downtime reduces utilization and raises per-part cost.
- Less stable lubrication can affect service life and clamping reliability.
For procurement teams and plant managers, this means a power chuck should be evaluated not only by purchase price, but also by how well it helps control maintenance-related operating loss over time.
How the 3HS-08 Solves This Problem
The 3HS-08 is designed for applications where contamination risk is high and machine uptime matters. Its fully sealed construction helps protect the chuck body from coolant and chip ingress, making it especially suitable for:
- Vertical lathe operations.
- Dry machining of castings and forgings.
- High-pressure coolant environments.
- Automated or lights-out production.
- Factories aiming to reduce maintenance workload.
In these applications, the design innovation of a fully sealed 3-Jaw power chuck helps turn a common maintenance problem into a more manageable and predictable production condition.
Key Advantages of the 3HS-08 Power Chuck
The table below summarizes why the 3HS-08 power chuck is well suited for customers focused on maintenance control, stable operation, and long-term value.
| Item |
3HS-08 Advantage |
| Sealed construction |
Fully sealed design helps extend maintenance intervals |
|
Protection
| Helps prevent coolant and chips from entering the chuck body |
| Lubrication | Supports stable lubrication for precision and durability |
| Automation | Suitable for lights-out and automated machining |
| Application | Well suited for dry machining of castings and forgings |
| Machine fit | Especially ideal for vertical lathes |
| Optional function | Central bore can be used for coolant or air |
These advantages make the 3HS-08 a practical choice for manufacturers that want both reliable clamping performance and lower maintenance demand.
How the 3HS-08 Supports Energy-Saving Goals
Energy efficiency in machining is influenced not only by motor power or cutting parameters, but also by how effectively equipment time is used. Frequent stoppages, repeated servicing, and avoidable operating loss all affect overall production efficiency.
The 3HS-08 power chuck supports energy-saving goals by:
Reducing avoidable stoppages related to maintenance.
Supporting smoother internal operation through better protection.
Improving machine-hour efficiency in unattended production.
Improving machine-hour efficiency in unattended production.
For manufacturers pursuing green manufacturing, this type of operational improvement is an important part of long-term sustainability.
3HS-08 Key Specifications
The 3HS-08 combines maintenance-friendly design with specifications suitable for demanding machining applications.
| Specification 3HS-08 | |
| Thru-hole |
52mm |
| Max. chucking diameter | 220mm |
| Min. chucking diameter | 22mm |
| Max. drawbar pull | 31.9kN |
| Max. clamping force | 92kN |
| Max. speed | 5000r.p.m. |
| Matching cylinder | TK-A853 |
These specifications make the 3HS-08 a strong power chuck option for manufacturers that need dependable performance together with maintenance control.
Why This Matters for Green Manufacturing and Cost Control
More manufacturers now evaluate workholding not only by clamping capability, but by its impact on uptime, service planning, and overall production efficiency. This shift is exactly why the 3HS-08 3-Jaw power chuck is relevant to customers pursuing greener and more cost-conscious operations.
Its practical value includes:
Lower maintenance frequency
Better equipment utilization
Reduced hidden operating cost
Better support for green manufacturing objectives
For buyers focused on maintenance cost control, this means better long-term control over total cost of ownership.
FAQ:
No. It is also a practical choice for conventional machining operations that want lower maintenance frequency and better production stability.
Yes. It helps reduce avoidable operating waste caused by repeated stoppages, unnecessary servicing, and inefficient machine use.
Because these applications often involve greater exposure to chips, debris, or coolant-related contamination, which increases maintenance risk.
Why We Recommend the 3HS-08?
We designed the 3HS-08 Thru-Hole Fully Sealed Type Power Chuck for manufacturers that need a better balance between performance, maintenance control, and long-term operating efficiency. For customers seeking a practical response to contamination-related downtime, maintenance burden, and green manufacturing pressure, it offers value beyond basic workholding. If you would like to discuss your application with Autogrip®, please contact us.
