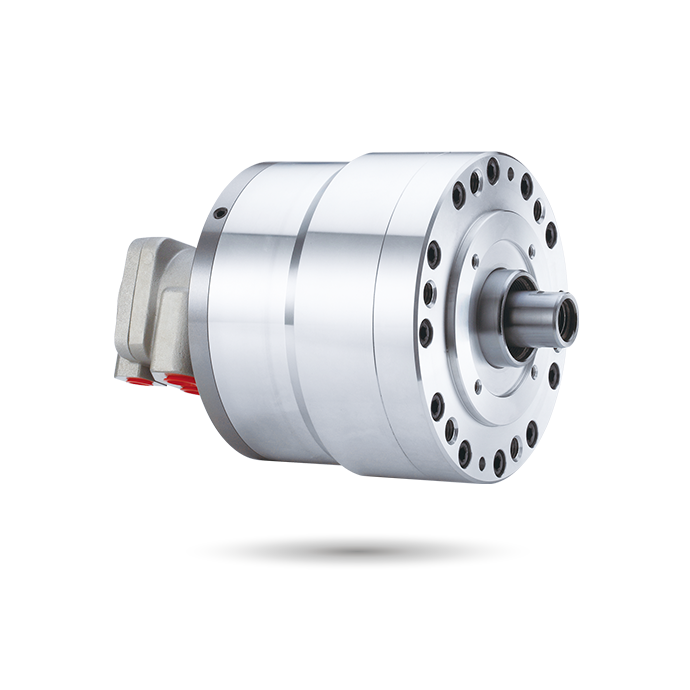

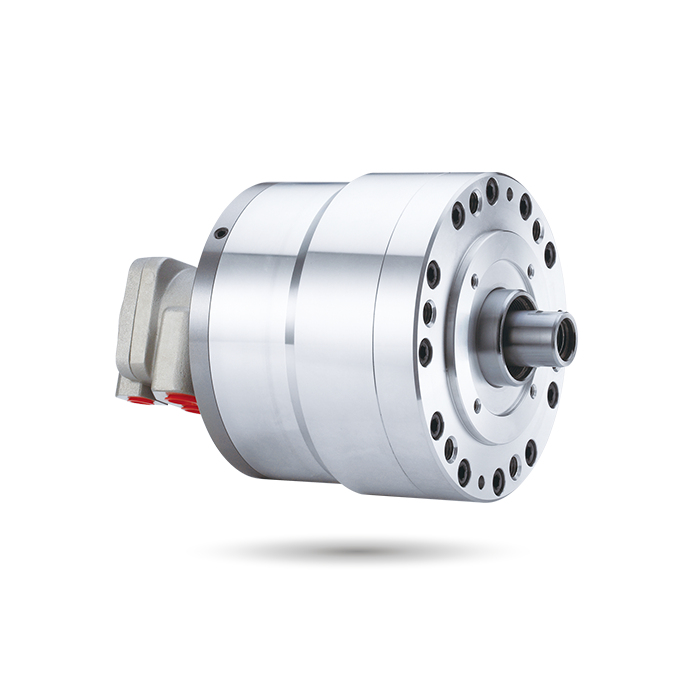

RD-N

The drain port should be independently connected to the oil tank to avoid back pressure.

Specifications

Model	Eff. piston area cm² Extend A	Eff. piston area cm² Retract B	Eff. piston area cm² Extend A	Eff. piston area cm² Retract B	Piston stroke (mm)	Max. speed min^-1 (r.p.m.)	Max. pressure MPa (kgf/cm²)	I kg‧m ²	Weight kg
RD-120N	122.7	126.1	116.1	113.1	20	5000	3.0(30)	0.14	11.2
RD-125N	122.7	126.1	116.1	113.1	25	5000	3.0(30)	0.15	11.4

* Subject to technical changes.

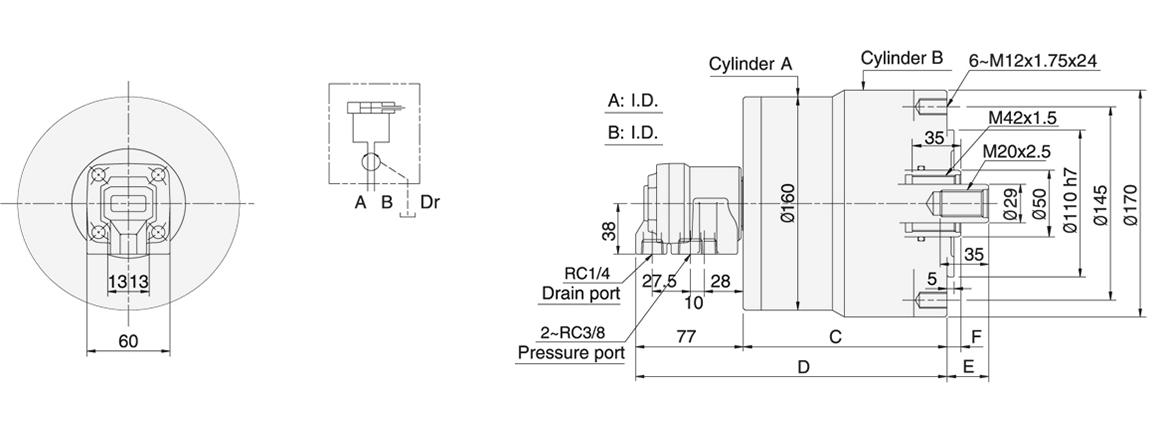

Model	A	B	C	D	E max.	E min.	F max.	F min.
RD-120N	125	130	137	214	60	40	35	15
RD-125N	125	130	147	224	55	30	35	10
