Specifications
| Model | Jaw stroke (Dia.)(mm) | Chucking Dia. Max.(mm) | Chucking Dia. Min.(mm) | Max. clamping force (Pneumatic at 6.0kgf/cm2) kN (kgf) | Max. pressure (kgf/cm2) | Max. speed (r.p.m.) | Max Rotation Reslstance Torque (Nm) | Air Consumption (at 6.0 kgf/cm2) lit (kgf/cm2) | Weight (kg) |

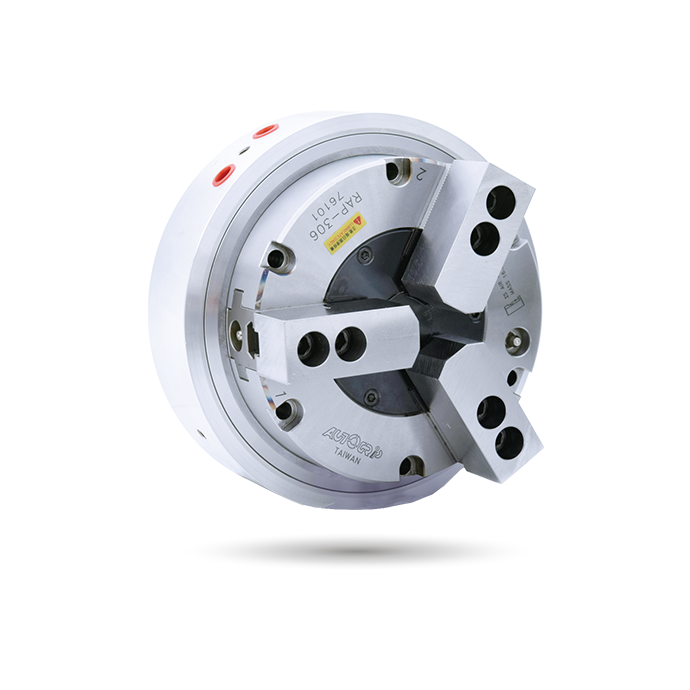

| RAP-306 |
5.5 | 170 | 25 | 21(2141.4) | 7 | 72 | 40 | 3.1 | 16.2 |
| RAP-308 | 6.8 | 215 | 37 | 34.2(3487.4) | 7 | 60 | 60 | 3.1 | 30.6 |
| RAP-310 | 7 | 254 | 53 | 48(4894.7) | 7 | 53 | 85 | 4.2 | 42.4 |
Dimensions
* Subject to technical changes.
| Model |
A | B | B1 | C(H6) | D | E | F | G | H | J | K | L | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | V | W |
| RAP-306 |
215 | 98 | 90 | 110 | 155 | 171 | 170 | 25 | 7 | 52 | 8 | 6~M8 | 11 | 36 | 73 | 20 | 10.75 | 6.25 | 47 | 44.25 | 31 | 12 | 19.5 | 14 | 3~M8 |
| RAP-308 | 260 | 113 | 104 | 110 | 200 | 226 | 215 | 32 | 8 | 52 | 9 | 6~M8 | 16 | 37 | 95 | 25 | 13.25 | 8.75 | 57 | 53.6 | 35 | 14 | 19.5 | 14 | 3~M8 |
| RAP-310 | 300 | 117 | 52 | 140 | 235 | 261 | 254 | 54 | 8 | 52 | 10 | 6~M8 | 14 | 42 | 110 | 30 | 23.25 | 12.75 | 64.5 | 61 | 40 | 16 | 19.5 | 14 | 3~M8 |
Applications
Automatic clamping solution for rotary table

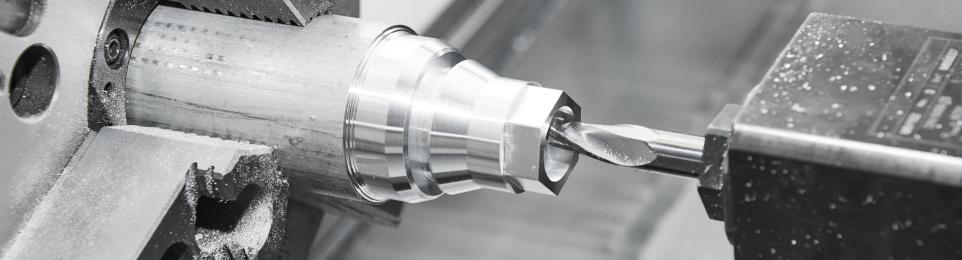

Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.

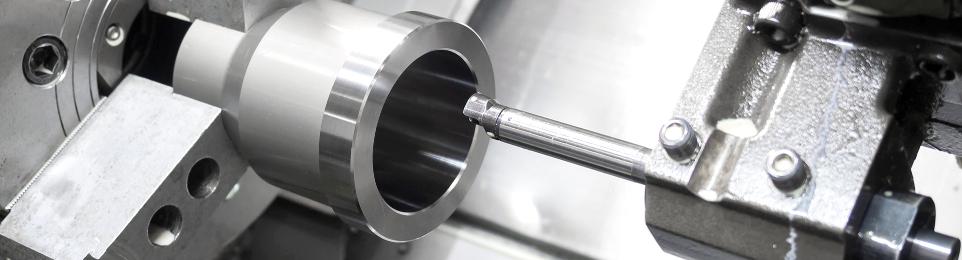

High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.

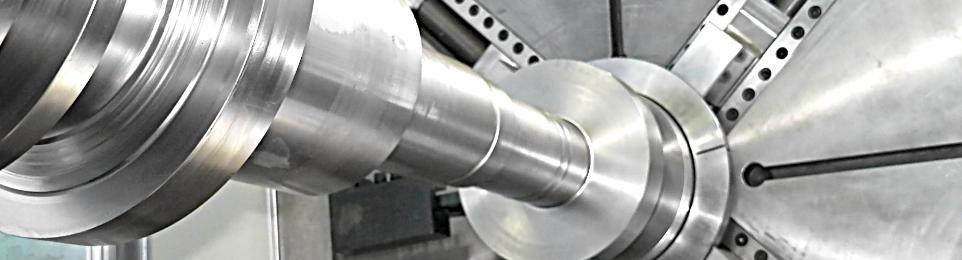

Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.
