Center Coolant Delivery
| Model |
Ø (Clamping Handle Diameter) | Max. Clamping Depth | Coolant drainage |
| XYGPC20D04C |
4 | 66 | Center Coolant |
| XYGPC20D06C | 6 | 66 |
Center Coolant
|
| XYGPC20D08C | 8 | 48.5 |
Center Coolant
|
| XYGPC20D10C | 10 | 48.5 |
Center Coolant
|
| XYGPC20D12C | 12 | 48.5 |
Center Coolant
|
| XYGPC20D14C | 14 | 48.5 |
Center Coolant
|
| XYGPC20D16C | 16 | 48.5 | Center Coolant |
| XYGPC20D18C | 18 | 48.5 | Center Coolant |
| XYGPC20D20C | 20 | 48.5 | Center Coolant |

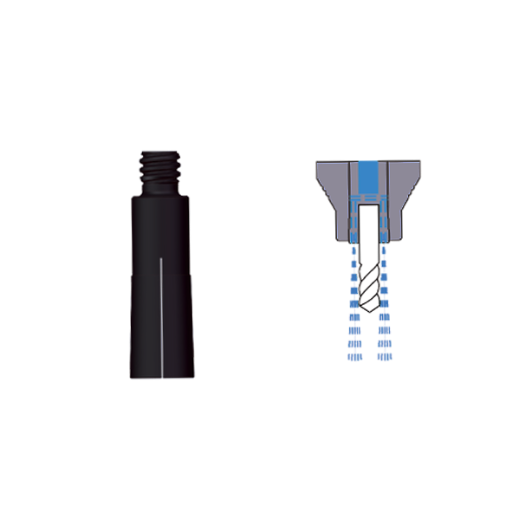

Side Coolant Delivery
| Model |
Ø (Clamping Handle Diameter |
Max. Clamping Depth | Coolant drainage |
| XYGPC20D04L |
4 |
66 | Side Coolant |
| XYGPC12006L | 6 | 66 | Side Coolant |
| XYGPC20D08L | 8 | 48.5 | Side Coolant |
| XYGPC20D10L | 10 | 48.5 | Side Coolant |
| XYGPC20D12L | 12 | 48.5 | Side Coolant |
| XYGPC20D14L | 14 | 48.5 | Side Coolant |
| XYGPC20D16L | 16 | 48.5 | Side Coolant |
| XYGPC20D18L | 18 | 48.5 | Side Coolant |
| XYGPC20D20L | 20 | 48.5 | Side Coolant |

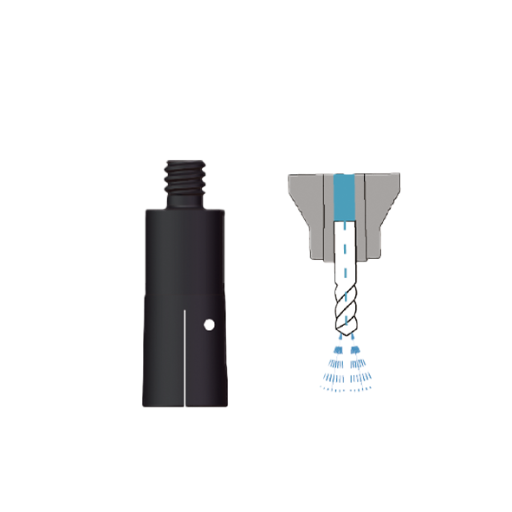

Center Coolant & Pin Delivery
| Model |
Ø (Clamping Handle Diameter) | Max. Clamping Depth | Pin | Coolant drainage |
| XYGPC20D06CLP | 6 | 66 | | Center Coolant |
| XYGPC20D08CLP | 8 | 48.5 | |
Center Coolant
|
| XYGPC20D10CLP | 10 | 48.5 | |
Center Coolant
|
| XYGPC20D12CLP | 12 | 48.5 | |
Center Coolant
|
| XYGPC20D14CLP | 14 | 48.5 | |
Center Coolant
|
| XYGPC20D16CLP | 16 | 48.5 | | Center Coolant |

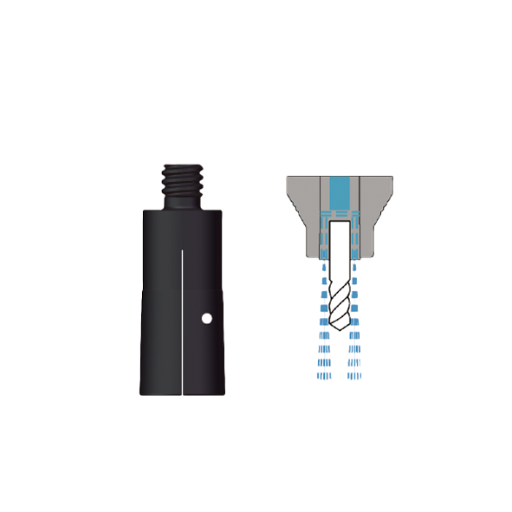

Side Coolant & Pin Delivery
| Model |
Ø (Clamping Handle Diameter |
Max. Clamping Depth | Pin | Coolant drainage |
| XYGPC20D06LLP | 6 | 66 | | Side Coolant |
| XYGPC20D08LLP | 8 | 48.5 | | Side Coolant |
| XYGPC20D10LLP | 10 | 48.5 | | Side Coolant |
| XYGPC20D12LLP | 12 | 48.5 | | Side Coolant |
| XYGPC20D14LLP | 14 | 48.5 | | Side Coolant |
| XYGPC20D16LLP | 16 | 48.5 | | Side Coolant |
