DIN6343

Spring Colle

Spring Collet

Spring Collet

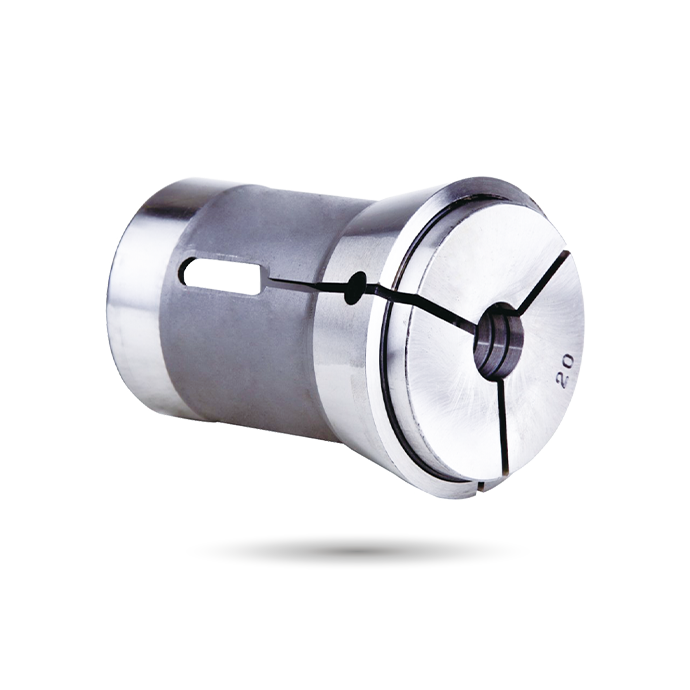

Steel spring collets are used primarily for second operation work were necessary to grip a short portion of the component.

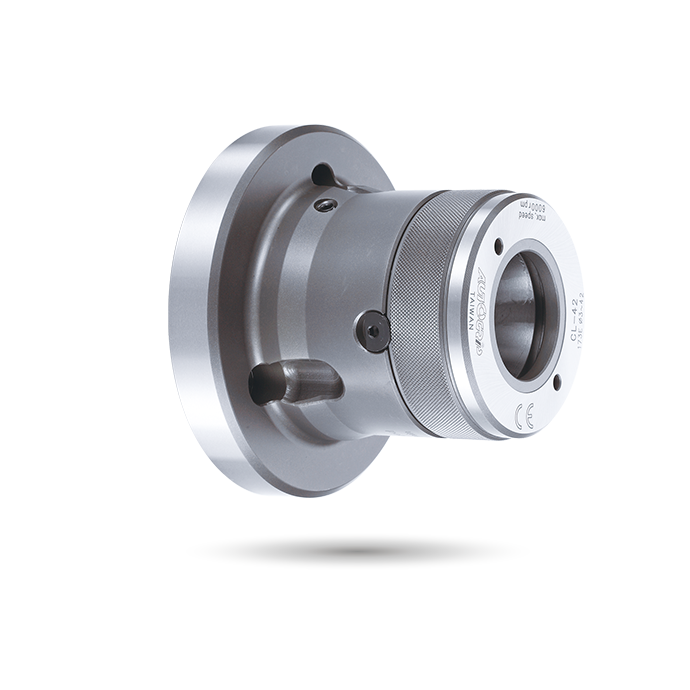

Compatible with CL, CL-A series chucks products.
Applicable to all kinds of lathes, hexagonal lathes.

Catalog Download

Specifications

Collet	Max. Chucking Capacity (mm) Round	Max. Chucking Capacity (mm) Hexagom	Max. Chucking Capacity (mm) Square	d	D	D1	L	Matching Collet Chuck
161E	3~26	4~22	4~18	32	45	34	75	CL-26, CL-26A4
163E	3~30	4~26	4~20	35	48	38	80	CL-30, CL-30A4
171E	3~36	6~32	6~26	42	55	42	94	CL-36, CL-36A5
173E	3~42	6~36	6~29	48	60	50	94	CL-42, CL-42A5, CL-42A6
177E	5~52	8~45	7~36	58	70	60	94	CL-52, CL-52A6
185E	5~60	8~52	7~42	66	84	73	110	CL-6017, CL-6022, CL-60A6, CL-60A8
193E	20~80	18~69	15~56	90	107	92	130	CL-80, CL-80A8

* Note：Collets chuck are conformed to DIN6343 Class2.

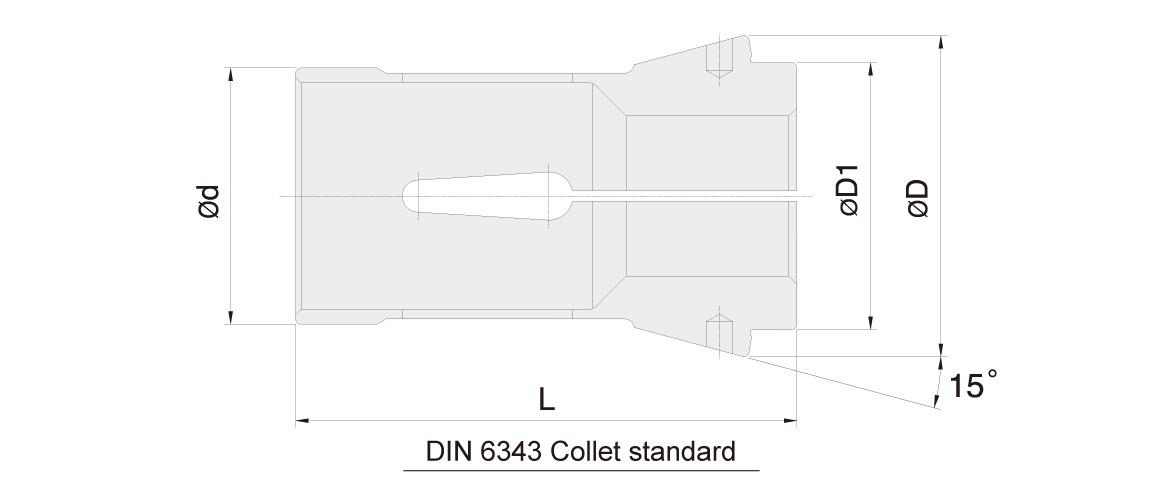

Dimensions

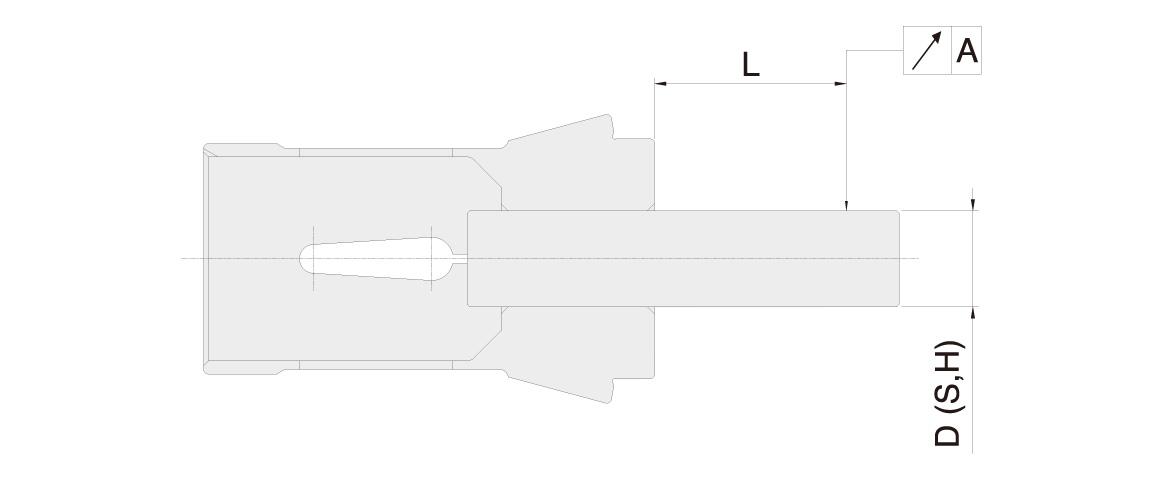

Test Bar D(S,H)	L mm	A DIN Class1	A DIN Class2
3.0~6.0	16	0.015	0.02
6.0~10	25	0.015	0.02
10.0~18.0	40	0.02	0.03
18.0~24.0	50	0.02	0.03
24.0~30.0	60	0.02	0.03
30.0~50.0	80	0.03	0.04
50.0~60.0	100	0.03	0.04

Turning Center

High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.

Related Applications

Machining Center

Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.

Other Applications

Special Purpose Machine

Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.
