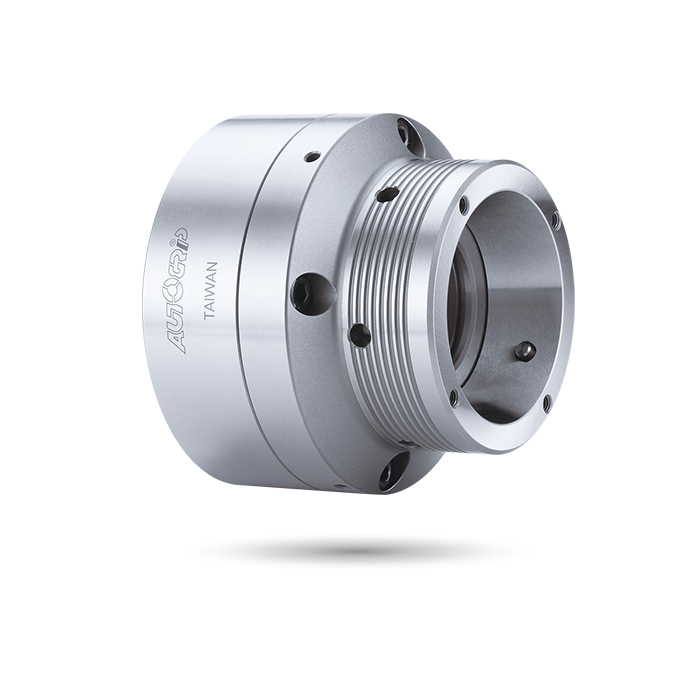

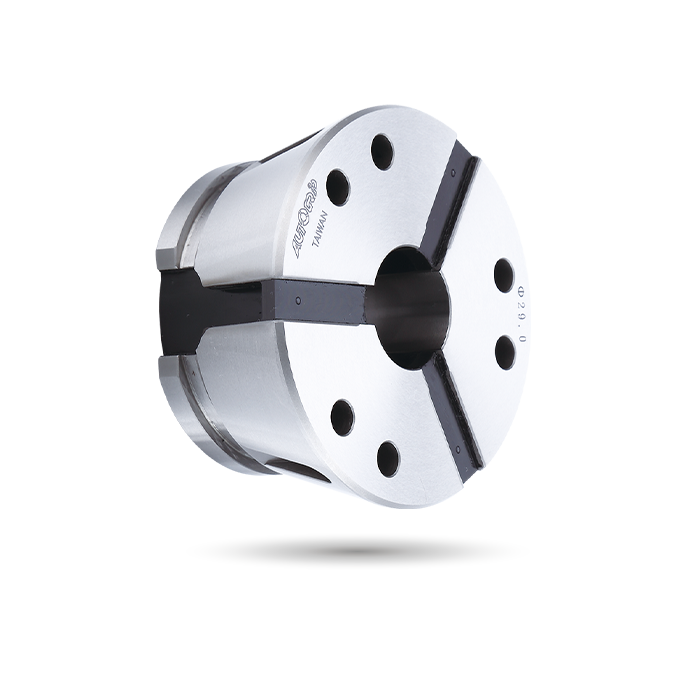

CBE/CBE-A

End stop
https://www.autogrip-machinery.com/web/image/product.template/85/image_1920?unique=06e4c57

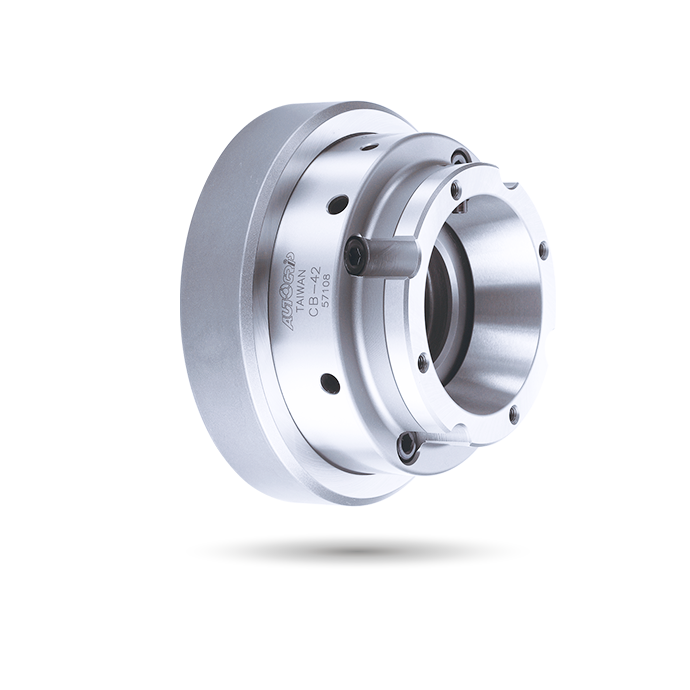

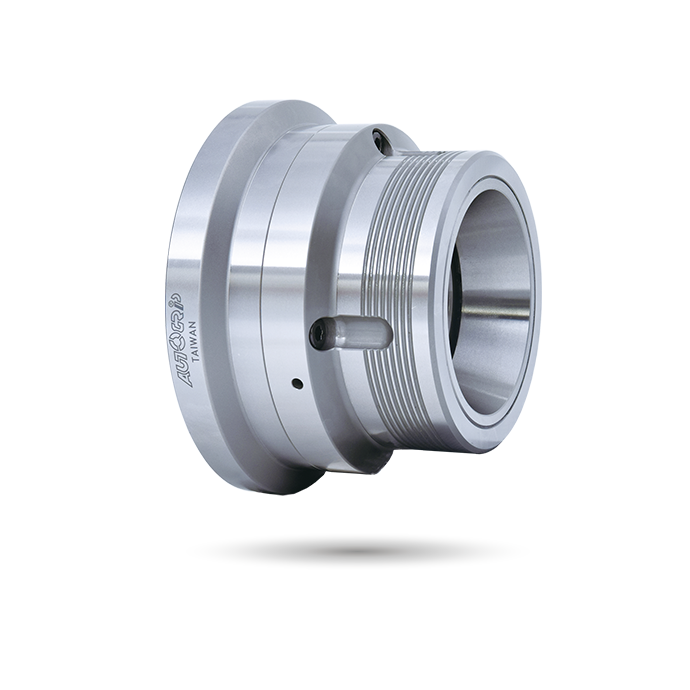

End stop Collet Chuck

End stop

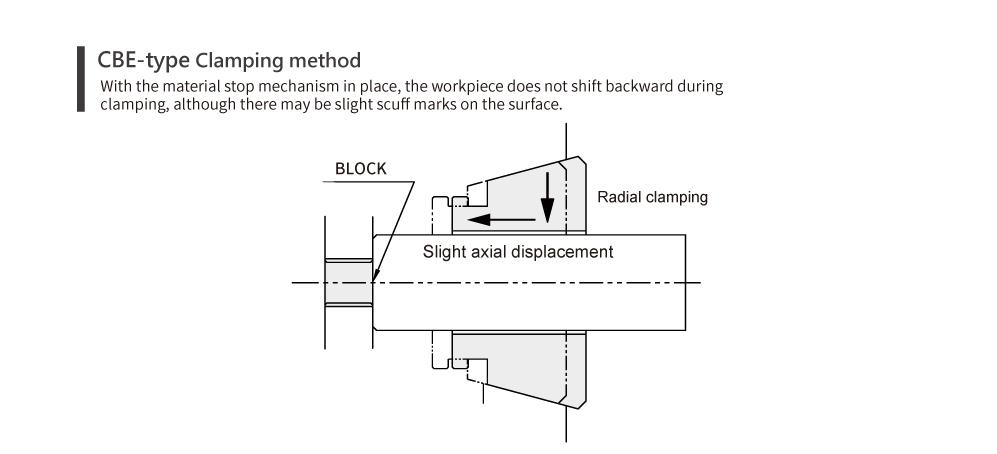

  • The pull-back positioning clamping, combined with the workpiece stop block mechanism, features radial clamping and axial fine-tuning torque, enabling precise positioning of the workpiece feeding length for enhanced length accuracy control.
  • The blocking block and dust cover can be swapped for versatile use and chip protection.

J is the hole diameter of blank draw nut.

K is the maximum thread specification and it could be customize.

 Catalog Download

This combination does not exist.


SpecificationsDimensions DownloadRelated Accessories


Specifications

ModelPlunger stroke
(mm)		Max. Chucking Capacity
Round
(mm)		Max. Chucking Capacity
Hexagom
(mm)		Max. Chucking Capacity
Square
(mm)		Max. D.B. pull
kN(kgf)		Max. clamping force
kN(kgf)		Max. speed
min-1(r.p.m.)		Weight
(kg)		Matching Stell ColletMatching cyl.Max. pressure
MPa(kgf/cm2)
CBE-42 4.5 4~42 7~36 7~30 34.3(3500) 78.4(8000) 7000 6 RG-42 TK-B846 2.8(28)
CBE-4212 4.5 4~42 7~36 7~30 34.3(3500) 78.4(8000) 7000 6 RG-42 TK-B846 2.8(28)
CBE-42A5 4.5 4~42 7~36 7~30 34.3(3500) 78.4(8000) 7000 6.3 RG-42 TK-B846 2.8(28)
CBE-42A6 4.5 4~42 7~36 7~30 34.3(3500) 78.4(8000) 7000 7.4 RG-42 TK-B846 2.8(28)
CBE-52 4.5 4~52 7~36 7~30 39.2(4000) 92.1(9400) 7000 6.9 RG-52 TK-A853 3.2(32)
CBE-5212 4.5 4~52 7~36 7~30 39.2(4000) 92.1(9400) 7000 6.7 RG-52 TK-A853 3.2(32)
CBE-5217 4.5 4~52 7~36 7~30 39.2(4000) 92.1(9400) 7000 8.9 RG-52 TK-A853 3.2(32)
CBE-52A5 4.5 4~52 7~36 7~30 39.2(4000) 92.1(9400) 7000 7.8 RG-52 TK-A853 3.2(32)
CBE-52A6 4.5 4~52 7~36 7~30 39.2(4000) 92.1(9400) 7000 8.3 RG-52 TK-A853 3.2(32)
CBE-65 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 8.6 RG-65 TS-866 3.0(30)
CBE-6514 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.3 RG-65 TS-866 3.0(30)
CBE-65A5 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 10.8 RG-65 TS-866 3.0(30)
CBE-65A6 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.5 RG-65 TS-866 3.0(30)
CBE-65A8 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.5 RG-65 TS-866 3.0(30)

​

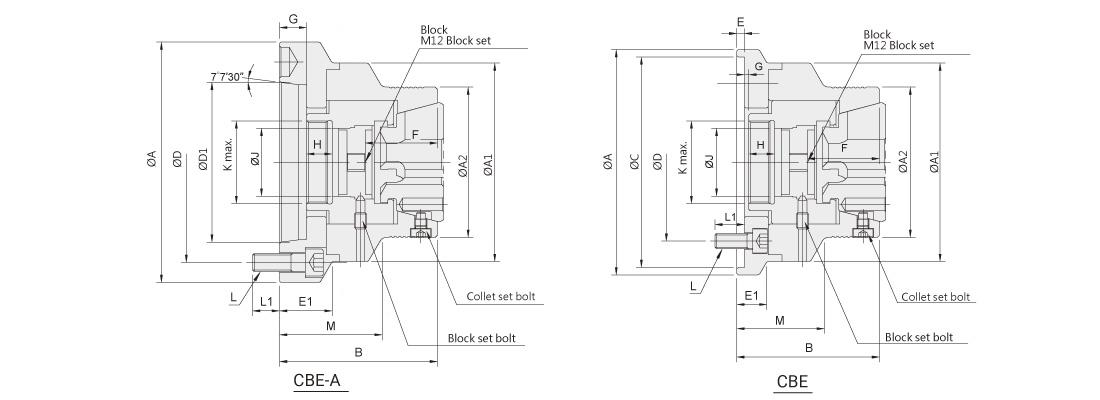

Dimensions

* Subject to technical changes.

Model-AA1A2BC(H6)DD1EE1FG max.G min.HJK max.LL1M
CBE-42-15013210095140104.8-520485.511745M55x24~M10x2519.558
CBE-4212-13213210095120100-5-485.511745M55x24~M10x2519.558
CBE-42A5132132100105-104.882.56--4820.5161745M55x24~M10x301668
CBE-42A6160132100105-133.4106.38-354820.5161745M55x24~M12x351868
CBE-52-15014010799140104.8-5-525.511756M60x24~M10x2014.560
CBE-5212-14014010799120100-5-525.511756M60x24~M10x2014.560
CBE-5217-180140107109170133.4-6-5214.5101756M60x24~M12x301870
CBE-52A5140140107109-104.882.56--5220.5161756M60x24~M10x301670
CBE-52A6160140107109-133.4106.37--5220.5161756M60x24~M12x351870
CBE-65-180157122114170133.4-624561510.517.568M75x24~M12x301872
CBE-6514-157157122116140104.8-6-561712.517.568M75x24~M10x301874
CBE-65A5157157122114-104.882.56--562116.517.568M75x24~M10x251672
CBE-65A6157157122112-133.4106.38--561914.517.568M75x24~M12x3518.570
CBE-65A8202157122116-171.4139.72-38562318.517.568M75x24~M16x352474
