CBD/CBD-A

Dead Length
https://www.autogrip-machinery.com/web/image/product.template/86/image_1920?unique=06e4c57

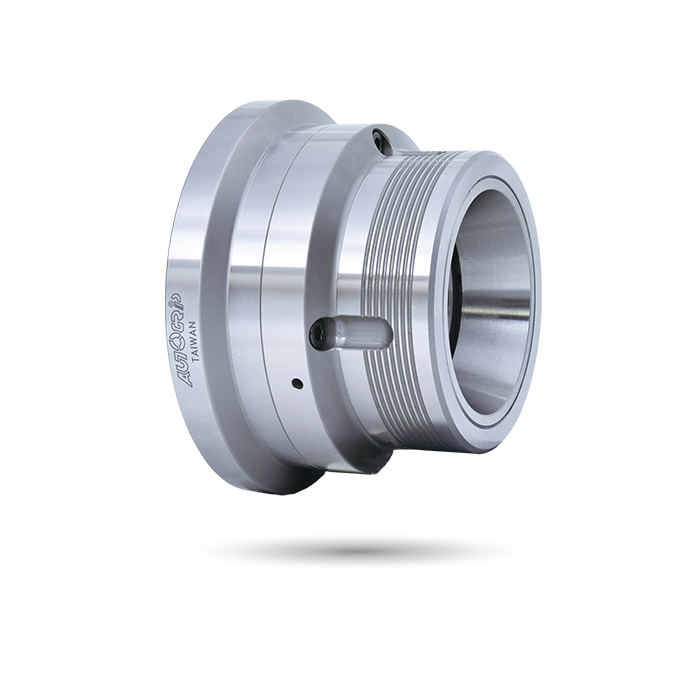

Dead Length Collet Chuck

Dead Length
  • The push-forward clamping, combined with a stop block mechanism, features radial clamping with zero radial displacement, enabling precise positioning of the workpiece feeding length for improved length accuracy control.
  • AUTOGRIP rubber tube clamping eliminates forward pushing, minimizing surface damage.
  • Interchangeable workpiece stopper and dust cover enable through-hole applications and chip protection, suitable for sub-spindle clamping, reducing tension and compression.

J is the hole diameter of blank draw nut.

K is the maximum thread specification and it could be customize.

 Catalog Download

This combination does not exist.


SpecificationsDimensions DownloadRelated Accessories


Specifications

ModelPlunger
stroke
(mm)		Max. Chucking
Capacity (mm)
Round		Max. Chucking
Capacity (mm)
Hexagom		Max. Chucking
Capacity (mm)
Square		Max. D.B.
pull kN
(kgf)		Max.
clamping
force kN
(kgf)		Max. speed
min-1
(r.p.m.)		Weight (kg)Matching Stell ColletMatching cyl.Max. pressure
MPa (kgf/cm2)
CBD-52 4.5 4~52 7~36 7~45 39.2(4000) 92.1(9400) 7000 7.3 RG-52 TK-A853 3.0(30)
CBD-5212 4.5 4~52 7~36 7~45 39.2(4000) 92.1(9400) 7000 7.1 RG-52 TK-A853 3.0(30)
CBD-5217 4.5 4~52 7~36 7~45 39.2(4000) 92.1(9400) 7000 10.9 RG-52 TK-A853 3.0(30)
CBD-52A5 4.5 4~52 7~36 7~45 39.2(4000) 92.1(9400) 7000 7.8 RG-52 TK-A853 3.0(30)
CBD-52A6 4.5 4~52 7~36 7~45 39.2(4000) 92.1(9400) 7000 9.1 RG-52 TK-A853 3.0(30)
CBD-65 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 8.6 RG-65 TS-866 2.7(27)
CBD-6514 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.3 RG-65 TS-866 2.7(27)
CBD-65A5 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 10.8 RG-65 TS-866 2.7(27)
CBD-65A6 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.5 RG-65 TS-866 2.7(27)
CBD-65A8 4.5 4~65 8~56 8~46 44.1(4500) 103(10500) 6000 9.5 RG-65 TS-866 2.7(27)

​



Dimensions

* Subject to technical changes.

Model-AA1A2BC(H6)DD1EE1FG max.G min.HJK max.LL1M
CBD-52-15014011699140104.8-5-5272.51756M60x24~M10x2014.557
CBD-5212-14014011699120100-5-5272.51756M60x24~M10x2014.557
CBD-5217-180140116109170133.4-6-521611.51756M60x24~M12x301867
CBD-52A5140140116109-104.882.56--522217.51756M60x24~M10x301667
CBD-52A6160140116109-133.4106.38--522217.51756M60x24~M12x351867
CBD-65-180157132112170133.4-6245415.51117.568M75x24~M12x301870
CBD-6514-157157132114140104.8-6-5417.51317.568M75x24~M10x301872
CBD-65A5157157132112-104.882.56--5421.51717.568M75x24~M10x251670
CBD-65A6157157132110-133.4106.38--5419.51517.568M75x24~M12x3518.568
CBD-65A8202157132114-171.4139.72-385423.51917.568M75x24~M16x352472



Download

Model 2D pdf 2D dwg 3D step
CBD-52


CBD-5212


CBD-5217


CBD-52A5


CBD-52A6


CBD-65


CBD-6514


CBD-65A5


CBD-65A6
CBD-65A8
