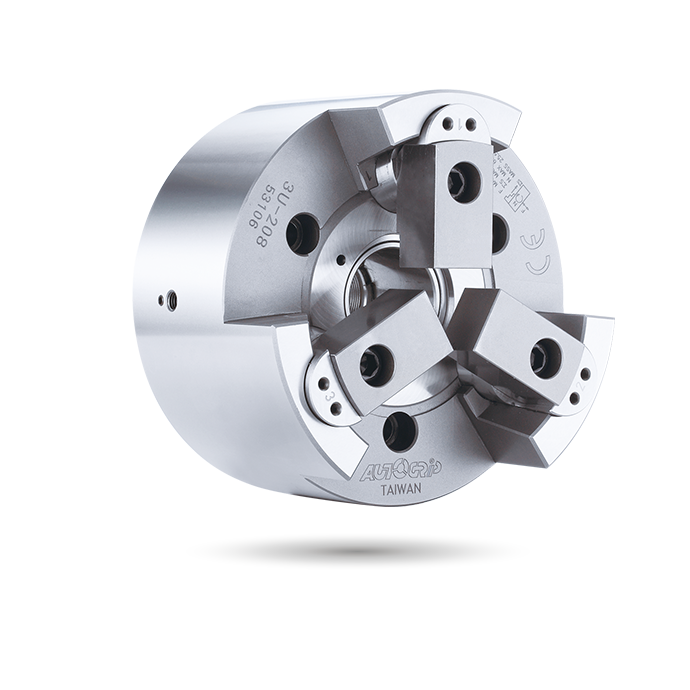

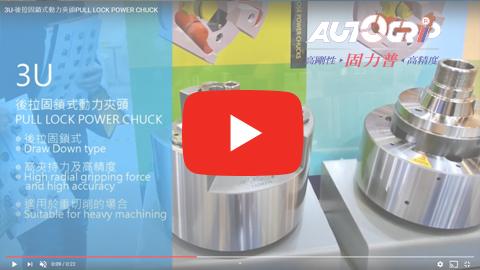

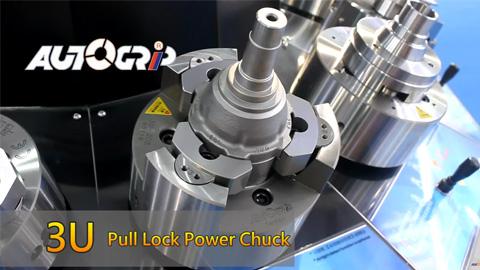

3U

Specifications

Model	Plunger stroke (mm)	Jaw stroke (Dia.)(mm)	Chucking Dia. max.(mm)	Chucking Dia. min.(mm)	Max. D.B. pull kN(kgf)	Max. clamping force kN(kgf)	Max. speed min^-1 (r.p.m.)	I kg‧m ²	Weight (kg)	Matching cyl.	Max. pressure MPa (kgf/cm²)
3U-203	4	2	42	14	5.8 (590)	16.7 (1700)	10000	0.001	1.8	RK-75(N)	1.6(16)
3U-204	6	3	60	10	10.0 (1020)	28.4 (2900)	8000	0.005	3.9	RK-75(N)	2.7(27)
3U-205	6	3	84	15	13.9 (1420)	39.7 (4050)	8000	0.012	6.8	RK-100(N)	2.0(20)
3U-206	10	5	105	24	17.9 (1830)	57.8 (5900)	7000	0.055	14.7	RK-100(N)	2.6(26)
3U-208	12	6	132	25	25.0 (2550)	80.0 (8150)	6000	0.14	25.5	RK-125(N)	2.2(22)
3U-210	10	5	163	34	31.0 (3160)	100.0 (10100)	4500	0.36	43.5	RK-125(N)	3.1(31)
3U-212	10	5	210	81	35.0 (3570)	100.0 (10100)	3600	0.68	63	RK-125(N)	3.1(31)

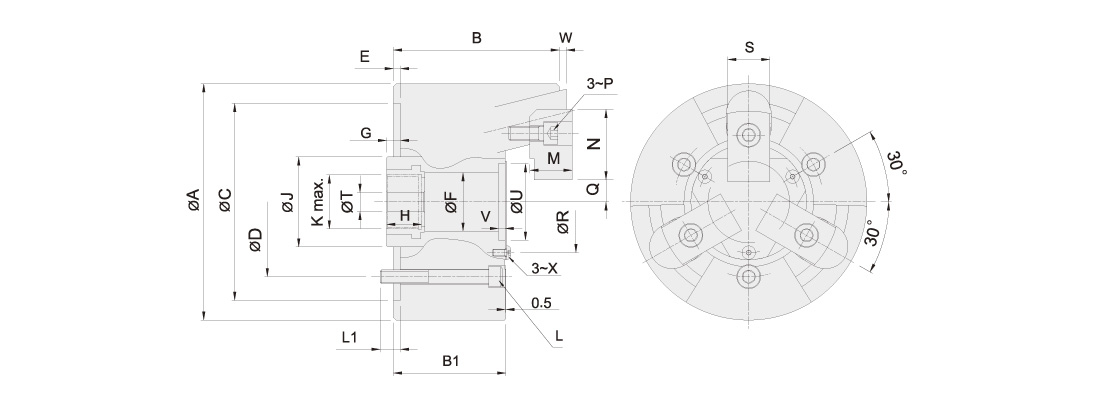

Model	A	B	B1	C(H6)	D	E	F	G max.	G min.	H	J	K	L	L1	M	N	P	Q max.	Q min.	R	S	T	U(H6)	V	W Max.	W Min.	X
3U-203	85	54.5	42	70	54	3.5	25	18	14	22	38	M20x1.5	3~M8	11	12	26	M5	7.5	6.5	38	15	10	32	3.5	2	-2	M3
3U-204	110	72.5	55	85	70.6	4	30	16	10	24.5	42	M24x1.5	3~M10	12	17	40	M6	10.75	9.25	46	20	10	38	4	3	-3	M4
3U-205	135	84.5	63	110	82.6	4	35	16	10	26	50	M28x1.5	3~M10	15	20	41.5	M8	13.25	11.75	55	24	10	45	5	3	-3	M5
3U-206	168	118	80	140	104.8	5	45	20	10	31	60	M38x1.5	3~M10	16.5	30	50	M10	15.75	13.25	72	30	17	58	6	5	-5	M5
3U-208	210	137	92	170	133.4	5	52	23	11	31	80	M48x2	3~M12	18	34	63	M12	16.25	13.25	82	35	17	68	6	5	-7	M6
3U-210	254	152	102	220	171.4	5	75	25	15	37	105	M68x2	3~M16	23	39	74	M14	20.75	18.25	107	40	17	93	6	5	-5	M8
3U-212	304	157	102	220	171.4	5	100	25	15	37	135	M92x2	3~M16	26	44	74	M14	44.25	41.75	130	40	17	114	6	5	-5	M10
