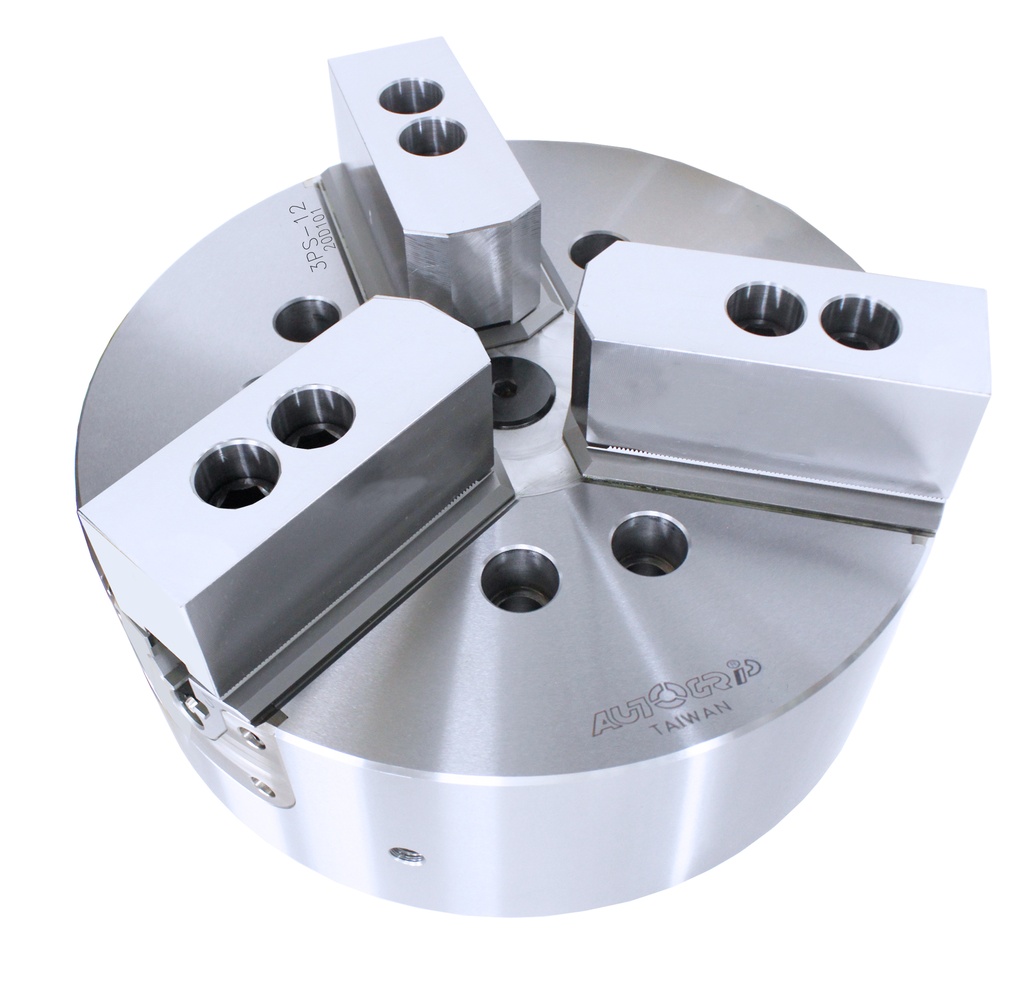

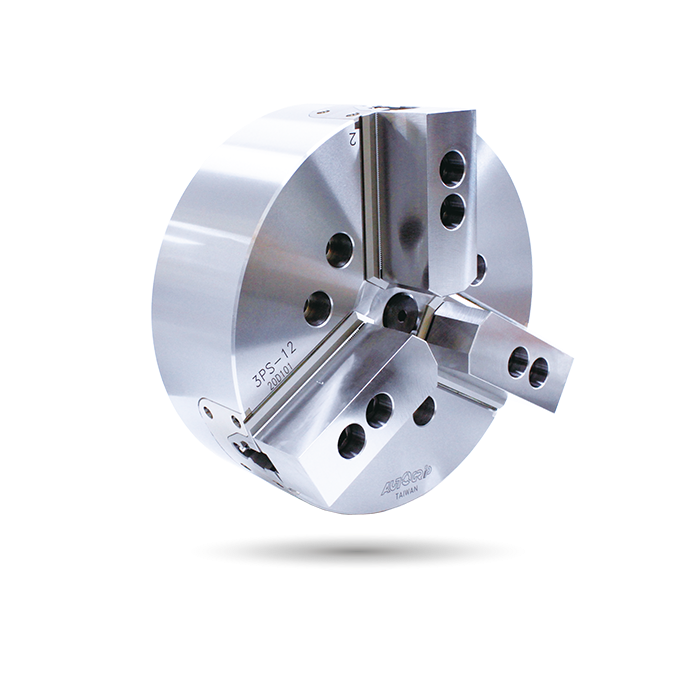

Specifications
| Model | Plunger stroke (mm) | Jaw stroke (Dia.) (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. D.B. pull kN (kgf) | Max. clamping force kN (kgf) | Max. speed min-1 (r.p.m.) | I kg‧m 2 | Weight (kg) | Matching cyl. | Max. pressure MPa (kgf/cm2) |
| 3PS-12 |
30 | 12.7 | 315 | 22 | 38.5 (3926) | 160 (16315) | 3360 | 0.84 | 67 | RK-150(N) RA-270 | 2.4(24.4) 0.7(7.4) |

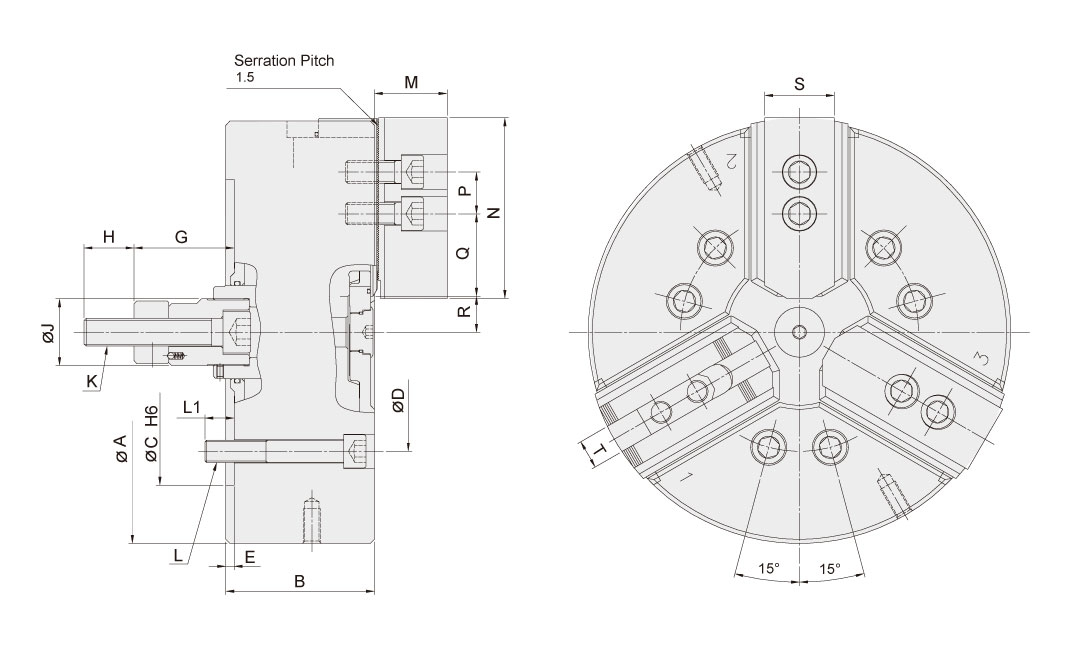

Dimensions
* Subject to technical changes.
| Model |
A | B | C | D | E | G max. | G min. | H | J | K max. | L | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T |
| 3PS-12 |
315 | 106 | 220 | 171.4 | 6 | 102 | 72 | 39 | 48 | M20x2.5 | 6~M16 | 22 | 52 | 130 | 30 | 87.25 | 46.75 | 27 | 20.65 | 50 | 21 |
