3P-2/3P-2A

Non-Thru-Hole | 3-Jaw

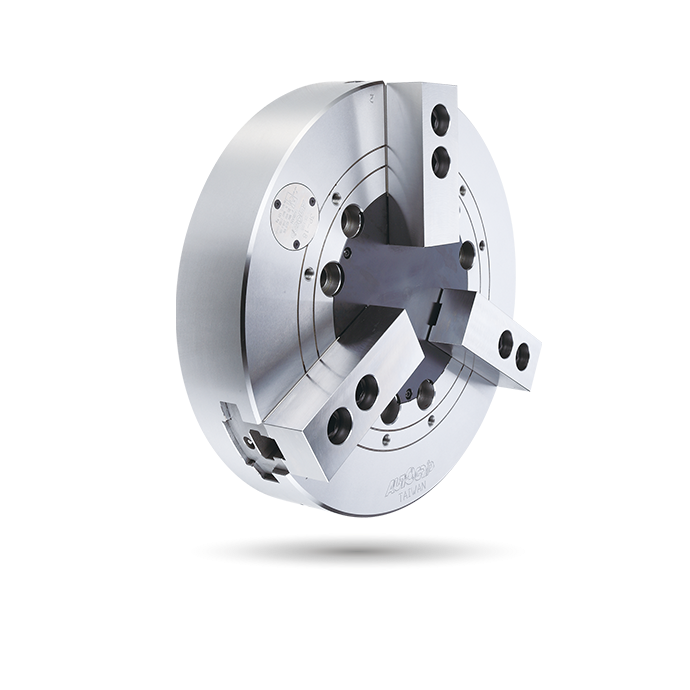

WEDGE-HOOK type 3-Jaw Power Chuck

Non-Thru-Hole | 3-JAW

WEDGE-HOOK type 3-jaw power chuck.
Matching surfaces of all parts hardened, ground and lubricated directly.
High rigidity and high repeatability precision.

Catalog Download

Specifications

Model	-	Plunger stroke (mm)	Jaw stroke (Dia.) (mm)	Chucking Dia. Max. (mm)	Chucking Dia. Min. (mm)	Max. D.B. pull kN kN (kgf)	Max. clamping force kN (kgf)	Max. speed min^-1(r.p.m.)	I kg‧m²	Weight (kg)	Weight (kg)	Matching cyl.	Max. pressure MPa(kgf/cm²)
3P-215	A8	35	16	381	50	82(8360)	249(25390)	3000	1.8	109.9	122.4	RH-200 RK-200(N)	2.8(28)
3P-215	A11	35	16	381	50	82(8360)	249(25390)	3000	1.8	109.9	116	RH-200 RK-200(N)	2.8(28)
3P-218	A11	35	16	450	60	82(8360)	249(25400)	2800	2.32	124	130	RH-200 RK-200(N)	2.8(28)
3P-221	A8	35	16	530	59	82(8360)	272.6(27800)	1900	4.9	177	200	RH-200 RK-201(N)	2.8(29)
3P-221	A11	35	16	530	59	82(8360)	272.6(27800)	1900	4.9	177	194	RH-200 RK-203(N)	2.8(31)
3P-224	A11	35	16	610	152	82(8360)	272.6(27800)	1750	7	230	246.28	RH-200 RK-205(N)	2.8(33)
3P-224	A15	35	16	610	152	82(8360)	272.6(27800)	1750	7	230	238.6	RH-200 RK-207(N)	2.8(35)

The dimensions and the specifications of 3P-2A are in the red data.

Dimensions

* Subject to technical changes.

MODEL	-	A	B	B	C	D	D1	D2	E	E1	G max.	G max.	G min.	G min.	H	J	K	L	L1	L1	M	N	P	Q max.	Q min.	R max.	R min.	S	T	U
3P-215	A8	381	114	141	300	235	139.72	171.4	6	33	104	71	69	36	55	60	M30x3.5	6~M20	30	24	63.3	165	43	51.25	18.25	77.5	69.5	62	25.5	6~M16
3P-215	A11	381	114	130	300	235	196.87	260	6	22	104	82	69	47	55	60	M30x3.5	6~M20	30	33	63.3	165	43	51.25	18.25	77.5	69.5	62	25.5	3~M10
3P-218	A11	450	114	130	300	235	196.87	260	6	22	92	70	57	35	55	60	M30x3.5	6~M20	35	33	63.3	165	43	52.75	18.25	108	100	62	25.5	3~M10
3P-221	A8	530	125	152	380	330.2	139.72	171.4	6	33	97	64	62	29	55	60	M30x3.5	6~M24	31	24	71	180	60	96.5	24.5	86	78	65	25	6~M16
3P-221	A11	530	125	146	380	330.2	196.87	235	6	27	97	70	62	35	55	60	M30x3.5	6~M24	31	28	71	180	60	96.5	24.5	86	78	65	25	6~M20
3P-224	A11	610	125	146	380	330.2	196.87	235	6	27	97	70	62	35	55	60	M30x3.5	6~M24	31	28	71	180	60	96.5	24.5	125	117	65	25	6~M20
3P-224	A15	610	125	146	380	330.2	285.78	330.2	6	27	97	70	62	35	55	60	M30x3.5	6~M24	31	34	71	180	60	96.5	24.5	125	117	65	25	3~M12

* The dimensions and the specifications of 3P-2A are in the orange data.

Download

Model	2D pdf	2D dwg	3D step
3P-215
3P-215A8
3P-215A11
3P-218
3P-218A11
3P-221
3P-221A8
3P-221A11
3P-224
3P-224A11
3P-224A15
