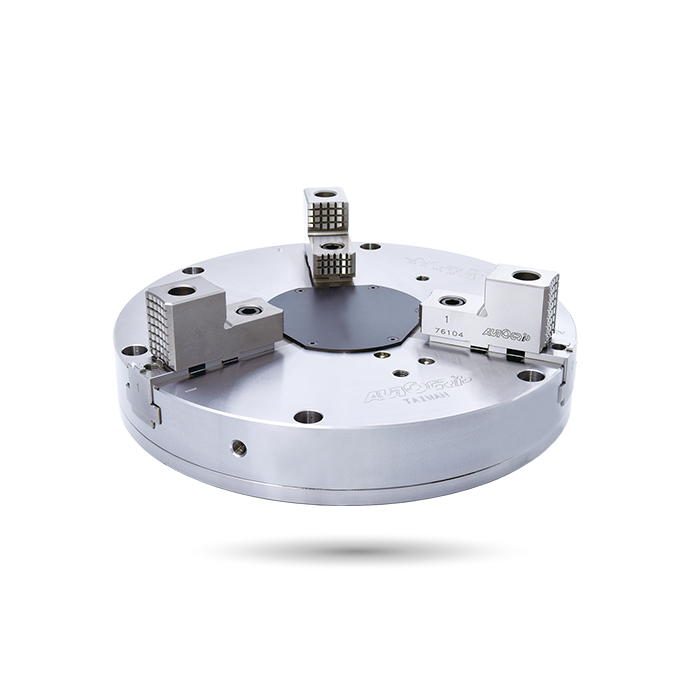

Specifications
| Model | Jaw stroke (Dia.) (mm) | Chucking Dia. Max.(mm) | Chucking Dia. Min.(mm) | Max. allowable torque N．m (kgf．m) | Max. clamping force kN (kgf) | Max. speed min⁻¹(r.p.m.) | Weight (kg) |
| 3MF-16 | 60 | 350 | 95 | 175 (17.8) | 59 (6000) | 1450 | 66.9 |
| 3MF-20 |
80 | 450 | 135 | 170 (17.3) | 71.2 (7300) | 1150 | 121 |
Dimensions
* Subject to technical changes.
| Model |
A | B | C(H6) | D | E | F | G | H | J(H7) | K | L | L1 | M | N | P1 | P2 | P3 | Q max. | Q min. | R max. | R min. | S | T(h8) | U | V |
| 3MF-16 | 400 | 80 | 140 | 375 | 10 | 135 | ☐ 14 | 27 | 19.03 | 4~M12 | 6~M12 | 23 | 60 | 148.5 | 27.16 | 65 | 112.5 | 184.5 | 164 | 103 | 62 | 40 | 12.7 | 15 | 28 |
| 3MF-20 |
500 | 85 | 160 | 465 | 12 | 155 | ☐ 19 | 38.1 | 19.03 | 4~M16 | 6~M16 | 23 | 80 | 192.5 | 29.5 | 76.2 | 135 | 254 | 214 | 139.7 | 99.7 | 50 | 12.7 | 15° | 40 |
