2P/2P-A

Non-Thru-Hole | 2-Jaw

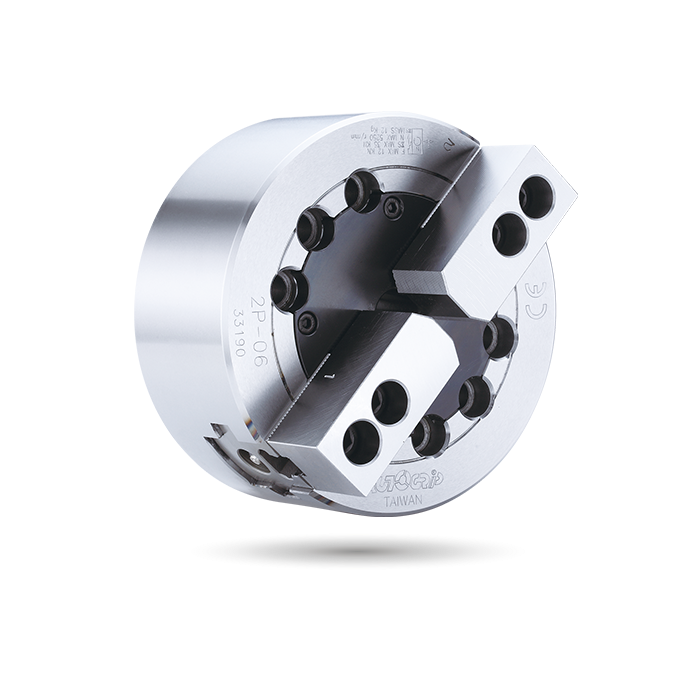

WEDGE-HOOK type Two Jaw Power Chuck

Non-Thru-Hole | Two Jaw Chuck

WEDGE-HOOK type two jaw power chuck.
Matching surfaces of all parts hardened, ground and lubricated directly.
High rigidity and high repeatability precision.

Catalog Download

Specifications

Model	-	Plunger stroke (mm)	Jaw stroke (Dia.) (mm)	Chucking Dia. Max. (mm)	Chucking Dia. Min. (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN (kgf)	Max. speed min^-1 (r.p.m.)	I kg‧m ²	Weight (kg)	Weight (kg)	Matching cyl.	Max. pressure MPa (kgf/cm²)
2P-04	-	15	6.9	110	5	5.3 (540)	14.7 (1500)	6000	0.01	3.8	-	RK-75(N) RA-130	1.5(15) 0.4(4)
2P-05	-	15	6.9	135	14	5.3 (540)	16.7 (1700)	5500	0.02	5.8	-	RK-75(N) RA-130	1.5(15) 0.4(4)
2P-06	A5	20	9.2	165	14	12 (1220)	35 (3570)	5250	0.04	12	13	RK-100(N) RA-170	1.7(17) 0.4(4)
2P-08	A5	21	9.7	210	17	16.5 (1680)	50 (5100)	4750	0.13	22	26	RK-125(N) RA-220	1.5(15) 0.4(4)
2P-08	A6	21	9.7	210	17	16.5 (1680)	50 (5100)	4750	0.13	22	25	RK-125(N) RA-220	1.5(15) 0.4(4)
2P-10	A6	25	8.8	254	22	19.4 (1980)	71.5 (7300)	4000	0.29	33	42	RK-125(N) RA-220	1.8(18) 0.4(4)
2P-10	A8	25	8.8	254	22	19.4 (1980)	71.5 (7300)	4000	0.29	33	40	RK-125(N) RA-220	1.8(18) 0.4(4)
2P-12	A8	30	10.5	304	22	27.4 (2800)	103.9 (10600)	3360	0.70	57	61	RK-150(N)	1.7(17)
2P-15	A11	35	16	381	50	54.9 (5600)	164.6 (16800)	3000	1.70	96	103	RK-200(N)	1.9(19)

*The 2P-A's dimensions and specifications are shown in the orange data.

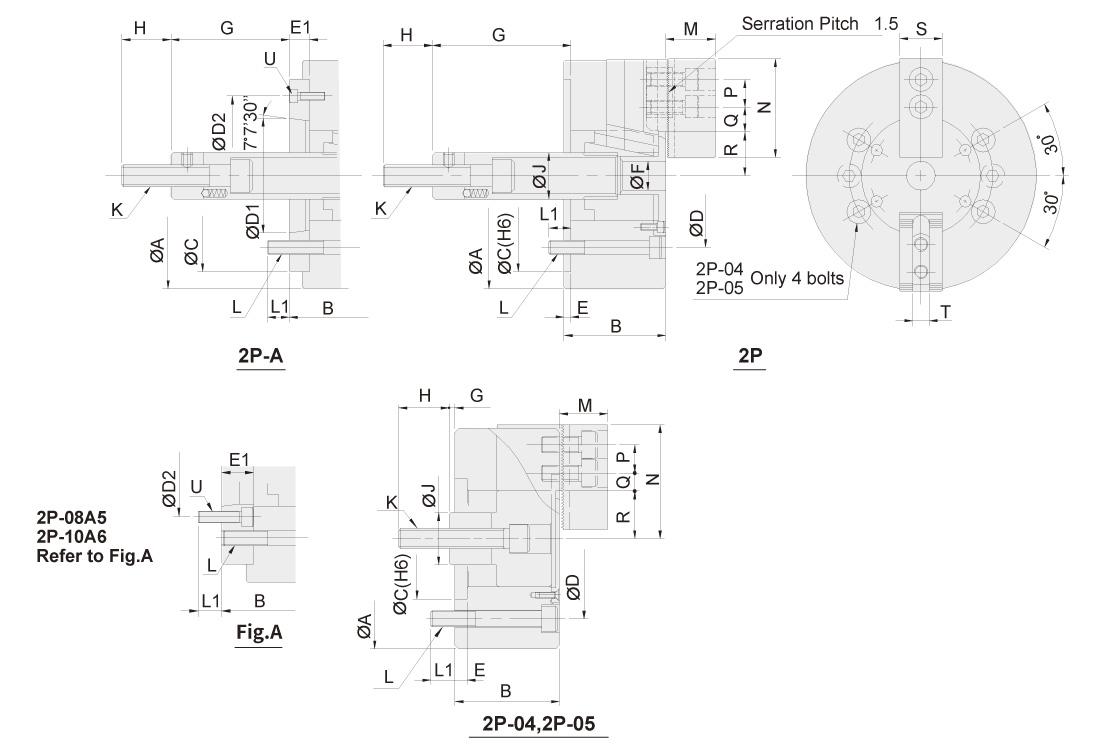

Dimensions

* Subject to technical changes.

Model	-	A	B	B	C	D	D1	D2	E	E1	F	G max.	G max.	G min.	G min.	H	J	K	L	L1	L1	M	N	P	Q max.	Q min.	R max.	R min.	S	T	U
2P-04	-	110	52	-	60	80	-	-	6	-	-	18	-	3	-	25	26	M10x1.5	4~M8	12	-	24	52	14	11.3	8.3	23.3	20.15	23	10	-
2P-05	-	135	55	-	80	100	-	-	7	-	-	9	-	-6	-	35	28	M12x1.75	4~M8	14	-	31	62	14	13.5	6	30.4	26.95	25	10	-
2P-06	A5	165	74	84	140	104.8	82.56	116	5	15	21	102.6	87.6	82.62	67.6	35	34	M16x2	6~M10	14	14	37	73	20	18.25	9.25	38.25	33.65	31	12	3~M6
2P-08	A5	210	85	103	170	133.4	82.56	104.8	5	23	25	127	104	106	83	36	38	M20x2.5	6~M12	20	17	38	95	25	22.3	11.8	46.3	41.45	35	14	6~M10
2P-08	A6	210	85	97	170	133.4	106.38	150	5	17	25	127	110	106	89	36	38	M20x2.5	6~M12	20	18	38	95	25	22.3	11.8	46.3	41.45	35	14	3~M6
2P-10	A6	254	89	109	220	171.4	106.38	133.4	5	25	34	158	133	133	108	36	45	M20x2.5	6~M16	18	18	43	110	30	30.8	11.3	51.1	46.7	40	16	6~M12
2P-10	A8	254	89	102	220	171.4	139.72	190	5	18	34	158	140	133	115	36	45	M20x2.5	6~M16	18	25	43	110	30	30.8	11.3	51.1	46.7	40	16	6~M8
2P-12	A8	304	106	118	220	171.4	139.72	190	6	18	34	163	145	133	115	36	50	M20x2.5	6~M16	18	25	51	130	30	48.5	12.5	-	-	50	18/21	6~M8
2P-15	A11	381	114	130	300	235	196.87	260	6	22	-	104	82	69	47	55	60	M30x3.5	6~M20	30	33	63	165	43	48.8	23.3	77.5	69.5	62	25.5	3~M10

*The 2P-A's dimensions and specifications are shown in the orange data.

Download

Model	2D pdf	2D dwg	3D step
2P-04
2P-05
2P-06
2P-06A5
2P-08
2P-08A5
2P-08A6
2P-10
2P-10A6
2P-10A8
2P-12
2P-12A8
2P-15
2P-15A11
